2711P-B12C4A2

Description: Panelview Plus 1250 Touchscreen/Keypad 12.1 in Color Display Ethernet, RS-232, and two USB AC Power Logic Module with 128MB
In Stock Ships Today
Request a quote for 2711P-B12C4A2

Description: Panelview Plus 1250 Touchscreen/Keypad 12.1 in Color Display Ethernet, RS-232, and two USB AC Power Logic Module with 128MB

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via DHL, UPS, Fedex, and TNT
Repairs: We offer repair service for the 2711P-B12C4A2.
Exchange: Exchange credit for your defective unit available.

To Speak to a sales representative for pricing & lead time:

phone

International
919-205-4392

Rated 5 with 11 reviews

    Technical Specifications for 2711P-B12C4A2

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.2711P-B12C4A2
Product LinePanelview Plus 1250
Display Size12.1 inches
Input TypeTouchscreen and Keypad
Display TypeFull Color
CommunicationSerial or Ethernet
Input Power85-264 Volts AC
Memory128 Megabytes
Shipping Dimensions11.12 x 16.36 x 2.17 inches
SoftwareFactoryTalk
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 2711P-B12C4A2 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 2711P-B12C4A2 units instead of migration.

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.2711P-B12C4A2
Product LinePanelview Plus 1250
Display Size12.1 inches
Input TypeTouchscreen and Keypad
Display TypeFull Color
CommunicationSerial or Ethernet
Input Power85-264 Volts AC
Memory128 Megabytes
Shipping Dimensions11.12 x 16.36 x 2.17 inches
SoftwareFactoryTalk
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 2711P-B12C4A2 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 2711P-B12C4A2 units instead of migration.

s

About 2711P-B12C4A2

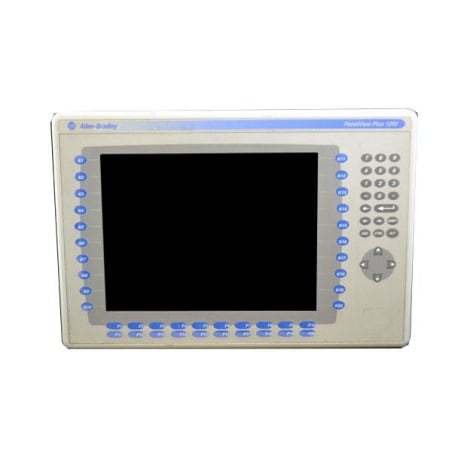

The Allen-Bradley 2711P-B12C4A2 is a PanelView Plus 1250 series AC-powered terminal manufactured by Rockwell Automation that is equipped with a 12.1-inch full-color thin-film transistor (TFT) display with a keypad and touchscreen input and a real-time clock. The entire display of this terminal measures 9.7 x 7.2 inches and has a resolution of 800 x 600. The typical luminance of the 2711P-B12C4A2 terminal is 300 cd/m^2 Nits and the backlight installed has an average life of 50,000 hours. The touchscreen input of the terminal uses an analog-resistive screen with an actuation rating of about 1 million presses. The keypad input of the 2711P-B12C4A2 terminal is made up of navigation keys, numeric keys, and function keys. The function keys range from F1 to F20 and from K1 to K20. Without a communication module, the terminal has approximate measurements of 11.12 x 16.36 x 2.18 inches and a weight of 3.4 kg or 7.6 lbs.



Found on the 2711P-B12C4A2 terminal is a CE Logic module with 128 MB of storage space, as well as Ethernet and RS-232 communication ports and 2 USB ports. This terminal is also equipped with 1 CompactFlash Type 1 port and with 1 PCI, 3.3/5V 32-bit port. The processor used on all PanelView Plus 1500 terminals, such as the 2711P-B15C15A6 AC terminal, is an x86, Intel Celeron, 650 MHz processor and it has an onboard storage capacity of 128 MB and it uses a FAT16 file system.



The AC input voltage of the 2711P-B12C4A2 terminal is 85-264V AC and its line frequency is 47-63 Hz. It also has an operating vibration of 2 g peak at 57-500 Hz and an operating shock of 15 g peak at 11 ms. The typical power consumption of the AC terminal is 65 VA, while its maximum power consumption is 160V A. The 2711P-B12C4A2 also operates at a temperature of 32-122 ºF and it can be stored at a temperature of -13-158 ºF. This terminal has a non-condensing relative humidity range between 5 and 95% and it has a heat dissipation is 240 BTU/hr.

Repair Services for 2711P-B12C4A2

Type Lead Time Price Action
Repair Service 2-4 weeks $2187.05cartAdd to Cart

Our highly skilled technicians can repair your 2711P-B12C4A2. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Revisions for 2711P-B12C4A2

Please refer to the manual for more information about the 2711P-B12C4A2 such as the wiring diagrams, data sheets, firmware information and migration or obsolescence details.

Revision Part # Also Known as Availability
2711P-B12C4A2/A, Series A, Rev A Request Quote
2711P-B12C4A2X
2711P-B12C4A2/X, Series X, Rev X Request Quote
Common misspellings:
  • 27l1P-B12C4A2
  • 271lP-B12C4A2
  • 2711P-812C4A2
  • 2711P-Bl2C4A2
  • 2711P-B12CAA2
  • 2711PB12C4A2

Dimensions For 2711P-B12C4A2

Size
Input Type
Panel Cutout Height in mm
Panel Cutout Width in mm
Terminal Height in mm
Terminal Width in mm
Terminal Overall Depth in mm
Terminal Mounted Depth in mm

Dimensions For 2711P-B12C4A2

Resolutions For 2711P-B12C4A2

Size 12.1 inch (1250 color)
Input Type Keypad or Keypad/ Touch
Display Type Color active-matrix TFT
Display Size (Diagonal) 12.1 in.
Viewing Area 246 x 184 mm (9.7 x 7.2 in.)
Display Resolution 800 x 600, 18-bit color graphics
Typical Brightness 300 cd/m2 (Nits)
Technical Specifications
ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.2711P-B12C4A2
Product LinePanelview Plus 1250
Display Size12.1 inches
Input TypeTouchscreen and Keypad
Display TypeFull Color
CommunicationSerial or Ethernet
Input Power85-264 Volts AC
Memory128 Megabytes
Shipping Dimensions11.12 x 16.36 x 2.17 inches
SoftwareFactoryTalk
Product Lifecycle Status*Discontinued/Obsolete
ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.2711P-B12C4A2
Product LinePanelview Plus 1250
Display Size12.1 inches
Input TypeTouchscreen and Keypad
Display TypeFull Color
CommunicationSerial or Ethernet
Input Power85-264 Volts AC
Memory128 Megabytes
Shipping Dimensions11.12 x 16.36 x 2.17 inches
SoftwareFactoryTalk
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 2711P-B12C4A2 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 2711P-B12C4A2 units instead of migration.

About

The Allen-Bradley 2711P-B12C4A2 is a PanelView Plus 1250 series AC-powered terminal manufactured by Rockwell Automation that is equipped with a 12.1-inch full-color thin-film transistor (TFT) display with a keypad and touchscreen input and a real-time clock. The entire display of this terminal measures 9.7 x 7.2 inches and has a resolution of 800 x 600. The typical luminance of the 2711P-B12C4A2 terminal is 300 cd/m^2 Nits and the backlight installed has an average life of 50,000 hours. The touchscreen input of the terminal uses an analog-resistive screen with an actuation rating of about 1 million presses. The keypad input of the 2711P-B12C4A2 terminal is made up of navigation keys, numeric keys, and function keys. The function keys range from F1 to F20 and from K1 to K20. Without a communication module, the terminal has approximate measurements of 11.12 x 16.36 x 2.18 inches and a weight of 3.4 kg or 7.6 lbs.



Found on the 2711P-B12C4A2 terminal is a CE Logic module with 128 MB of storage space, as well as Ethernet and RS-232 communication ports and 2 USB ports. This terminal is also equipped with 1 CompactFlash Type 1 port and with 1 PCI, 3.3/5V 32-bit port. The processor used on all PanelView Plus 1500 terminals, such as the 2711P-B15C15A6 AC terminal, is an x86, Intel Celeron, 650 MHz processor and it has an onboard storage capacity of 128 MB and it uses a FAT16 file system.



The AC input voltage of the 2711P-B12C4A2 terminal is 85-264V AC and its line frequency is 47-63 Hz. It also has an operating vibration of 2 g peak at 57-500 Hz and an operating shock of 15 g peak at 11 ms. The typical power consumption of the AC terminal is 65 VA, while its maximum power consumption is 160V A. The 2711P-B12C4A2 also operates at a temperature of 32-122 ºF and it can be stored at a temperature of -13-158 ºF. This terminal has a non-condensing relative humidity range between 5 and 95% and it has a heat dissipation is 240 BTU/hr.

Repairs
Type Lead Time Price Action
Repair Service 2-4 weeks $2187.05cartAdd to Cart

Our highly skilled technicians can repair your 2711P-B12C4A2. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Type Lead Time Price Action
Repair Service 2-4 weeks $2187.05cartAdd to Cart

Our highly skilled technicians can repair your 2711P-B12C4A2. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Revisions

Please refer to the manual for more information about the 2711P-B12C4A2 such as the wiring diagrams, data sheets, firmware information and migration or obsolescence details.

Revision Part # Also Known as Availability
2711P-B12C4A2/A, Series A, Rev A Request Quote
2711P-B12C4A2X
2711P-B12C4A2/X, Series X, Rev X Request Quote

Common misspellings:
  • 27l1P-B12C4A2
  • 271lP-B12C4A2
  • 2711P-812C4A2
  • 2711P-Bl2C4A2
  • 2711P-B12CAA2
  • 2711PB12C4A2
PDF
Resolutions

Resolutions For 2711P-B12C4A2

Size 12.1 inch (1250 color)
Input Type Keypad or Keypad/ Touch
Display Type Color active-matrix TFT
Display Size (Diagonal) 12.1 in.
Viewing Area 246 x 184 mm (9.7 x 7.2 in.)
Display Resolution 800 x 600, 18-bit color graphics
Typical Brightness 300 cd/m2 (Nits)
