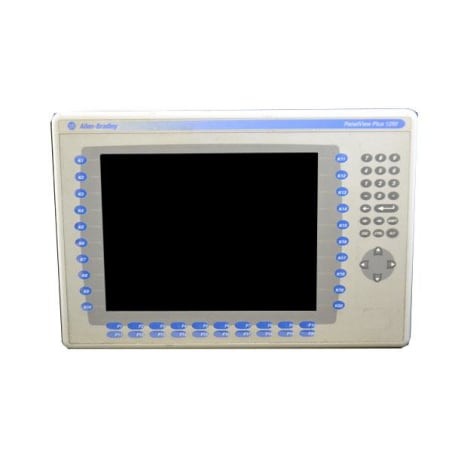

Allen Bradley Panelview Plus 1250 2711P-B12C6A7X

Product image is representative; revision or series may vary. Contact us to request a specific version.

2711P-B12C6A7X

|
Need a Specific Revision?

The 2711P-B12C6A7X is specified as an operator interface terminal within the Allen Bradley's Panelview Plus 1250 range. This HMI features a full-color TFT LCD display with a diagonal measurement of 12.1 inches, designed to function efficiently under varying conditions.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 2711P-B12C6A7X

ManufacturerAllen Bradley
Product TypeOperator Interface Terminal (HMI)
Product LinePanelview Plus 1250
Part Number2711P-B12C6A7X
Weight32.00 lbs (14.51 kg)
Operating Temperature0 to 55 °C (32 to 131 °F)
SD Card SlotSecure Digital slot for 1784-SDx cards
Communication PortsDH+, DH-485, RIO, RS-232, Ethernet, USB, PCI
Input Voltage85–264 Volts AC
Power ConsumptionApprox. 50 VA max
Backlight TypeReplaceable CCFL (Cold Cathode Fluorescent Lamp)
Input MethodResistive touchscreen and integrated keypad
Display TypeFull-color TFT LCD
Display Size12.1 inches (diagonal)
Vibration Tolerance2 g up to 2000 Hz
Shock Resistance15 g (operating), 30 g (non-operating)
Relative Humidity5% to 95% non-condensing
Enclosure RatingNEMA Type 12, 13, 4X (indoor use only); IEC IP54/IP65
Storage Temperature-20 to 70 °C (–4 to 158 °F)
View as PDF
Request a Repair

The Allen Bradley 2711P-B12C6A7X is an advanced operator interface terminal (HMI) tailored for industrial applications. This unit showcases a full-color TFT LCD display, measuring 12.1 inches diagonally, providing clear graphics for user interaction. The device is designed to accommodate a wide input voltage range, operating efficiently between 85 and 264 volts AC.

It functions effectively in operational temperatures ranging from 0 to 55 °C (32 to 131 °F), with relative humidity tolerance between 5% and 95% under non-condensing conditions. Storage conditions are also flexible, rated for temperatures from -20 to 70 °C (-4 to 158 °F). The terminal is built to endure challenging environments, featuring a vibration tolerance of 2 g and a shock resistance of 15 g when in operation and 30 g when not operational.

The 2711P-B12C6A7X integrates an SD card slot compatible with 1784-SDx cards, allowing for efficient data storage and transfer. Communication is enabled through various ports including DH+, DH-485, RIO, RS-232, Ethernet, USB, and PCI, ensuring multiple connectivity options. User interaction is facilitated via a resistive touchscreen alongside an integrated keypad, offering versatility in input methods. Moreover, it utilizes a replaceable CCFL backlight for enhanced visibility, which is crucial for operation in diverse lighting conditions. The terminal is housed in an enclosure rated NEMA Type 12, 13, 4X for indoor use, and meets IEC IP54/IP65 specifications.
