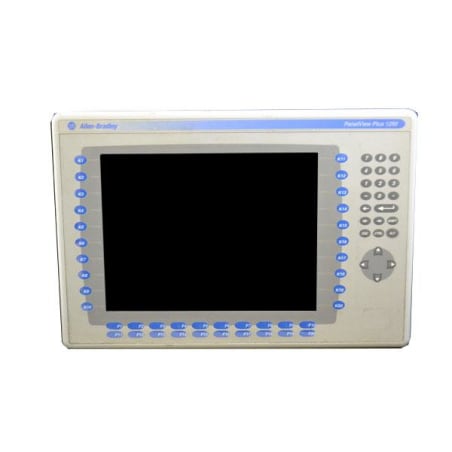

Allen Bradley Panelview Plus 1250 2711P-B12C6D6X

Product image is representative; revision or series may vary. Contact us to request a specific version.

2711P-B12C6D6X

|
Need a Specific Revision?

The 2711P-B12C6D6X is an HMI terminal from the Allen Bradley Panelview Plus 1250 series. It boasts a 12.1-inch TFT color LCD display with a resolution of 800 x 600 pixels, providing clear visuals. This unit operates within a voltage range of 18 to 32 volts DC and is equipped with multiple communication ports for integration into various networks.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 2711P-B12C6D6X

ManufacturerAllen Bradley
Product TypeOperator Interface Terminal (HMI)
Product LinePanelview Plus 1250
Part Number2711P-B12C6D6X
Weight32.00 lbs (14.51 kg)
Memory Capacity128 MB RAM, 64 MB flash memory
Communication PortsDH+, DH-485, RIO, RS-232, Ethernet, USB Type A and B
Modular ArchitectureIntegrated logic module with multi-protocol support
Display Size12.1 inches (diagonal)
Display TypeTFT color LCD with 18-bit color depth
ResolutionSVGA, 800 × 600 pixels
Input MethodAnalog resistive touchscreen and integrated keypad
Backlight TypeField-replaceable LED, rated for 50,000 hours
Input Voltage18-32 Volts DC
Power ConsumptionApprox. 50 VA max
Vibration Tolerance2 g up to 2000 Hz
Shock Resistance- 15 g (operating)
Relative Humidity5% to 95% non-condensing
Temperature- Operating: 0 to 55 °C (32 to 131 °F)
View as PDF
Request a Repair

The Allen Bradley 2711P-B12C6D6X operator interface terminal is a part of the Panelview Plus 1250 series, crafted for effective human-machine interaction in industrial applications. Featuring a diagonal display size of 12.1 inches, it utilizes a TFT color LCD technology with an 18-bit color depth. The screen resolution measures SVGA at 800 x 600 pixels, allowing for detailed graphics and information display.

This terminal is designed with a memory capacity comprising 128 MB of RAM and 64 MB of flash memory, facilitating the storage and retrieval of necessary operating data. The unit's modular architecture includes an integrated logic module that enables support for multiple communication protocols. It is equipped with a comprehensive set of communication ports, including DH+, DH-485, RIO, RS-232, Ethernet, and both USB Type A and B ports.

User interaction is accomplished through an analog resistive touchscreen combined with an integrated keypad for simplified operation. The backlight of the display is a field-replaceable LED, with a longevity rated at 50,000 hours, providing durability and reliability.

Operational requirements for the 2711P-B12C6D6X involve an input voltage range between 18 to 32 volts DC, with a maximum power consumption of approximately 50 VA. The terminal is designed to endure environmental challenges, exhibiting vibration tolerance of 2 g up to 2000 Hz and shock resistance ratings of 15 g when operational and 30 g when not. For atmospheric conditions, it functions effectively in relative humidity levels ranging from 5% to 95% without condensation. The operating temperature conditions range from 0 to 55 °C (32 to 131 °F), while storage temperatures span from -20 to 70 °C (–4 to 158 °F). This combination of features makes the 2711P-B12C6D6X a robust choice for demanding applications in diverse industrial settings.
