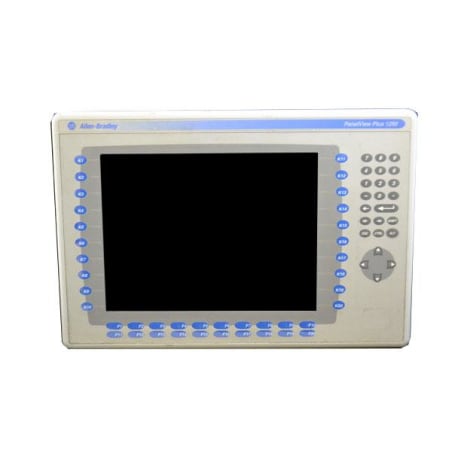

Allen Bradley Panelview Plus 1250 2711P-K12C15A7X

Product image is representative; revision or series may vary. Contact us to request a specific version.

2711P-K12C15A7X

|
Need a Specific Revision?

The 2711P-K12C15A7X is an operator interface terminal in the Allen Bradley PanelView Plus 1250 series. It features a full-color TFT display with backlight and is designed for panel mounting, offering a robust keypad interface for user inputs. With its wide operating voltage range from 85 to 264 Volts AC, it is suitable for various power supply setups.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 2711P-K12C15A7X

ManufacturerAllen Bradley
Product TypeOperator Interface Terminal (HMI)
Product LinePanelview Plus 1250
Part Number2711P-K12C15A7X
Weight32.00 lbs (14.51 kg)
Shock Rating15 g peak for 11 ms duration
Vibration Rating2 g at 10–500 Hz
Communication PortsControlNet interface
Frequency47-63 Hz
Power ConsumptionApprox. 50 VA
Input Voltage85-264 Volts AC
Input MethodKeypad interface
Display TypeFull-color TFT with backlight
Mounting TypePanel mount
Operating Temperature0°C to 55°C (32°F to 131°F)
Storage Temperature-25°C to 70°C (–13°F to 158°F)
Relative Humidity5% to 95% non-condensing
View as PDF
Request a Repair

The Allen Bradley 2711P-K12C15A7X operator interface terminal, part of the PanelView Plus 1250 series, is engineered for versatile applications within industrial settings. This terminal uses a backlit full-color TFT display to provide clear visuals, enhancing user interaction. The input method utilizes a keypad interface, allowing operators to input commands and manage processes seamlessly.

This unit has dimensions measuring 11.12 x 16.36 x 2.17 inches and weighs about 3.6 kg (7.9 lbs), making it a suitable choice for panel mounts. It operates at an input voltage range of 85-264 Volts AC, ensuring flexibility across various electrical systems. Power consumption is approximately 50 VA, which supports energy efficiency over extended use.

The 2711P-K12C15A7X is built to endure environmental extremes, with an operational temperature range of 0°C to 55°C (32°F to 131°F) and a storage capacity ranging from -25°C to 70°C (-13°F to 158°F). Its shock rating reaches up to 15 g peak for 11 ms, and it can handle vibration levels of 2 g at frequencies between 10 and 500 Hz, highlighting its durability in rigorous environments.

Additionally, it features a ControlNet interface to enable reliable communication with other devices and system components. The unit is also designed to perform in conditions with relative humidity levels ranging from 5% to 95% without condensation, further ensuring its adaptability in various operational scenarios.
