DO Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with DO Supply's 1-year warranty
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.
DO Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with DO Supply's 1-year warranty
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.
Warranty: | 1 year DO Supply Warranty Included |
Shipping: | Worldwide shipping via UPS, DHL, and TNT |
Repairs: | We offer repair service for the 2711P-K12C6A1. |
Exchange: | Exchange credit for your defective unit available. |
Conditions: | We sell preowned surplus and refurbished parts. |
Manufacturer | Rockwell Automation |
Brand | Allen-Bradley |
Part Number/Catalog No. | 2711P-K12C6A1 |
Product Line | Panelview Plus 1250 |
Display Size | 12.1 inches |
Input Type | Keypad |
Display Type | Full Color |
Communication | DH+/RIO/DH-485 |
Input Power | 85-264 Volts AC |
Memory | 64 Megabytes |
Shipping Dimensions | 11.12 x 16.36 x 2.17 inches |
Product Lifecycle Status* | Discontinued/Obsolete |
*The Allen Bradley 2711P-K12C6A1 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 2711P-K12C6A1 units instead of migration.
Manufacturer | Rockwell Automation |
Brand | Allen-Bradley |
Part Number/Catalog No. | 2711P-K12C6A1 |
Product Line | Panelview Plus 1250 |
Display Size | 12.1 inches |
Input Type | Keypad |
Display Type | Full Color |
Communication | DH+/RIO/DH-485 |
Input Power | 85-264 Volts AC |
Memory | 64 Megabytes |
Shipping Dimensions | 11.12 x 16.36 x 2.17 inches |
Product Lifecycle Status* | Discontinued/Obsolete |
*The Allen Bradley 2711P-K12C6A1 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 2711P-K12C6A1 units instead of migration.

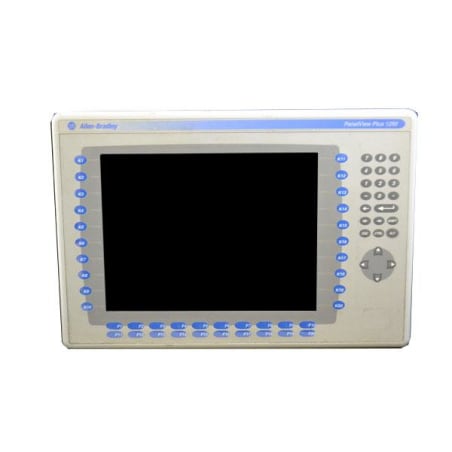

sThe Allen-Bradley 2711P-K12C6A1 is a smart operator terminal from the Allen-Bradley VersaView CE series. Its counterpart model from the Allen-Bradley PanelView Plus 6 series is the 2711P-K12C4A8. The 2711P-K12C6A1’s display is a color TFT screen with a display area of 246 x 184 mm. The resolution of the display is 800 x 600, and it supports 18-bit color graphics. The display backlight is rated for 50,000 hours at 25°C. The keypad is rated for 1 million presses (at an operating force of 340 gm) and it supports 40 function keys. The system battery is rated for a minimum of 4 years at 25°C and it is field replaceable.
The 2711P-K12C6A1 has 512 MB of RAM, and 512 MB of non-volatile memory (of which 79 MB is available for user applications). The memory can be extended by installing SD cards into the SD card slot. The 4 communication ports include a 10/100 Ethernet port, 2 USB ports, and one RS-232 port which can be used for multiple applications. The input voltage range is 100 – 240V AC at 50/60 Hz. The typical power consumption is 65VA while the maximum power consumption can go up to 160VA. The 2711P-K12C6A has dimensions of 282 x 416 x 83 mm. A 257 x 390 mm cut-out is required for installing the 2711P-K12C6A.
Type | Lead Time | Price | Action |
---|---|---|---|
Repair Service | 2-4 weeks | $3322 | ![]() |
Our highly skilled technicians can repair your 2711P-K12C6A1. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.
Please refer to the manual for more information about the 2711P-K12C6A1 such as the wiring diagrams, data sheets and migration or obsolescence details.
Revision Part # | Also Known as | Availability |
2711P-K12C6A1/A, Series A, Rev A | Request Quote | |
2711P-K12C6A1X
|
2711P-K12C6A1/X, Series X, Rev X | Request Quote |
Size | |
Input Type | |
Panel Cutout Height | in mm |
Panel Cutout Width | in mm |
Terminal Height | in mm |
Terminal Width | in mm |
Terminal Overall Depth | in mm |
Terminal Mounted Depth | in mm |
Manufacturer | Rockwell Automation |
Brand | Allen-Bradley |
Part Number/Catalog No. | 2711P-K12C6A1 |
Product Line | Panelview Plus 1250 |
Display Size | 12.1 inches |
Input Type | Keypad |
Display Type | Full Color |
Communication | DH+/RIO/DH-485 |
Input Power | 85-264 Volts AC |
Memory | 64 Megabytes |
Shipping Dimensions | 11.12 x 16.36 x 2.17 inches |
Product Lifecycle Status* | Discontinued/Obsolete |
Manufacturer | Rockwell Automation |
Brand | Allen-Bradley |
Part Number/Catalog No. | 2711P-K12C6A1 |
Product Line | Panelview Plus 1250 |
Display Size | 12.1 inches |
Input Type | Keypad |
Display Type | Full Color |
Communication | DH+/RIO/DH-485 |
Input Power | 85-264 Volts AC |
Memory | 64 Megabytes |
Shipping Dimensions | 11.12 x 16.36 x 2.17 inches |
Product Lifecycle Status* | Discontinued/Obsolete |
*The Allen Bradley 2711P-K12C6A1 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 2711P-K12C6A1 units instead of migration.
The Allen-Bradley 2711P-K12C6A1 is a smart operator terminal from the Allen-Bradley VersaView CE series. Its counterpart model from the Allen-Bradley PanelView Plus 6 series is the 2711P-K12C4A8. The 2711P-K12C6A1’s display is a color TFT screen with a display area of 246 x 184 mm. The resolution of the display is 800 x 600, and it supports 18-bit color graphics. The display backlight is rated for 50,000 hours at 25°C. The keypad is rated for 1 million presses (at an operating force of 340 gm) and it supports 40 function keys. The system battery is rated for a minimum of 4 years at 25°C and it is field replaceable.
The 2711P-K12C6A1 has 512 MB of RAM, and 512 MB of non-volatile memory (of which 79 MB is available for user applications). The memory can be extended by installing SD cards into the SD card slot. The 4 communication ports include a 10/100 Ethernet port, 2 USB ports, and one RS-232 port which can be used for multiple applications. The input voltage range is 100 – 240V AC at 50/60 Hz. The typical power consumption is 65VA while the maximum power consumption can go up to 160VA. The 2711P-K12C6A has dimensions of 282 x 416 x 83 mm. A 257 x 390 mm cut-out is required for installing the 2711P-K12C6A.
Type | Lead Time | Price | Action |
---|---|---|---|
Repair Service | 2-4 weeks | $3322 | ![]() |
Our highly skilled technicians can repair your 2711P-K12C6A1. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.
Type | Lead Time | Price | Action |
---|---|---|---|
Repair Service | 2-4 weeks | $3322 | ![]() |
Our highly skilled technicians can repair your 2711P-K12C6A1. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.
Please refer to the manual for more information about the 2711P-K12C6A1 such as the wiring diagrams, data sheets and migration or obsolescence details.
Revision Part # | Also Known as | Availability |
2711P-K12C6A1/A, Series A, Rev A | Request Quote | |
2711P-K12C6A1X
|
2711P-K12C6A1/X, Series X, Rev X | Request Quote |
