2711P-B4C20A

thumbnail 1

thumbnail 2
Rated 5 with 13 reviews

top legal disclaimer
credit cards accepted
better business bureau

2711P-B4C20A

Description: 3.5-in. Display Color Keypad/Touch -AC 400 Terminal
In Stock Ships Today
Request a quote for 2711P-B4C20A

Description: 3.5-in. Display Color Keypad/Touch -AC 400 Terminal

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via DHL, UPS, Fedex, and TNT
Repairs: We offer repair service for the 2711P-B4C20A.
Exchange: Exchange credit for your defective unit available.

To Speak to a sales representative for pricing & lead time:

phone

International
919-205-4392
phone

International
919-205-4392

Rated 5 with 13 reviews


About 2711P-B4C20A

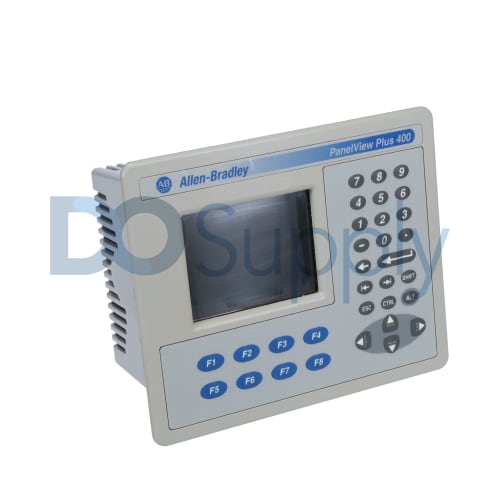

The 2711P-B4C20A is a display terminal part of the Allen Bradley PanelView Plus series, offering a variety of capabilities for different uses. This device is manufactured by Allen Bradley and provides an industry standard solution to managing numerous connected devices as well as providing an effective monitoring solution. The Allen Bradley PanelView 2711P-B4C20A  Plus 400 Color Display Terminal can be installed in virtually any type of indoor facility and is also appropriate for outdoor installation, in most scenarios. The Allen Bradley 2711P-B4C20A PanelView is equipped with a 3.5-inch display panel that has a touch panel integrated for ease-of-use; users can choose to provide input to the device through its integrated touch panel, or to rather utilize the integrated keypad input to deliver configurations or input to the device, in order to monitor and control the connected outputs.

Numerous communication modules are installed in the 2711P-B4C20A Color Display Terminal in order to provide the facility with multiple options when it comes to connecting the device to both input and output devices. This display terminal comes with an Ethernet port, allowing files to be shared to and from the display terminal with ease, as well as to provide an easy way to send documents toward a printing. An RS-232 serial communication port is also equipped with the display terminal, providing further options for communication and connecting the device to an external source. The compact design of the 2711P-B4C20A terminal allows for an easy installation in complex settings. The flexible operation options provided by the display terminal further contribute to a more convenient experience for the end-user. This device also comes with a built-in Modular Communication Interface, allowing for added protection when connected to certain devices, and providing a more efficient connectivity solution. The 2711P-B4C20A is powered through an AC power supply; a variety of input powers are supported by the display terminal, depending on the particular operations the device will be used for and depending on the requirements of the project.


Technical specifications:


ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.2711P-B4C20A
Product LinePanelview Plus 400
Display Size3.5 inch
Display ColorColor
Input Type Keypad/Touchscreen
CommunicationEhternet and RS-232 Ports
Input PowerAC
SoftwareFactoryTalk View ME
Memory64 MB
SeriesA, B, C, D, E
FirmwareVersion 3.20-5.10
ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.2711P-B4C20A
Product LinePanelview Plus 400
Display Size3.5 inch
Display ColorColor
Input Type Keypad/Touchscreen
CommunicationEhternet and RS-232 Ports
Input PowerAC
SoftwareFactoryTalk View ME
Memory64 MB
SeriesA, B, C, D, E
FirmwareVersion 3.20-5.10
Type Lead Time Price Action
Repair Service 2-4 weeks $946cartAdd to Cart

Our highly skilled technicians can repair your 2711P-B4C20A. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Please refer to the manual for more information about the 2711P-B4C20A such as the wiring diagrams, data sheets, firmware information and migration or obsolescence details.

Revision Part # Also Known as Availability
2711P-B4C20A/-L1, Series -L1, Rev -L1 Request Quote
2711P-B4C20A/-L2, Series -L2, Rev -L2 Request Quote
2711P-B4C20A/-Rev A, Series -Rev A, Rev -Rev A Request Quote
2711P-B4C20A/-Rev B, Series -Rev B, Rev -Rev B Request Quote
2711P-B4C20A/-Rev C, Series -Rev C, Rev -Rev C Request Quote
2711P-B4C20A/-Rev D, Series -Rev D, Rev -Rev D Request Quote
2711P-B4C20A/-Rev E, Series -Rev E, Rev -Rev E Request Quote
2711P-B4C20A/-Rev F, Series -Rev F, Rev -Rev F Request Quote
2711P-B4C20A/-Rev G, Series -Rev G, Rev -Rev G Request Quote
2711P-B4C20A/-Rev H, Series -Rev H, Rev -Rev H Request Quote
2711P-B4C20A/-Rev I, Series -Rev I, Rev -Rev I Request Quote
2711P-B4C20A/-Rev J, Series -Rev J, Rev -Rev J Request Quote
2711P-B4C20A/-Rev K, Series -Rev K, Rev -Rev K Request Quote
2711P-B4C20A/-Rev L, Series -Rev L, Rev -Rev L Request Quote
2711P-B4C20A/- A, Series - A, Rev - A Request Quote
2711P-B4C20A/- B, Series - B, Rev - B Request Quote
2711P-B4C20A/- C, Series - C, Rev - C Request Quote
2711P-B4C20A/- D, Series - D, Rev - D Request Quote
2711P-B4C20A/- E, Series - E, Rev - E Request Quote
2711P-B4C20A/- F, Series - F, Rev - F Request Quote
2711P-B4C20A/- G, Series - G, Rev - G Request Quote
2711P-B4C20A/- H, Series - H, Rev - H Request Quote
2711P-B4C20A/- I, Series - I, Rev - I Request Quote
2711P-B4C20A/- J, Series - J, Rev - J Request Quote
2711P-B4C20A/- K, Series - K, Rev - K Request Quote
2711P-B4C20A/- L, Series - L, Rev - L Request Quote
2711P-B4C20A/A, Series A, Rev A Request Quote
2711P-B4C20A/B, Series B, Rev B Request Quote
2711P-B4C20A/C, Series C, Rev C Request Quote
2711P-B4C20A/D, Series D, Rev D Request Quote
2711P-B4C20A/E, Series E, Rev E Request Quote
2711P-B4C20A/F, Series F, Rev F Request Quote
2711P-B4C20A/G, Series G, Rev G Request Quote
2711P-B4C20A/H, Series H, Rev H Request Quote
2711P-B4C20A/I, Series I, Rev I Request Quote
2711P-B4C20A/J, Series J, Rev J Request Quote
2711P-B4C20A/K, Series K, Rev K Request Quote
2711P-B4C20A/L, Series L, Rev L Request Quote
2711P-B4C20A/M, Series M, Rev M Request Quote
