2711P-B10C4A8

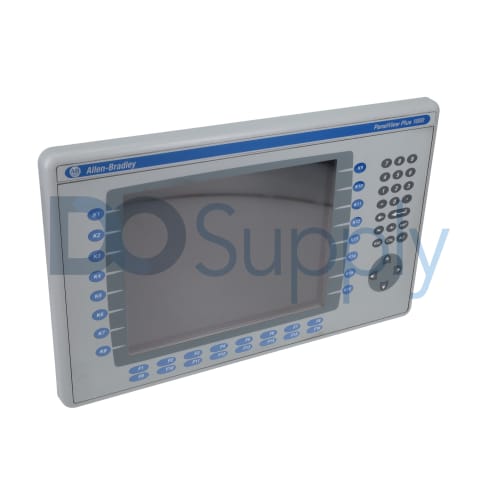

Description: The Allen-Bradley 2711P-B10C4A8 is a Panelview Plus 6 1000 Operator Terminal. This operator terminal is powered by an external 85-264V AC supply voltage and has a 10.4-inch colored display with embedded Ethernet, RS232, USB communication ports. This operator terminal has a keypad and touchscreen input interface.
Available Now
Request a quote for 2711P-B10C4A8

Description: The Allen-Bradley 2711P-B10C4A8 is a Panelview Plus 6 1000 Operator Terminal. This operator terminal is powered by an external 85-264V AC supply voltage and has a 10.4-inch colored display with embedded Ethernet, RS232, USB communication ports. This operator terminal has a keypad and touchscreen input interface.
About | Products Specs | FAQ

top legal disclaimer
disclaimer
credit cards
better business bureau

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via DHL, UPS, Fedex, and TNT
Repairs: We offer repair service for the 2711P-B10C4A8.
Exchange: Exchange credit for your defective unit available.

To speak to a sales representative for pricing & lead time:


Rated 4.4 with 20 reviews

    Technical Specifications for 2711P-B10C4A8

BacklightCCFL 50,000 hours life, min
Display Size10.4 inches
BrandAllen-Bradley
Manufacturer:Rockwell Automation
Product Family:PanelView Plus 6 Operator Terminals
Product Type:PanelView Plus 6 1000 Operator Terminals
Operator Input:Keypad / Touch
Display Type:Color active matrix, thin-film transistor (TFT) with liquid crystal display (LCD)
Lifecycle status:End of life
Display Area:210 x 131 mm (8.27 x 5.17 in.)
Resolution:640 x 400
Keypad:1 million presses
Keypad function keys:F1 to F16, K1 to K16; 0…9, Special Characters, Backspace, Enter, Left and Right Tab, keys, Shift keys
Touch:Analog Resistive
Internal memory:512MB Flash Memory / 512 MB Random Access Memory
Integrated ports:Ethernet, RS-232, ControlNet, 1 USB host
Input Voltage range:100-240VAC
Input Frequency:50-60 Hz
Configuration Software:FactoryTalk View Machine Edition FactoryTalk View Site Edition
Part Number/Catalog No.2711P-B10C4A8
Product LinePanelview 6 Plus
Display ColorColor
Input TypeKeypad/Touchscreen
CommunicationEthernet and RS-232
Input Power100-240 VAC
SoftwareFactoryTalk View Machine Edition
Memory512 MB RAM
Communication Cable2711-NC14
Shipping Weight8 lbs.
Shipping Dimensions16 x 14 x 8 in
SeriesSeries A and Series B
Firmware6.00-8.10
UPC10612598876713
BacklightCCFL 50,000 hours life, min
Display Size10.4 inches
BrandAllen-Bradley
Manufacturer:Rockwell Automation
Product Family:PanelView Plus 6 Operator Terminals
Product Type:PanelView Plus 6 1000 Operator Terminals
Operator Input:Keypad / Touch
Display Type:Color active matrix, thin-film transistor (TFT) with liquid crystal display (LCD)
Lifecycle status:End of life
Display Area:210 x 131 mm (8.27 x 5.17 in.)
Resolution:640 x 400
Keypad:1 million presses
Keypad function keys:F1 to F16, K1 to K16; 0…9, Special Characters, Backspace, Enter, Left and Right Tab, keys, Shift keys
Touch:Analog Resistive
Internal memory:512MB Flash Memory / 512 MB Random Access Memory
Integrated ports:Ethernet, RS-232, ControlNet, 1 USB host
Input Voltage range:100-240VAC
Input Frequency:50-60 Hz
Configuration Software:FactoryTalk View Machine Edition FactoryTalk View Site Edition
Part Number/Catalog No.2711P-B10C4A8
Product LinePanelview 6 Plus
Display ColorColor
Input TypeKeypad/Touchscreen
CommunicationEthernet and RS-232
Input Power100-240 VAC
SoftwareFactoryTalk View Machine Edition
Memory512 MB RAM
Communication Cable2711-NC14
Shipping Weight8 lbs.
Shipping Dimensions16 x 14 x 8 in
SeriesSeries A and Series B
Firmware6.00-8.10
UPC10612598876713
s

About 2711P-B10C4A8

The current Allen Bradley PanelView Plus 6 2711P-B10C4A8 is an HMI that allows the user to interact with their machine. This operator interface has a 10.4 in. Color Display with built-in Ethernet and RS-232 communication ports. The user is able to control the operator interface by utilizing the Keypad/Touchscreen to input information and data. This unit is powered using 100-240 VAC power. This unit has an internal memory of 512 MB RAM and 512MB non-volatile memory.

This operator terminal comes with an EtherNet/IP (Ethernet Industrial Protocol) communication port that is an open industrial network that capable of real time I/O messaging, as well as message exchange. The Ethernet port connects to a controller on an EtherNet/IP network by using both the network and standard Ethernet connections. This port can work with application transfers and printing as well. This port has an RJ45, 10/100Base-T connector for network communication and supports MDI/MDI-X connections. The parameters are downloaded with the application.

The 2711P-B10C4A8 is a PanelView Plus 6 1000 operator terminal. This product belongs to the modern versions of visualization product of Allen-Bradley as it has a slim, compact assembly with multiple interface ports for data communication, integration and installation of external peripherals. This operator terminal is still capable of implementing real-time monitoring and control of the process with the addition of enhanced and advanced capabilities.

The 2711P-B10C4A8 has a dual input interface which allow the operator to interact with the system via the keypad assembly of analog resistive touch screen. These input interface are actively functioning however, caution must be applied when simultaneously using these input methods.

The Touch screen interface has a high memory capacity, installed with 512MB Random Access Memory (RAM) and 512MB non-volatile memory. This operator terminal is installed with a Windows CE operating system, providing a Windows operating system configuration environment. With Windows CE, standard Windows command may be executed such as moving and duplication of files, management, protection, activation of services and many other. It is also installed with an File Transfer Protocol (FTP) server, VNC Client / Server, PDF Reader, Active X Controls and support for Third party tools.

This operator terminal has a 10.4-inch colored TFT display with resolution of 640 x 480 pixels with an 18-bit color graphics.

The 2711P-B10C4A8 terminal has an integrated Ethernet communication port, RS-232, and 2 USB host ports for communication. It also has a USB port for insertion of external peripherals such as a mouse, keyboard and USB device. The 2711P-B10C4A8 is powered using a DC power source with rated range of 85-264VAC along a frequency of 47-63Hz.

FAQ for 2711P-B10C4A8

Does this HMI come with a Windows CE operating system?


Yes, it has a built-in Windows CE operating system.

What are the embedded communication ports of the 2711P-B10C4A8?


The 2711P-B10C4A8 has Ethernet, RS232 and USB interface.

What is the screen size of the 2711P-B10C4A8?


The 2711P-B10C4A8 has 10.4 colored display screen.

Technical Description of 2711P-B10C4A8

PanelView Plus 6 Operator interface , 1000 Terminal, with Keypad/Touch, Color display, - Ethernet & RS-232, AC Powered Unit, and the Windows CE 6.0 Operating System

Repair Services for 2711P-B10C4A8

Type Lead Time Price Action
Repair Service 2-4 weeks $4359.55cartAdd to Cart

We Can Repair Your Panelview Plus 6

We have a team of highly trained technicians that can repair your Panelview Plus 6 quickly at a great low price. To get a repair quote call 1-800-730-0292 or email sales@dosupply.com. Some of the benefits of our repair process includes:

  • Repair Turnaround of 3-5 Days for Most Panelview Plus 6
  • Rush Repairs of 1-3 Days
  • Fast Return of Your Repair via UPS, FedEx, or DHL.
  • If the item is not repairable, you can choose to have it returned to you free of charge or it can be counted as an exchange credit toward a refurbished or surplus unit if available.
  • Wide range of repairs that can be completed by our highly skilled technicians as shown below.
  • All Repairs Come With Our 1-Year Warranty!

Repair Capabilities

We Can Repair Your Hardware Failures Including:

  • Communication Failures
  • Broken Toushcreens/Keypads
  • Broken Glass
  • Displays (Dead/Dim/Lines/Missing Pixels)
  • Dead Backlights
  • Broken Housing/Bezel
  • Power Board Failures

Start UP Error Codes and Messages:

    • Load firmware image into RAM Update 1E
    • Write firmware image to storage Update A5
    • Load factory-default firmware image into RAM Restore E6
    • Write factory-default firmware image to storage Restore A5
    • Restore factory-default configuration data Restore DC
    • Firmware validation (CRC/format) failure Fatal 1E
    • Firmware failed to validate compatibility index of a firmware region Fatal 1F
    • Firmware update failure Fatal 0F
    • Firmware write to storage failure Fatal A5
    • Firmware stored image verification failure Fatal D2
    • Invalid or missing OS firmware image Fatal FF
    • Failed RAM Fatal 03
    • Stuck key Fatal 31
    • Stuck touch Fatal 3A
    • Failed backlight Fatal 3B
    • Failed to initialize restore operation Fatal R0
    • Failed restore because of invalid header in .pvb file Fatal R1
    • Failed restore because of invalid header Fatal R2
    • Failed restore because of inability to write intermediate files to terminal Fatal R3
    • Failed restored because of corrupt .pvb file Fatal R4
    • Watch dog reset Fatal 02
    • Boot loader attempting PC connection via USB device AutoTest OA
    • Boot loader loads firmware image into RAM AutoTest E6
    • Boot loader jumps to operating system AutoTest FF
    • Operating system starts up Boot G0
    • Operating system registration and initialization Init H1 - JA
    • Machine Edition registration and initialization Init K1 - MA
    • Machine Edition load and execute Init ME

Revisions for 2711P-B10C4A8

Please refer to the manual for more information about the 2711P-B10C4A8 such as the wiring diagrams, data sheets, firmware information and migration or obsolescence details.

Revision Part # Also Known as Availability
2711P-B10C4A8 Ser A
2711P-B10C4A8/A, Series A, Rev A Request Quote
2711P-B10C4A8X
2711P-B10C4A8/X, Series X, Rev X Request Quote
Common misspellings:
  • 27l1P-B10C4A8
  • 271lP-B10C4A8
  • 2711P-810C4A8
  • 2711P-Bl0C4A8
  • 2711P-B1oC4A8
  • 2711P-B10CAA8
  • 2711P-B10C4Ab
  • 2711PB10C4A8

Reviews for 2711P-B10C4A8

User Input Method

"This Paneliew Plus 6 has Touchscreen and Keypad Input, which gives the user the maximum methods of data input. " -DO Supply Tech

Internal Review

"The 2711P-B10C4A8 is a PanelView Plus 6 operator terminal. This operator terminal features a variety of enhanced and advanced functionalities compared to the PanelView Standard Operator Terminals and PanelView Plus operator terminals. The main advantage of this HMI is that it is installed with a Microsoft Windows CE operating system, giving the HMI a Microsoft Windows look and feel configuration environment. " -DO Supply Tech

Dimensions For 2711P-B10C4A8

Size
Input Type
Panel Cutout Height in mm
Panel Cutout Width in mm
Terminal Height in mm
Terminal Width in mm
Terminal Overall Depth in mm
Terminal Mounted Depth in mm

Dimensions For 2711P-B10C4A8

Resolutions For 2711P-B10C4A8

Size 10.4 inch (1000 color)
Input Type Keypad or Keypad/ Touch
Display Type Color active-matrix TFT
Display Size (Diagonal) 10.4 in.
Viewing Area 211 x 158 mm (8.3 x 6.2 in.)
Display Resolution 640 x 480, 18-bit color graphics
Typical Brightness 300 cd/m2 (Nits)
About

Technical Specifications for 2711P-B10C4A8

BacklightCCFL 50,000 hours life, min
Display Size10.4 inches
BrandAllen-Bradley
Manufacturer:Rockwell Automation
Product Family:PanelView Plus 6 Operator Terminals
Product Type:PanelView Plus 6 1000 Operator Terminals
Operator Input:Keypad / Touch
Display Type:Color active matrix, thin-film transistor (TFT) with liquid crystal display (LCD)
Lifecycle status:End of life
Display Area:210 x 131 mm (8.27 x 5.17 in.)
Resolution:640 x 400
Keypad:1 million presses
Keypad function keys:F1 to F16, K1 to K16; 0…9, Special Characters, Backspace, Enter, Left and Right Tab, keys, Shift keys
Touch:Analog Resistive
Internal memory:512MB Flash Memory / 512 MB Random Access Memory
Integrated ports:Ethernet, RS-232, ControlNet, 1 USB host
Input Voltage range:100-240VAC
Input Frequency:50-60 Hz
Configuration Software:FactoryTalk View Machine Edition FactoryTalk View Site Edition
Part Number/Catalog No.2711P-B10C4A8
Product LinePanelview 6 Plus
Display ColorColor
Input TypeKeypad/Touchscreen
CommunicationEthernet and RS-232
Input Power100-240 VAC
SoftwareFactoryTalk View Machine Edition
Memory512 MB RAM
Communication Cable2711-NC14
Shipping Weight8 lbs.
Shipping Dimensions16 x 14 x 8 in
SeriesSeries A and Series B
Firmware6.00-8.10
UPC10612598876713
BacklightCCFL 50,000 hours life, min
Display Size10.4 inches
BrandAllen-Bradley
Manufacturer:Rockwell Automation
Product Family:PanelView Plus 6 Operator Terminals
Product Type:PanelView Plus 6 1000 Operator Terminals
Operator Input:Keypad / Touch
Display Type:Color active matrix, thin-film transistor (TFT) with liquid crystal display (LCD)
Lifecycle status:End of life
Display Area:210 x 131 mm (8.27 x 5.17 in.)
Resolution:640 x 400
Keypad:1 million presses
Keypad function keys:F1 to F16, K1 to K16; 0…9, Special Characters, Backspace, Enter, Left and Right Tab, keys, Shift keys
Touch:Analog Resistive
Internal memory:512MB Flash Memory / 512 MB Random Access Memory
Integrated ports:Ethernet, RS-232, ControlNet, 1 USB host
Input Voltage range:100-240VAC
Input Frequency:50-60 Hz
Configuration Software:FactoryTalk View Machine Edition FactoryTalk View Site Edition
Part Number/Catalog No.2711P-B10C4A8
Product LinePanelview 6 Plus
Display ColorColor
Input TypeKeypad/Touchscreen
CommunicationEthernet and RS-232
Input Power100-240 VAC
SoftwareFactoryTalk View Machine Edition
Memory512 MB RAM
Communication Cable2711-NC14
Shipping Weight8 lbs.
Shipping Dimensions16 x 14 x 8 in
SeriesSeries A and Series B
Firmware6.00-8.10
UPC10612598876713

About 2711P-B10C4A8

The current Allen Bradley PanelView Plus 6 2711P-B10C4A8 is an HMI that allows the user to interact with their machine. This operator interface has a 10.4 in. Color Display with built-in Ethernet and RS-232 communication ports. The user is able to control the operator interface by utilizing the Keypad/Touchscreen to input information and data. This unit is powered using 100-240 VAC power. This unit has an internal memory of 512 MB RAM and 512MB non-volatile memory.

This operator terminal comes with an EtherNet/IP (Ethernet Industrial Protocol) communication port that is an open industrial network that capable of real time I/O messaging, as well as message exchange. The Ethernet port connects to a controller on an EtherNet/IP network by using both the network and standard Ethernet connections. This port can work with application transfers and printing as well. This port has an RJ45, 10/100Base-T connector for network communication and supports MDI/MDI-X connections. The parameters are downloaded with the application.

The 2711P-B10C4A8 is a PanelView Plus 6 1000 operator terminal. This product belongs to the modern versions of visualization product of Allen-Bradley as it has a slim, compact assembly with multiple interface ports for data communication, integration and installation of external peripherals. This operator terminal is still capable of implementing real-time monitoring and control of the process with the addition of enhanced and advanced capabilities.

The 2711P-B10C4A8 has a dual input interface which allow the operator to interact with the system via the keypad assembly of analog resistive touch screen. These input interface are actively functioning however, caution must be applied when simultaneously using these input methods.

The Touch screen interface has a high memory capacity, installed with 512MB Random Access Memory (RAM) and 512MB non-volatile memory. This operator terminal is installed with a Windows CE operating system, providing a Windows operating system configuration environment. With Windows CE, standard Windows command may be executed such as moving and duplication of files, management, protection, activation of services and many other. It is also installed with an File Transfer Protocol (FTP) server, VNC Client / Server, PDF Reader, Active X Controls and support for Third party tools.

This operator terminal has a 10.4-inch colored TFT display with resolution of 640 x 480 pixels with an 18-bit color graphics.

The 2711P-B10C4A8 terminal has an integrated Ethernet communication port, RS-232, and 2 USB host ports for communication. It also has a USB port for insertion of external peripherals such as a mouse, keyboard and USB device. The 2711P-B10C4A8 is powered using a DC power source with rated range of 85-264VAC along a frequency of 47-63Hz.

FAQ for 2711P-B10C4A8

Does this HMI come with a Windows CE operating system?


Yes, it has a built-in Windows CE operating system.

What are the embedded communication ports of the 2711P-B10C4A8?


The 2711P-B10C4A8 has Ethernet, RS232 and USB interface.

What is the screen size of the 2711P-B10C4A8?


The 2711P-B10C4A8 has 10.4 colored display screen.

Technical Description of 2711P-B10C4A8

PanelView Plus 6 Operator interface , 1000 Terminal, with Keypad/Touch, Color display, - Ethernet & RS-232, AC Powered Unit, and the Windows CE 6.0 Operating System
Repairs
Type Lead Time Price Action
Repair Service 2-4 weeks $4359.55cartAdd to Cart

We Can Repair Your Panelview Plus 6

We have a team of highly trained technicians that can repair your Panelview Plus 6 quickly at a great low price. To get a repair quote call 1-800-730-0292 or email sales@dosupply.com. Some of the benefits of our repair process includes:

  • Repair Turnaround of 3-5 Days for Most Panelview Plus 6
  • Rush Repairs of 1-3 Days
  • Fast Return of Your Repair via UPS, FedEx, or DHL.
  • If the item is not repairable, you can choose to have it returned to you free of charge or it can be counted as an exchange credit toward a refurbished or surplus unit if available.
  • Wide range of repairs that can be completed by our highly skilled technicians as shown below.
  • All Repairs Come With Our 1-Year Warranty!

Repair Capabilities

We Can Repair Your Hardware Failures Including:

  • Communication Failures
  • Broken Toushcreens/Keypads
  • Broken Glass
  • Displays (Dead/Dim/Lines/Missing Pixels)
  • Dead Backlights
  • Broken Housing/Bezel
  • Power Board Failures

Start UP Error Codes and Messages:

    • Load firmware image into RAM Update 1E
    • Write firmware image to storage Update A5
    • Load factory-default firmware image into RAM Restore E6
    • Write factory-default firmware image to storage Restore A5
    • Restore factory-default configuration data Restore DC
    • Firmware validation (CRC/format) failure Fatal 1E
    • Firmware failed to validate compatibility index of a firmware region Fatal 1F
    • Firmware update failure Fatal 0F
    • Firmware write to storage failure Fatal A5
    • Firmware stored image verification failure Fatal D2
    • Invalid or missing OS firmware image Fatal FF
    • Failed RAM Fatal 03
    • Stuck key Fatal 31
    • Stuck touch Fatal 3A
    • Failed backlight Fatal 3B
    • Failed to initialize restore operation Fatal R0
    • Failed restore because of invalid header in .pvb file Fatal R1
    • Failed restore because of invalid header Fatal R2
    • Failed restore because of inability to write intermediate files to terminal Fatal R3
    • Failed restored because of corrupt .pvb file Fatal R4
    • Watch dog reset Fatal 02
    • Boot loader attempting PC connection via USB device AutoTest OA
    • Boot loader loads firmware image into RAM AutoTest E6
    • Boot loader jumps to operating system AutoTest FF
    • Operating system starts up Boot G0
    • Operating system registration and initialization Init H1 - JA
    • Machine Edition registration and initialization Init K1 - MA
    • Machine Edition load and execute Init ME
Type Lead Time Price Action
Repair Service 2-4 weeks $4359.55cartAdd to Cart

We Can Repair Your Panelview Plus 6

We have a team of highly trained technicians that can repair your Panelview Plus 6 quickly at a great low price. To get a repair quote call 1-800-730-0292 or email sales@dosupply.com. Some of the benefits of our repair process includes:

  • Repair Turnaround of 3-5 Days for Most Panelview Plus 6
  • Rush Repairs of 1-3 Days
  • Fast Return of Your Repair via UPS, FedEx, or DHL.
  • If the item is not repairable, you can choose to have it returned to you free of charge or it can be counted as an exchange credit toward a refurbished or surplus unit if available.
  • Wide range of repairs that can be completed by our highly skilled technicians as shown below.
  • All Repairs Come With Our 1-Year Warranty!

Repair Capabilities

We Can Repair Your Hardware Failures Including:

  • Communication Failures
  • Broken Toushcreens/Keypads
  • Broken Glass
  • Displays (Dead/Dim/Lines/Missing Pixels)
  • Dead Backlights
  • Broken Housing/Bezel
  • Power Board Failures

Start UP Error Codes and Messages:

    • Load firmware image into RAM Update 1E
    • Write firmware image to storage Update A5
    • Load factory-default firmware image into RAM Restore E6
    • Write factory-default firmware image to storage Restore A5
    • Restore factory-default configuration data Restore DC
    • Firmware validation (CRC/format) failure Fatal 1E
    • Firmware failed to validate compatibility index of a firmware region Fatal 1F
    • Firmware update failure Fatal 0F
    • Firmware write to storage failure Fatal A5
    • Firmware stored image verification failure Fatal D2
    • Invalid or missing OS firmware image Fatal FF
    • Failed RAM Fatal 03
    • Stuck key Fatal 31
    • Stuck touch Fatal 3A
    • Failed backlight Fatal 3B
    • Failed to initialize restore operation Fatal R0
    • Failed restore because of invalid header in .pvb file Fatal R1
    • Failed restore because of invalid header Fatal R2
    • Failed restore because of inability to write intermediate files to terminal Fatal R3
    • Failed restored because of corrupt .pvb file Fatal R4
    • Watch dog reset Fatal 02
    • Boot loader attempting PC connection via USB device AutoTest OA
    • Boot loader loads firmware image into RAM AutoTest E6
    • Boot loader jumps to operating system AutoTest FF
    • Operating system starts up Boot G0
    • Operating system registration and initialization Init H1 - JA
    • Machine Edition registration and initialization Init K1 - MA
    • Machine Edition load and execute Init ME
Revisions

Please refer to the manual for more information about the 2711P-B10C4A8 such as the wiring diagrams, data sheets, firmware information and migration or obsolescence details.

Revision Part # Also Known as Availability
2711P-B10C4A8 Ser A
2711P-B10C4A8/A, Series A, Rev A Request Quote
2711P-B10C4A8X
2711P-B10C4A8/X, Series X, Rev X Request Quote

Common misspellings:
  • 27l1P-B10C4A8
  • 271lP-B10C4A8
  • 2711P-810C4A8
  • 2711P-Bl0C4A8
  • 2711P-B1oC4A8
  • 2711P-B10CAA8
  • 2711P-B10C4Ab
  • 2711PB10C4A8
PDF
2711P-B10C4A8 PDF
Resolutions

Resolutions For 2711P-B10C4A8

Size 10.4 inch (1000 color)
Input Type Keypad or Keypad/ Touch
Display Type Color active-matrix TFT
Display Size (Diagonal) 10.4 in.
Viewing Area 211 x 158 mm (8.3 x 6.2 in.)
Display Resolution 640 x 480, 18-bit color graphics
Typical Brightness 300 cd/m2 (Nits)
Reviews

Reviews for 2711P-B10C4A8

User Input Method

"This Paneliew Plus 6 has Touchscreen and Keypad Input, which gives the user the maximum methods of data input. " -DO Supply Tech

Internal Review

"The 2711P-B10C4A8 is a PanelView Plus 6 operator terminal. This operator terminal features a variety of enhanced and advanced functionalities compared to the PanelView Standard Operator Terminals and PanelView Plus operator terminals. The main advantage of this HMI is that it is installed with a Microsoft Windows CE operating system, giving the HMI a Microsoft Windows look and feel configuration environment. " -DO Supply Tech
