2711P-K10C4D8

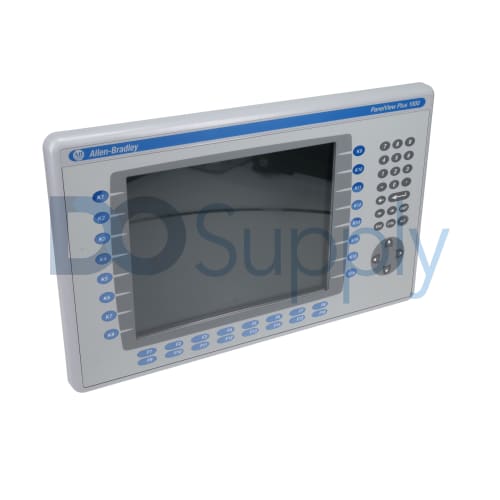

The current Allen Bradley Panelview 6 Plus 2711P-K10C4D8 is an HMI that allows the user to interact with their machine. This operator interface has a 10.4 in. Color Display. The user is able to control the operator interface by utilizing the Keypad to input information and data. This unit is powered using 18-32 VDC power. This unit has the following internal memory: 512 MB RAM. If applicable this unit has an internal backlight replacement part number of 2711P-RL10C2. The approximate shipping weight and dimensions are 8 lbs. and 16 x 14 x 8 in. EtherNet/IP (Ethernet Industrial Protocol) is an open industrial network that supports real time I/O messaging, as well as message exchange. The Ethernet port connects to a controller on an EtherNet/IP network by using both the network and standard Ethernet connections. This port can work with application transfers and printing as well. The EtherNet/IP screen displays and allows the user to modify some of the EtherNet/IP communication settings for a PanelView terminal. The 2711P-RN20 Ethernet communication module is available for the 700 to 1500 terminals if another Ethernet port is required. The module has its own unique IP address. This port has an RJ45, 10/100Base-T connector for network communication and supports MDI/MDI-X connections. The parameters are downloaded with the application.

The 2711P-K10C4D8 may be installed near the controlled system or remotely as this operator terminal features an RS232 communication interface for short distance communication and Ethernet communication interface for multi-node, medium distance and extended length of communication.

Through the 10.4-inch colored screen interface, this operator terminal is capable of providing process mimic with static and dynamic colored displays. This enables the HMI to deliver an higher degree of information as the colored graphics may be used to provide color coded information, following international standards or plant specific color convention. For real-time interaction, the 2711P-K10C4D8 is provided with 32 function keys composed of F1-F16 and K1-K16 buttons. Additionally, it also has a complete set of numeric keypad, directional buttons and confirmation keys. Out of the mentionded buttons, only the function keys are fully-programmable.
