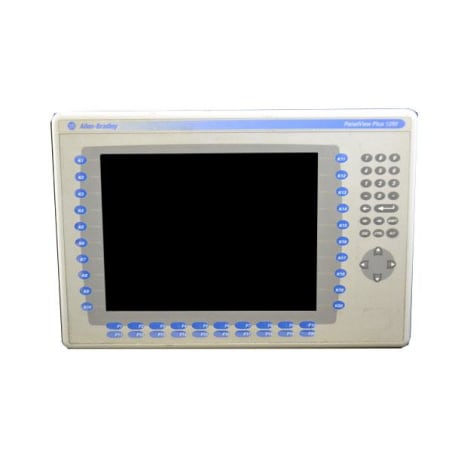

Allen Bradley Panelview Plus 6 2711P-K12C4D9X

Product image is representative; revision or series may vary. Contact us to request a specific version.

2711P-K12C4D9X

|
Need a Specific Revision?

The 2711P-K12C4D9X is an operator interface unit in the Allen Bradley PanelView Plus 6 series. This device features a 12-inch color graphics screen and supports input through an integrated keypad. Operable within an 18-32V DC voltage range, it nominally runs at 24V DC. Communication interfaces include both RS-232 and Ethernet ports for connectivity.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 2711P-K12C4D9X

ManufacturerAllen Bradley
Product TypeOperator Interface
Product LinePanelview Plus 6
Part Number2711P-K12C4D9X
Weight9.50 lbs (4.31 kg)
KeypadIncluded
Voltage TypeDC
Nominal Voltage24V DC
Voltage Range18-32V DC
GraphicsColor Graphics
Screen Size12 Inches
RS-232 PortIncluded
Ethernet PortIncluded
RAM512 MB
Nonvolatile Memory512 MB
Free User MemoryAbout 79 MB
View as PDF
Request a Repair

The 2711P-K12C4D9X from Allen Bradley functions as an operator interface designed to enhance interaction with automation systems. The screen measures 12 inches and supports vibrant color graphics for clear visual representation of system data. The unit operates on a nominal voltage of 24V DC, with a voltage range that accommodates 18 to 32 volts DC. This versatility makes it suitable for various applications in industrial environments.

This operator interface includes a keypad for user inputs, enhancing its usability in different settings. In addition, the device comes equipped with both RS-232 and Ethernet ports, facilitating straightforward communication with other devices in the network.

With a substantial RAM capacity of 512 MB, along with an equal amount of nonvolatile memory, the 2711P-K12C4D9X enables the efficient processing and storage of critical application data. Users also have access to roughly 79 MB of free memory for additional file storage, improving flexibility during use. Overall, the combination of rich graphical capabilities, robust memory, and communication options makes this unit a reliable component for modern industrial automation tasks.
