2711P-K4C5D8 New and Used Panelview Plus 6 In Stock Ships To... | Image

Rated 4.6 with 7 reviews

About | Product Specifications | FAQ

2711P-K4C5D8

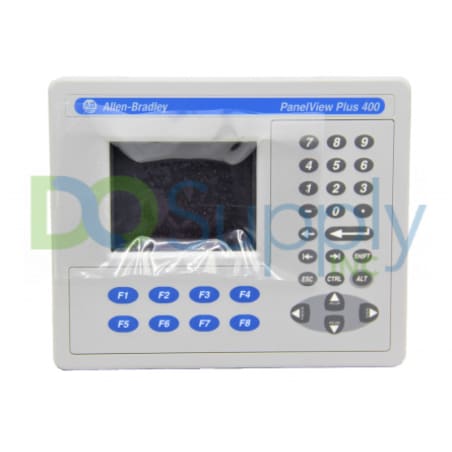

Description: PanelView Plus 6 Operator interface , 400 Terminal, Keypad, Color display, RS-232 communication port, DC Powered Unit, and the Windows CE 6.0 Operating System

Request a quote for 2711P-K4C5D8

Warranty:	1 year DO Supply Warranty Included
Shipping:	Worldwide shipping via DHL, UPS, Fedex, and TNT
Repairs:	We offer repair service for the 2711P-K4C5D8.
Exchange:	Exchange credit for your defective unit available.

To Speak to a sales representative for pricing & lead time:

Phone

1-800-730-0292

International

919-205-4392

Email

sales@dosupply.com

About 2711P-K4C5D8

The current Allen Bradley Panelview 6 Plus 2711P-K4C5D8 is an HMI that allows the user to interact with their machine. This operator interface has a 3.5 in. Color Display. This Panelview Plus 6 allows the user to connect using FactoryTalk View Machine Edition software and an RS-232 communication port with a 2711-NC14 communication cable(s). The user is able to control the operator interface by utilizing the Keypad to input information and data. This unit is powered using 18-30 VDC power. This unit has the following internal memory: 256 MB RAM. If applicable this unit has an internal backlight replacement part number of Non-replaceable. The approximate shipping weight and dimensions are 5 lbs. and 14 x 11 x 8 in. The most common Series are Series A and Series B and the most common firmware include 7.00-8.10. The RS-232 terminal is a multi-purpose serial port that supports several different connection methods. This Panelview port has the capability to communicate through: DH-485 communication using a serial connection, DF1 full-duplex exchanges with controllers via direct or modem connections, and third-party point-to-point communication. This port works with application transfers and printing as well. The serial port is a 9-pin, male, RS-232 connector, with a cable length of 15.24 meters. The RS-232 serial port supports uploads and downloads between the terminal and a computer with a direct connection.

Technical specifications:

Part Number:	2711P-K4C5D8
Product Line:	Panelview 6 Plus
Display Size:	3.5 in.
Display Color:	Color
Input Type:	Keypad
Communication:	RS-232
Input Power:	18-30 VDC
Software:	FactoryTalk View Machine Edition

Memory:	256 MB RAM
Backlight:	Non-replaceable
Communication Cable:	2711-NC14
Shipping Weight:	5 lbs.
Shipping Dimensions:	14 x 11 x 8 in
Series:	Series A and Series B
Firmware:	7.00-8.10

FAQ

The Panelview Plus 6 Graphic Terminals allows users to monitor, manage, and display application status information. The Panelview Plus 6 line has various model terminals: 400, 600, 700, 1000, 1250, and 1500. These terminals offer the open-platform flexibility of the Windows CE operating system and the compatibility of the FactoryTalk View Studio Machine Edition software. The FactoryTalk View software allows users to program their PanelView Plus 6 graphic terminals. They are available from 4 to 15 in. standard display sizes. The PanelView Plus 6 terminals use modular components that allow for flexible configuration, installation, and upgrades. Factory-assembled terminals have both a display module and a logic module. They are available as one catalog number or as separate components for field installation. The Panelview Plus family gives a wide range of rugged terminals that provide features like premier integration with an Integrated Architecture platform. The Panelview Plus terminals offer 4-inch to 15-inch displays with touchscreen, keypad, or both for input. These terminals also have common development software and real-time monitoring of terminal displays through a web browser. The Panelview Plus 6 provides significant improvements over the Panelview Plus 400 graphic terminals. The processor speed increased from 350 MHz to 1 GHz. The screen transition rate approximately 70% faster. The system memory increased from 64MB RAM to 256MB RAM and flash storage space increased from 64MB to 512MB. The illumination of backlight displays has increased. Also, there is greater connectivity to a variety of external hardware such as printers, mice, and keyboards. The Panelview Plus 6 supports ActiveX Controls and integrates with third-party software such as Microsoft Internet Explorer. Optional communication modules can be ordered for additional network communication.

We Can Repair Your Panelview Plus 6

We have a team of highly trained technicians that can repair your Panelview Plus 6 quickly at a great low price. To get a repair quote call 1-800-730-0292 or email sales@dosupply.com. Some of the benefits of our repair process includes:

Repair Turnaround of 3-5 Days for Most Panelview Plus 6
Rush Repairs of 1-3 Days
Fast Return of Your Repair via UPS, FedEx, or DHL.
If the item is not repairable, you can choose to have it returned to you free of charge or it can be counted as an exchange credit toward a refurbished or new unit if available.
Wide range of repairs that can be completed by our highly skilled technicians as shown below.
All Repairs Come With Our 1-Year Warranty!

Repair Capabilities

We Can Repair Your Hardware Failures Including:

Communication Failures
Broken Toushcreens/Keypads
Broken Glass
Displays (Dead/Dim/Lines/Missing Pixels)
Dead Backlights
Broken Housing/Bezel
Power Board Failures

Start UP Error Codes and Messages:

Load firmware image into RAM Update 1E
Write firmware image to storage Update A5
Load factory-default firmware image into RAM Restore E6
Write factory-default firmware image to storage Restore A5
Restore factory-default configuration data Restore DC
Firmware validation (CRC/format) failure Fatal 1E
Firmware failed to validate compatibility index of a firmware region Fatal 1F
Firmware update failure Fatal 0F
Firmware write to storage failure Fatal A5
Firmware stored image verification failure Fatal D2
Invalid or missing OS firmware image Fatal FF
Failed RAM Fatal 03
Stuck key Fatal 31
Stuck touch Fatal 3A
Failed backlight Fatal 3B
Failed to initialize restore operation Fatal R0
Failed restore because of invalid header in .pvb file Fatal R1
Failed restore because of invalid header Fatal R2
Failed restore because of inability to write intermediate files to terminal Fatal R3
Failed restored because of corrupt .pvb file Fatal R4
Watch dog reset Fatal 02
Boot loader attempting PC connection via USB device AutoTest OA
Boot loader loads firmware image into RAM AutoTest E6
Boot loader jumps to operating system AutoTest FF
Operating system starts up Boot G0
Operating system registration and initialization Init H1 - JA
Machine Edition registration and initialization Init K1 - MA
Machine Edition load and execute Init ME
