2711P-K6M20D8X

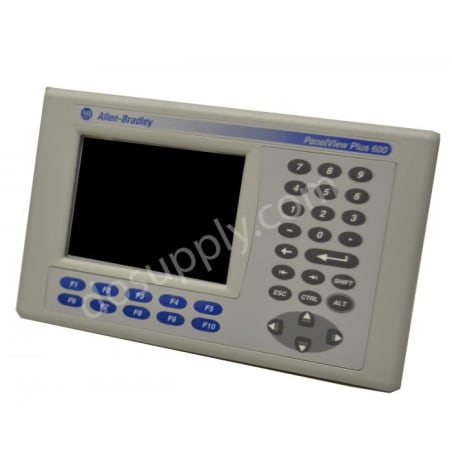

The 2711P-K6M20D8X is part of Allen Bradley's PanelView Plus 6 series, specifically designed for operator interface in industrial settings. This model features a 5.7-inch grayscale TFT LCD display, providing a resolution of 320 x 240 pixels. The display area measures 115 x 86 mm (4.5 x 3.4 inches), allowing for effective visualization of critical data and operational control.

An important aspect of this model is its white LED backlight, which has a lifespan of 25,000 hours at 25 °C. This contributes to prolonged usage, especially beneficial in environments with sustained operation requirements. The terminal supports a maximum of 1 million presses on its keypad, ensuring durability and reliability during regular use. Users can easily navigate through systems using the keypad, which includes function keys F1 through F10 for quick access to pivotal functions, as well as numeric input capabilities.

Internally, the 2711P-K6M20D8X is equipped with 256 MB of RAM alongside 512 MB of nonvolatile memory, approximately 79 MB of which is available for user applications. This ensures adequate space for configuration files, images, and other necessary data for operational tasks. Connectivity options include integrated Ethernet and RS-232 ports, allowing for versatile communication with other devices and networks.

Operating with an input voltage range of 18-32 VDC, this terminal is well-suited for various industrial applications. The memory capacity enhances its capability to store critical functions and settings. The communication cable used with this unit is the 2711-NC13, facilitating reliable connections. This unit operates under Series A and Series B specifications, ensuring compatibility across different configurations.
