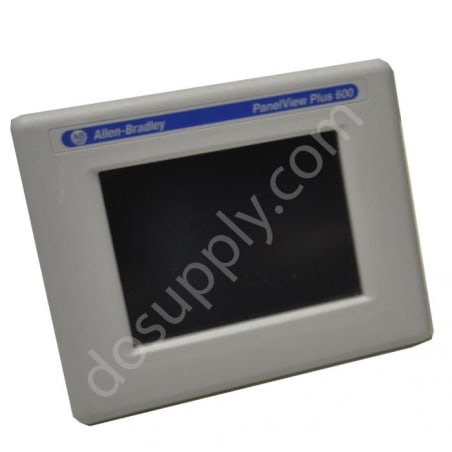

Allen Bradley Panelview Plus 6 2711P-T6C5A8X

Product image is representative; revision or series may vary. Contact us to request a specific version.

2711P-T6C5A8X

|
Need a Specific Revision?

The 2711P-T6C5A8X by Allen Bradley is engineered as an operator interface. It features a vibrant 5.7-inch color touchscreen display, designed for straightforward interaction in various applications.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 2711P-T6C5A8X

ManufacturerAllen Bradley
Product TypeOperator Interface
Product LinePanelview Plus 6
Part Number2711P-T6C5A8X
Weight1.50 lbs (0.68 kg)
TouchscreenIncluded
Voltage TypeAC
Voltage Rating100-240V AC
Frequency50-60 Hz
GraphicsColor Graphics
Screen Size5.7 Inches
RS-232 PortIncluded
Host USB PortIncluded
Device USB PortIncluded
RAM256 MB
Nonvolatile Memory512 MB
Free User MemoryApproximately 73 MB
View as PDF
Request a Repair

The Allen Bradley 2711P-T6C5A8X operates as a specialized operator interface within the PanelView Plus 6 series. The unit is built with a user-friendly 5.7-inch touchscreen that provides color graphics for clear visual representation. It effectively operates with an input voltage range of 100-240V AC and can handle a frequency spectrum of 50-60 Hz.

For communication and connectivity options, this interface includes an RS-232 port, as well as both host and device USB ports, which enhance its integration capabilities with other equipment. The internal specifications show that the 2711P-T6C5A8X is equipped with 256 MB of RAM, facilitating efficient data processing. Additionally, the unit includes 512 MB of nonvolatile memory to retain important configurations and settings even after power loss. Users have access to approximately 73 MB of free memory to utilize for specific applications.
