2711P-K6C5A8
The Allen-Bradley 2711P-K6C5A8 PanelView Plus 6 Operator interface 600 Terminal has a Keypad, a Color display, and an RS-232 communication port It is an AC Powered Unit.
Call
4.9
Free UPS Ground on All Orders!
+1 (919) 205-4392

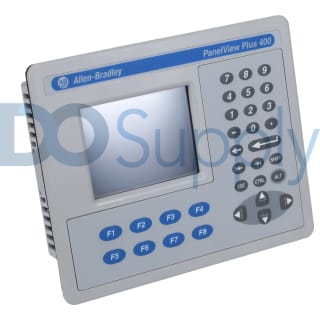

Allen Bradley Panelview Plus 6
The PanelView Plus 6 - 700 to 1500 terminals (700, 1000, 1250 and 1500) use modular components with value-added options for flexible system configuration; display module, logic module, and optional communication module. These terminals supports operator input via, via touch screen or via keypad and touch screen. These components are usable across the entire platform and install with minimal effort.
Learn more
Browse Panelview Plus 6
Browse available units in our catalog of Panelview Plus 6.
2711P-K6C20A9
The Allen-Bradley 2711P-K6C20A9 PanelView Plus 6 Operator interface 600 Terminal with a Keypad, a Color display, and Ethernet and RS-232 Communication ports. It is an AC Powered Unit.
Call
5.0
2711P-K6C5D9
The Allen-Bradley 2711P-K6C5D9 PanelView Plus 6 Operator interface 600 Terminal with a Keypad, a Color display, and an RS-232 communication port. It is a DC Powered Unit.
In Stock Ships Today
5.0
2711P-B6M5A8
The Allen-Bradley 2711P-B6M5A8 PanelView Plus 6 Operator interface 600 Terminal comes with Keypad/Touch options, a Grayscale Display, and an RS-232 communication port. It is an AC Powered Unit.
Available
4.6
2711P-K4C5A8
The Allen-Bradley 2711P-K4C5A8 PanelView Plus 6 Operator interface 400 Terminal has a Keypad, a Color display, and an RS-232 communication port It is an AC Powered Unit.
Available
4.7
2711P-K10C4A9
The Allen-Bradley 2711P-K10C4A9 PanelView Plus 6 Operator interface 1000 Terminal comes with a Keypad, a Color display, and Ethernet & RS-232 ports. It is an AC Powered Unit.
Available
4.6
2711P-K4M5A8
The Allen-Bradley 2711P-K4M5A8 PanelView Plus 6 Operator interface 400 Terminal has a Keypad, a Grayscale Display, and an RS-232 communication port. It is an AC Powered Unit.
Call
4.8
2711P-B6C5A8
The Allen-Bradley 2711P-B6C5A8 PanelView Plus 6 Operator interface 600 Terminal comes with Keypad/Touch options, a Color display, and an RS-232 communication port. It is an AC Powered Unit.
In Stock Ships Today
4.6
2711P-K7C4D9
The Allen-Bradley 2711P-K7C4D9 PanelView Plus 6 Operator interface 700 Terminal has a Keypad, a Color display, and Ethernet & RS-232 ports. It is a DC Powered Unit.
Available
5.0
2711P-K6C5D8
The Allen-Bradley 2711P-K6C5D8 PanelView Plus 6 Operator interface 600 Terminal has a Keypad, a Color display, and an RS-232 communication port. It is a DC Powered Unit.
Call
4.7
Showing 91-100 of
213
results
About Panelview Plus 6
The Panelview Plus 6 series is a series of operator interface terminals that are used as human-machine interfaces in industrial applications. The Panelview Plus 6 terminals feature displays that range from 4 to 15 inches in display sizes. The Panelview Plus 6 devices are used for application monitoring and control. The terminals also act as display panels, show graphical information, and let the application operators closely monitor the applications’ performance. The Panelview Plus 6 units are preprogrammed to use various development software. These units are also designed as multilingual units and they integrate into other systems easily. The Panelview Plus 6 units support the preferred Logix Controllers and they are commonly used with automation controllers. The Allen-Bradley controller interfaces feature the Windows CE operating systems and they provide foundational OS elements.
The Panelview Plus 6 terminals can be programmed to run open or closed desktop environments. The open system launches the Windows Explorer desktop on startup while the closed system launches the FactoryTalk® View Machine Edition application software on startup. The Panelview Plus 6 units support desktop configuration, allowing for system and control panel operations from the desktop. The Panelview Plus 6 series features terminals with optional extended features that can additionally run viewers and media players, and they can also launch the web browser. The Panelview Plus 6 series supports serial ports for controller communication, printing, and file transfers. These control terminals feature 1 USB port each for attaching the USB peripherals that include a mouse, keyboard, printer, and other external devices. The Panelview Plus 6 terminals also support a secure digital card that is used for file transfer and for upgrading the software.
PanelView Plus 6 Incorrect Start-Up
If the PanelView Plus 6 terminal is not starting up correctly always check for adequate power first. Inadequate power can cause a variety of unpredictable behavior. Simply verify the PanelView Plus 6 terminal's power requirement in the specifications table. If the indicator lights do not turn on, either the power supply or the logic module has failed. It is also good practice to determine whether there have been any changes since the last startup. Determine what these are to see if they can be reversed.
Battery voltage, as well as processor and display temperatures, are indicative of other potential issues as well. Check the battery voltage, CPU and display temperatures from the PanelView Plus 6 terminal desktop or from the FactoyTalk View ME station configuration mode. If the voltage is below 2.75 volts DC, consider replacing the battery. Obstructed airflow in the chassis can cause the CPU and/or display to overheat. If the CPU temperature is above 95 degrees Celsius or the display temperature is above 55 degrees Celsius, try to moderate the ambient temperatures.
If you continue have start-up issues with your PanelView Plus 6 terminal, observe the splash screen for state messages and for the status or error codes.
| Message | Code | State | Action |
| Failed RAM | 03 | Fatal | Replace Logic Module |
| Failed Backlight | 3B | Fatal | Replace Display Module |
| Stuck Touch | 3A | Fatal | Replace Display Module |
| Stuck Key | 31 | Fatal | Replace Display Module |
Please note: Power-on self-test errors are fatal and likely caused by failed hardware.
| Message | Code | State |
| Load Factory-Default Firmware Image into RAM | E6 | Restore |
| Write Factory-Default Firmware Image into Storage | A5 | Restore |
| Restore Factory-Default Configuration Data | DC | Restore |
| Write Firmware Image to Storage | A5 | Update |
| Load Firmware Image into RAM | 1E | Update |
| Invalid/Missing OS Firmware Image | FF | Fatal |
| Failed Firmware Stored Image Verification | D2 | Fatal |
| Failed Firmware Write to Storage | A5 | Fatal |
| Failed Firmware Update | 0F | Fatal |
| Firmware Failed to Validate Compatibility Index of Firmware Region | 1F | Fatal |
| Failed Firmware Validation (CRC/Format) | 1E | Fatal |
Fatal firmware errors may be recoverable. Try re-installing the firmware, reset the terminal or factory defaults from the maintenance menu.
| Message | Code | State |
| Machine Edition Load and Execute | ME | Init |
| Machine Edition Registration and Initialization | K1...MA | Init |
| Operating System Registration and Initialization | H1...JA | Init |
| Operating System Start Up | G0 | Boot |
| Boot Loader Jumps to Operating System | FF | AutoTest |
| Boot Loader Loads Firmware Image into RAM | E6 | AutoTest |
| Boot Loader Attempting PC Connection via USB Device | 0A | AutoTest |
Watch Dog Reset (State: Fatal, Code: 02) - Watch dog resets are typically caused by software failure. Simply watch for error repetition and take remedial action.
| Message | Code | State |
| Corrupt .pvb File - Restore Failure | R4 | Fatal |
| Unable to Write Intermediate Files to Terminal - Restore Failure | R3 | Fatal |
| Invalid Header - Restore Failure | R2 | Fatal |
| Invalid Header in .pvb File - Restore Failure | R1 | Fatal |
| Failure to Initialize Restore Operation | R0 | Fatal |
PanelView Plus 6 Status Indicators
Power indicators are located on the front of the PanelView 6 Terminal; they communicate the system status. The green LED indicator lets the operator know the system is running and the display is on, whereas the red LED indicator shows that the system is running but the display is in screen saver mode.
There are also two indicators on the back of the PanelView Plus 6 terminal, which help the operator identify operating issues. The Green Comm indicator reflects communication issues while the red Fault indicator reflects hardware faults. The table below helps identify potential problems if the terminal fails during startup.
| Fault Indicator (Red) | Comm Indicator (Green) | Meaning | Action |
| Possibly Recoverable | |||
| Blinking | Off | Previous Firmware Download Failure | Reload Firmware |
| Fatal Errors | |||
| On | Off | Logic Module Hardware Fault |
400 and 600 Terminals - Replace Terminal 700 - 1500 Terminals - Replace Logic Module |
| On | Blinking | Display Module Hardware Fault |
400 and 600 Terminals - Replace Terminal 700 - 1500 Terminals- Replace Display Module |
PanelView Plus 6 Terminal Component Anomalies
| Issue | Action |
| Dim/Unreadable Display |
Check Brightness Setting Control Panel on Desktop: Display>Backlight FactoryTalk View ME Station Configuration Mode: Terminal Settings>Display>Display Intensity |
| Backlight Shutting Off/Unexpectedly Dimming |
Check Screen Saver Setting Control Panel on Desktop: Display>ScreenSaver FactoryTalk View ME Station Configuration Mode: Terminal Settings>Display>Screen Saver |
| Issue | Action |
| Touch Screen Operating Incorrectly/Inaccurate Input and Dragging |
Calibrate Your Touch Screen: Control Panel on Desktop: Touch Display Dialog Box>Calibration Tab FactoryTalk View ME Station Configuration Mode: Terminal Settings>Input Devices>Touch Screen> Calibration |
| Screen Cursor Not Visible |
Verify the Cursor is Enabled: Control Panel on Desktop: Display>Advanced Tab FactoryTalk View ME Station Configuration Mode: Terminal Settings>Display>Cursor |
| Touch Screen Not Accepting Touch Input |
Attach USB Mouse: Mouse Works but Touch Screen Does Not: Touch Driver or Screen is Nonfunctional Neither Mouse Nor Touch Screen Working: Application Issue |
If the PanelView Plus 6 display lacks a touch screen, you may not have a touch screen display. Check the label on the terminal and the part number of the unit to verify.
Please Note: When calibrating your touch screen, the process requires five (5) screen touches. If the touches are not satisfactory, more will be requested until calibration is successful. If the touch screen does not calibrate or continues to malfunction replace the touch screen display for PanelView Plus 6 700-1500 models. Replace the entire PanelView Plus 6 terminal for 400-600 models.
| Issue | Action |
| Keyboard Operating Incorrectly | Reattach the USB keyboard, restart the terminal |
| Keyboard Rejecting Key Input |
Check Keypad Input - If keypad works either the keyboard driver or keyboard stopped working. If neither the keypad nor the keyboard work, an application failure is likely |
| Keyboard is USB Composite Keyboard and Mouse | Simply use a standalone USB keyboard |
| USB Keyboard is Non-Operational | Replace the USB keyboard. Current keyboard may be noncompliant |
| Issue | Action |
| Mouse Operating Incorrectly | Reattach USB mouse, restart terminal |
| Cursor Not Visible/Mouse Settings Require Adjustment |
Verify the Cursor is Enabled - Control Panel on Desktop: Display>Advanced Tab FactoryTalk View ME Station Configuration Mode: Terminal Settings>Display>Cursor Check Mouse Settings - Control Panel on Desktop: Mouse Dialog Box FactoryTalk View ME Station Configuration Mode: Terminal Settings>Input Devices>Mouse |
| Mouse is Composite Device (Keyboard and Mouse) | Replace with standalone mouse |
| USB Mouse Non-Operational | Replace the USB mouse. Current mouse may be noncompliant |
Reload PanelView Plus 6 Factory Settings
If your PanelView Plus 6 terminal failed a firmware update, you will need to reset the terminal to its factory settings.
Re-Set Process:
- Press/hold Default switch (located on the back of the logic module) and simultaneously press and release the Reset switch.
- Once you have released the Reset switch, release the Default switch. This will bring you to the maintenance menu.
- Select "Special BOOT Action - None"
- Select "Special BOOT Action - Restore Factory Defaults"
- Select "Continue booting with selected options"
- Press Enter on your keyboard. This will begin the default reset process
Repair Your PanelView Plus 6
Here at DO Supply, we offer repair services for your Allen-Bradley products, such as the Allen-Bradley PanelView Plus 6. Please click here for more information or to request a quote.
