2711PC-T6M20D8

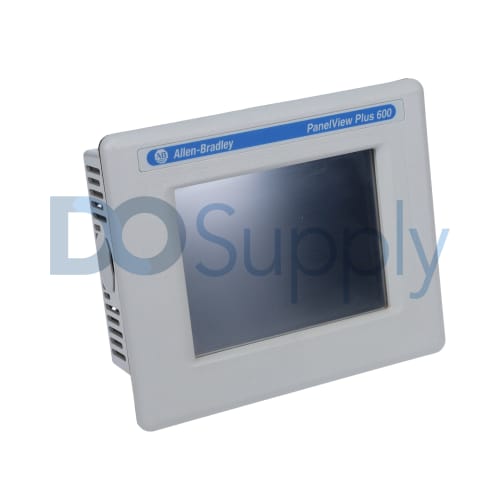

Description: The Allen-Bradley 2711PC-T6M20D8 is a Panelview Plus 6 600 Operator Terminal. This operator terminal is powered by an external 18-32VDC supply voltage and has a 5.7-inch monochrome display with embedded Ethernet, RS-232 and Two (2) USB ports. This operator terminal has a keypad and touchscreen input interface.
In Stock Ships Today
Request a quote for 2711PC-T6M20D8

Description: The Allen-Bradley 2711PC-T6M20D8 is a Panelview Plus 6 600 Operator Terminal. This operator terminal is powered by an external 18-32VDC supply voltage and has a 5.7-inch monochrome display with embedded Ethernet, RS-232 and Two (2) USB ports. This operator terminal has a keypad and touchscreen input interface.

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via DHL, UPS, Fedex, and TNT
Repairs: We offer repair service for the 2711PC-T6M20D8.
Exchange: Exchange credit for your defective unit available.

To speak to a sales representative for pricing & lead time:


Rated 4.9 with 7 reviews

    Technical Specifications for 2711PC-T6M20D8

Display Size5.7 in.
BrandAllen-Bradley
Manufacturer:Rockwell Automation
Product Family:PanelView Plus 6 Compact Terminals
Product Type:PanelView Plus 6 600 Compact Terminals
Operator Input:Touch
Display Type:Grayscale TFT LCD
Lifecycle status:End of life
Backlight:White LED, not replaceable; 25,000 hours min at 25 °C (77 °F)
Display Area:115 x 86 mm (4.5 x 3.4 in.)
Resolution:320 x 240, 18-bit color
Touch:Analog Resistive
Internal memory:256 MB RAM, 512 MB nonvolatile memory (approx. 79 MB free user memory)
Integrated ports:Ethernet, RS-232, 2 USB host
Input Voltage range:18-32VDC
Configuration Software:FactoryTalk View Machine Edition FactoryTalk View Site Edition
Part Number/Catalog No.2711PC-T6M20D8
Product LinePanelView Plus 6 Compact
Display ColorMonochrome
Input TypeTouchscreen
CommunicationEthernet and RS-232
Input Power24V DC
SoftwareFactoryTalk View Compact Machine Edition
Memory512 MB nonvolatile memory and 256 MB RAM
Enclosure TypeNEMA/UL Type 12, 13, 4X (indoor use only), and IEC IP66
Dimensions6.0 x 7.28 x 2.86 in.
UPC884951344662
Display Size5.7 in.
BrandAllen-Bradley
Manufacturer:Rockwell Automation
Product Family:PanelView Plus 6 Compact Terminals
Product Type:PanelView Plus 6 600 Compact Terminals
Operator Input:Touch
Display Type:Grayscale TFT LCD
Lifecycle status:End of life
Backlight:White LED, not replaceable; 25,000 hours min at 25 °C (77 °F)
Display Area:115 x 86 mm (4.5 x 3.4 in.)
Resolution:320 x 240, 18-bit color
Touch:Analog Resistive
Internal memory:256 MB RAM, 512 MB nonvolatile memory (approx. 79 MB free user memory)
Integrated ports:Ethernet, RS-232, 2 USB host
Input Voltage range:18-32VDC
Configuration Software:FactoryTalk View Machine Edition FactoryTalk View Site Edition
Part Number/Catalog No.2711PC-T6M20D8
Product LinePanelView Plus 6 Compact
Display ColorMonochrome
Input TypeTouchscreen
CommunicationEthernet and RS-232
Input Power24V DC
SoftwareFactoryTalk View Compact Machine Edition
Memory512 MB nonvolatile memory and 256 MB RAM
Enclosure TypeNEMA/UL Type 12, 13, 4X (indoor use only), and IEC IP66
Dimensions6.0 x 7.28 x 2.86 in.
UPC884951344662
s

About 2711PC-T6M20D8

The 2711PC-T6M20D8 PanelView Plus 6 is a compact graphics terminal by Allen-Bradley. Its hardware and software meet the needs of many mid-size applications. With its compact design, it is a popular HMI for use with CompactLogix controllers. The 2711PC-T6M20D8 comes with an RS-232 serial port, an Ethernet port and Two (2) USB ports. It can be configured with FactoryTalk software which supports up to 25 displays and 200 alarm messages. Either the RSLinx Enterprise software, version 5.20 or later or the KEPServer software can be used for making connections to a single CompactLogix controller.

The 2711PC-T6M20D8 600 compact graphics terminal has a 5.7-inch grayscale TFT LCD display with a resistive touch input. The terminal’s display has a resolution of 320 x 240 pixels. It weighs 1.31 lbs. and has dimensions of 6 x 7.28 x 2.86 in. It contains a 512 MB non-volatile flash memory and 256 MB RAM. It also supports Secure Digital (SD) card for external storage. It requires a DC input voltage of 18 - 30V DC (24V DC nominal) and its maximum power consumption is 15 W. For installation, the 2711PC-T6M20D8 can be panel-mounted with NEMA/UL Type 12, 13, 4X, and IP66-rated enclosures.

The 2711PC-T6M20D8 terminal runs the Windows CE 6.0 operating system with a built-in pdf viewer and standard features such as Network user interface, a command processor, a VNC server etc. With additional features such as ActiveX controls, backup restoration, and remote connectivity, it provides greater user flexibility. Devices such as a mouse or keyboard can be connected to the 2711PC-T6M20D8 for better control.

The 2711P-T6M20D8 is capable of File Transfer Protocol (FTP) wherein files may be sent or accessed via an Ethernet network. Additionally, this operator terminal supports VNC client access for remote connection to the device. It also has a pdf reader compatibility that is typically used to read instruction manuals and reports. All these are powered by the Windows CE Operating system. Additionally, this operator terminal also supports some of the standard Microsoft Windows commands.

FAQ for 2711PC-T6M20D8

What kind of operator input does the 2711PC-T6M20D8 have?


The 2711PC-T6M20D8 has a touch operator input.

What kind of display type does the 2711PC-T6M20D8 contain?


The 2711PC-T6M20D8 has a Grayscale TFT LCD display type.

What is the size of the display on the 2711PC-T6M20D8?


The 2711PC-T6M20D8 has a display that is 5.7 in.

What are the dimensions of the 2711PC-T6M20D8?


The 2711PC-T6M20D8 is 152 x 185 x 68 mm (6.0 x 7.28 x 2.86 in.).

What is the price of a 2711PC-T6M20D8 Allen Bradley PanelView Plus 6 Terminal?


Submit quote request, send us an email, or call 800-730-0292 for our best price.

Does DO Supply offer repair services for the 2711PC-T6M20D8 Allen Bradley PanelView Plus 6 Terminal?


Yes, DO Supply offers repair services for a variety of Allen-Bradley products, such as the 2711PC-T6M20D8. For more information or to request a repair quote, please click here.

What are the embedded communication ports of the 2711PC-T6M20D8?


The 2711PC-T6M20D8 has an RS232, Ethernet and Two (2) USB interfaces.

What is the operator input interface of the 2711PC-T6M20D8?


The 2711PC-T6M20D8 has an analog resistive, 4-wire touchscreen interface.

Does this operator terminal come with an external storage option?


Yes, the 2711PC-T6M20D8 may be installed with external storage such as Secure Digital (SD) card, cat. no.1784-SDx, supported by hot-swappable SD card slot USB flash drive that is supported by high-speed, hot-swappable, 2.0 USB host port.

Technical Description of 2711PC-T6M20D8

PanelView Plus 6 Compact series with Monochrome display with Ethernet and RS-232 communication, 24V DC input power, FactoryTalk View Compact Machine Edition software, and 512 MB nonvolatile memory and 256 MB RAM

Repair Services for 2711PC-T6M20D8

Type Lead Time Price Action
Repair Service 2-4 weeks $575.69cartAdd to Cart

Our highly skilled technicians can repair your 2711PC-T6M20D8. All of our repairs come with a 1 Year Warranty. Please contact us for additional information about our repair process.

Revisions for 2711PC-T6M20D8

Please refer to the manual for more information about the 2711PC-T6M20D8 such as the wiring diagrams, data sheets, firmware information and migration or obsolescence details.

Revision Part # Also Known as Availability
2711PC-T6M20D8/A, Series A, Rev A Request Quote
2711PC-T6M20D8X
2711PC-T6M20D8/X, Series X, Rev X Request Quote
Firmware Revisions

The 2711PC-T6M20D8 has several firmware revisions: 2711PC-T6M20D8-FRN 1.00, 2711PC-T6M20D8-FRN 1.01, and 2711PC-T6M20D8-FRN 1.02

Common misspellings:
  • 27l1PC-T6M20D8
  • 271lPC-T6M20D8
  • 2711PC-T6M2oD8
  • 2711PC-T6M20Db
  • 2711PCT6M20D8

Reviews for 2711PC-T6M20D8

Internal Review

"The 2711PC-T6M20D8 is a PanelView Plus 6 600 operator terminal with monochrome display. This operator terminal has a similar functionality compared to the 2711PC-T6C20D8 however, one major disadvantages of this operator terminal is that the 2711PC-T6M20D8 only has a monochrome display. Having a monochrome display eliminates the capability of displaying colored animations which may provide more information at a glance. " -DO Supply Tech
