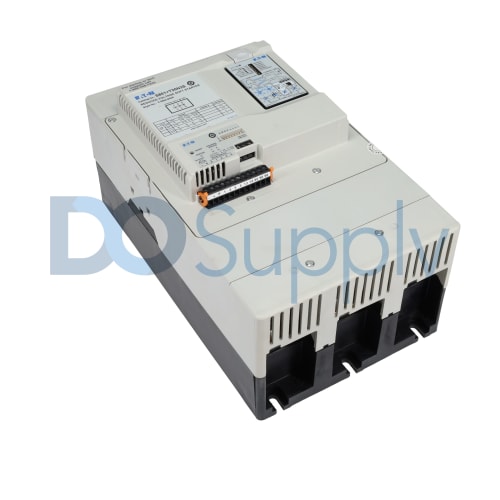

S801+T30N3S

The S801T30N3S motor starter is a 3-pole reduced voltage motor starter made by Eaton Cutler-Hammer that is a very compact multi-functional soft starter in the Eaton Cutler-Hammer S801 industrial-based soft starter series. It is designed to accelerate and decelerate 3-phase motors. The S810 open soft starter series features programmable built-in overload protection and run bypass contactors for enhanced motor protection, and they are fitted with 6 SCR controls for protection against damage from inrush currents. The S801T30N3S motor starter has a 3-pole connector with a maximum current capacity of 304 Amps, and a 200 to 600 Volts AC acceptable input range. It has 125 Horsepower output power rating and standard ramp time range of 0.5 to 180 seconds. The S801T30N3S motor starter has an insulation voltage of 660 Volts AC, with a 30 to 100% programmable overload setting range (30 to 100% of the rated current) and an internal bypass lifespan of up to 10 minutes. The S801T30N3S motor starter offers several starting modes which are the selectable kick start, the ramp start, and the current limiting start, and also a soft stop mode for smooth motor control. It has built-in protection from overheating, stalling, jamming, phase loss, and phase reversal situations, and it has the shorted SCR detection capability. The S801T30N3S motor starter comes with a load or line side-mounted add-on lug kit for easy connections, and it also has 24 Volts DC control which enhances user and equipment safety. It has a working temperature range of -30 and 50 degrees Celsius, and it is designed for tough and rugged industrial environments. The S801T30N3S motor starter is c-UL-us, CSA, and CE certified, and it has an average shipping weight of 21.8 kilograms.

The S801+T30N3S is a soft starter device that is manufactured by Eaton Corporation. This motor starter is part of the S801+ series of reduced voltage, compact soft starters. This soft starter has an operating voltage range of 200-600 Volts AC, 47-63 Hertz and delivers an output current of 304 Amperes and an output power of 60 Horsepower @ 200/208 Volts 3PH; 75 Horsepower @ 230/240 Volts 3PH; 150 Horsepower @ 460/480 Volts 3PH; 200 Horsepower @ 575/600 Volts 3PH.

The S801+T30N3S is an open-type soft starter that comes with built-in features including Bypass contactor, overload protection, adjustable ramp time, and adjustable torque control. It also comes with a variety of protective features including jam and stall detection; SCR overtemperature; phase loss and imbalance; automatic and manual reset capabilities; phase reversal; shorted SCR detection; under and overvoltage detection; undercurrent and internal diagnostics.

Available starting and stopping functions to this drive include Kick start which implements Voltage Ramp start and Current limit start; Soft stop for application that require and compatible with extended of ramping stop. It also has embedded control functions including Local control; level or edge sensing and Auto / Manual reset.

The S801+T30N3S has a ramp time range of 0.5 - 180 seconds, a soft stop time range of 0-60 seconds, a kick-start time range of 0-2 seconds, and an initial torque of 0-85%. It comes with embedded I/O terminals for Hardwired Start, Hardwired Stop, Jog, Overload Disable, and Fault Reset. It also has a Normally Open (N.O.) contact for internal bypass indication and a Normally Open (N.O) Fault indication relay contact.
