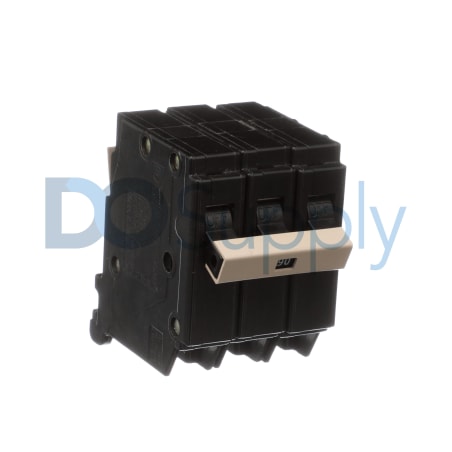

Product image is representative; revision or series may vary. Contact us to request a specific version.
CH3090
The CH3090 by Eaton Cutler-Hammer serves as a thermal magnetic circuit breaker designed for use in residential and commercial applications. This three-phase device operates at a voltage rating of 240 volts and supports a 90 ampere load.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for CH3090
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Thermal Magnetic Circuit Breaker |
| Product Line | CH Loadcenters and Circuit Breakers |
| Part Number | CH3090 |
| Weight | 0.81 lbs (0.37 kg) |
| UPC | 782113102399 |
| Phase | 3-Phase |
| Voltage Rating | 240 V |
| Poles | 3 Poles |
| Ampere Rating | 90 A |
| Trip Type | Common Breaker Trip |
| Mounting Type | Loadcenter |
| Application | Residential/Commercial |
| Interrupt Rating | 10 kAIC |
| Connection Type | Bolt-On |
| Trip Functions | Thermal & Magnetic |
| Terminals | Line & Load |
| Standards | UL/CSA |
The Eaton Cutler-Hammer CH3090 is a robust thermal magnetic circuit breaker primarily intended for residential and commercial usage. Operable within a voltage range of 240 volts, this device is configured as a three-pole unit designed to handle a maximum current of 90 amperes.
It features thermal and magnetic trip functionalities that ensure effective protection against overloads and short circuits, making it suitable for various environments. The CH3090 circuit breaker is designed with a common breaker trip type, allowing for coordinated responses in multi-pole configurations.
With an interrupt capacity rated at 10 kAIC, this circuit breaker can effectively manage significant fault conditions, enhancing the safety of connected equipment. Installation is straightforward via a bolt-on connection mechanism, ensuring a secure attachment to loadcenters.
Moreover, the terminals are organized for both line and load connections, optimizing installation flexibility. Adhering to strict UL and CSA standards, the CH3090 not only meets but exceeds reliability expectations, making it a favorable choice in its category.
