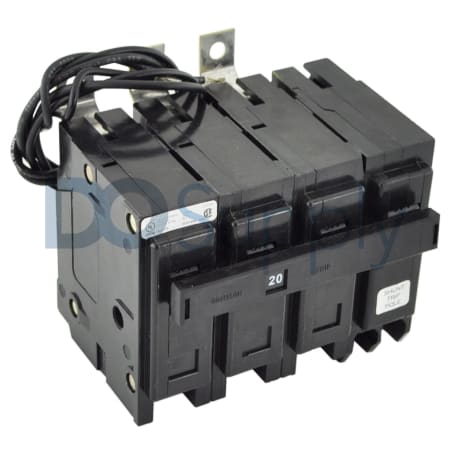

Eaton Cutler-Hammer QuickLag BAB3020HS

Product image is representative; revision or series may vary. Contact us to request a specific version.

BAB3020HS

|
Need a Specific Revision?

The BAB3020HS from Eaton Cutler-Hammer is a three-pole bolt-on circuit breaker designed for reliable circuit protection. It operates at a voltage rating of 240 Volts AC and has an ampacity of 20 Amperes.

Out of stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for BAB3020HS

ManufacturerEaton Cutler-Hammer
Product TypeBolt-on Circuit Breaker
Product LineQuickLag
Part NumberBAB3020HS
Weight1.25 lbs (0.57 kg)
GTIN00 786679509647
Poles3 Poles
Amperage Rating20 Amperes
Voltage Rating240 Volts AC
Interrupt Rating10 kA at 240 Volts AC
Factory AccessoryShunt Trip
Trip UnitThermal-Magnetic
MountingBolt On
Wire Size14-10 AWG
Trip MechanismThermal Magnetic Long-Time + Instantaneous Protection
CertificationsUL, CSA
Operating Temperature-10 to 60 Degrees Celsius
Request a Repair

The Eaton Cutler-Hammer BAB3020HS is categorized as a bolt-on circuit breaker. It is configured with three poles and is rated for 20 Amperes. This device operates at a voltage level of 240 Volts AC. The robust design allows for an interrupt rating of 10 kA, providing essential protection against overcurrents.

Equipped with a thermal-magnetic trip unit, this circuit breaker offers both long-time and instantaneous protection to safeguard against faults effectively. The product supports a wire size range of 14 to 10 AWG, making it versatile for various installations. Additionally, it comes with a shunt trip as a factory accessory for enhanced functionality.

Certified under UL and CSA standards, this circuit breaker is built to perform in environments with operating temperatures from -10 degrees Celsius to 60 degrees Celsius. The BAB3020HS circuit breaker thus ensures reliable performance and compliance with industry safety requirements.
