QBGFEP1020

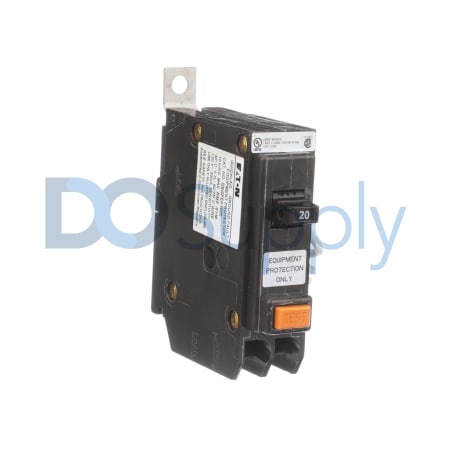

The QBGFEP1020 from Eaton Cutler-Hammer is a molded case circuit breaker suitable for a variety of applications. This unit features a single pole with a nominal voltage of 120 Volts AC and offers both long-time and instantaneous trip functions for enhanced protection.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for QBGFEP1020
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | QuickLag |
| Part Number | QBGFEP1020 |
| Weight | 0.44 lbs (0.20 kg) |
| UPC | 782113347509 |
| Trip Functions | Long-Time and Instantaneous (LI) |
| Poles Quantity | 1 pole |
| Trip Sensitivity | 30 milliamperes |
| Rated Frequency | 50 to 60 Hertz |
| Terminal Type | Box lug load terminal and extended tang line terminal |
| Connection Type | Bolt-on |
| Nominal Voltage | 120 Volts AC |
| Interrupt Current Rating | 10 kiloamperes at 120 Volts AC |
| Trip Amperage | 20 Amperes |
| Wire Size | 14 to 4 American Wire Gauge (AWG) |
| Phase Type | 1-phase |
| Compatible Wire Types | Aluminum or copper |
The Eaton Cutler-Hammer QBGFEP1020 is a molded case circuit breaker that functions effectively within a 1-phase configuration. This circuit breaker operates at 120 Volts AC and is designed with a trip amperage rating of 20 Amperes. Supporting a range of trip functions, it incorporates long-time and instantaneous (LI) capabilities to ensure reliable performance during overload scenarios. With a trip sensitivity set at 30 milliamperes, it offers precision in its tripping response.
The circuit breaker can handle an interrupt current rating of 10 kiloamperes, providing adequate protection against short circuits. This model is compatible with wire sizes spanning from 14 to 4 AWG, making it versatile for both aluminum and copper wire types. The unit features box lug load terminals and extended tang line terminals, both of which facilitate easy and secure connections.
Installation is accomplished through a bolt-on connection type, ensuring a stable and secure fit within the desired application. The QBGFEP1020 is rated for use in frequencies of 50 to 60 Hertz, making it suitable for a broad range of electrical systems. This circuit breaker is crucial for maintaining system integrity and safety in various industrial environments.
