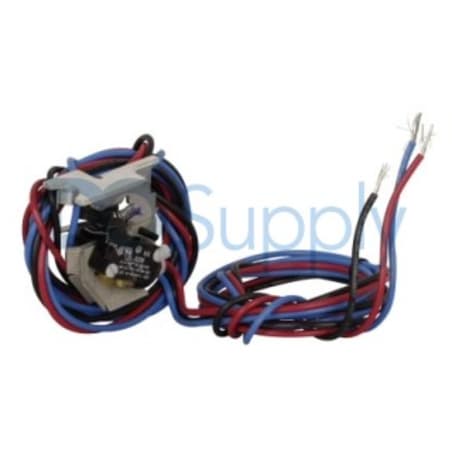

Product image is representative; revision or series may vary. Contact us to request a specific version.
AAL3LPK
The AAL3LPK from Eaton Cutler-Hammer is an alarm switch tailored for molded case circuit breakers. With an AC voltage rating of up to 600 VAC and a DC rating of 250 VDC, this switch supports a maximum current of 400 A, making it suitable for high-demand applications.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for AAL3LPK
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Alarm Switch for Molded Case Circuit Breaker |
| Product Line | Series C Circuit Breakers |
| Part Number | AAL3LPK |
| Weight | 0.44 lbs (0.20 kg) |
| UPC | 786679554449 |
| Rated Voltage AC | 600 VAC |
| Rated Voltage DC | 250 VDC |
| Rated Current | 400 A |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | 40°C |
| Minimum Storage Temperature | 0°C |
| Maximum Storage Temperature | 40°C |
| Breaker Compatibility | Series C, Type K Breakers |
| Operating Humidity | 80% (non-Condensing) |
| Installation Altitude | 1000 MSL |
The Eaton Cutler-Hammer AAL3LPK serves as an alarm switch for molded case circuit breakers, specifically designed for use with Series C and Type K breakers. This device boasts a robust specification, handling AC voltages of 600 VAC efficiently, alongside a DC voltage capability of 250 VDC. The switch facilitates a maximum current rating of 400 A, providing essential monitoring for substantial electrical loads.
Operating efficiently in environments with temperatures ranging from 0°C to 40°C, the AAL3LPK ensures reliable operation. It can also be stored under the same temperature conditions, allowing for flexibility and convenience during storage periods. This alarm switch supports an operational humidity level of 80% without condensation, making it fitting for various environments.
In addition, the device is designed for installations at altitudes of up to 1000 meters above mean sea level, enhancing its usability in a diverse range of applications. The part number for this model is AAL3LPK, and it is identifiable with a UPC code of 786679554449.
