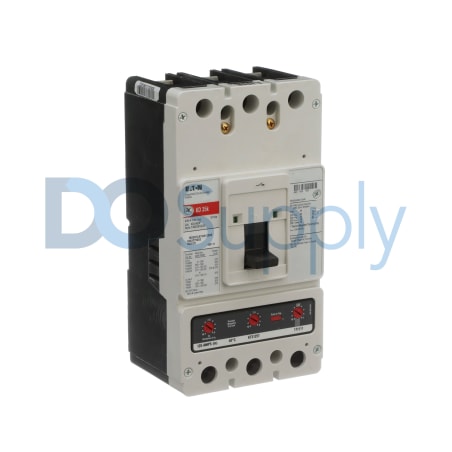

Product image is representative; revision or series may vary. Contact us to request a specific version.
KD3125
The KD3125 is a molded case circuit breaker from Eaton Cutler-Hammer's Series C. This product features a current rating of 125 amps and operates at an AC voltage rating of up to 600 VAC.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for KD3125
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | Series C Circuit Breakers |
| Part Number | KD3125 |
| Weight | 5.00 lbs (2.27 kg) |
| UPC | 786679349113 |
| Frame Type | K Frame |
| Number of Poles | 3 Poles |
| Current Rating | 125 A |
| AC Voltage Rating | 600 VAC |
| DC Voltage Rating | 250 VDC |
| Trip Type | Fixed Thermal and Fixed Magnetic (T186) |
| Terminals | Line and Load |
| Terminal Material | Aluminum |
| Interrupt Rating at 240 VAC | 65 kAIC |
| Interrupt Rating at 480 VAC | 35 kAIC |
| Operating Temperature | 40°C |
Designed as a reliable molded case circuit breaker, the Eaton Cutler-Hammer KD3125 serves effectively in various electrical applications. It supports a current rating of 125 A and can operate at an AC voltage of 600 VAC, or a maximum of 250 VDC. This unit features three poles, facilitating its use in diverse configurations.
The breaker utilizes fixed thermal and magnetic tripping methods, designated as T186, to protect circuits from overloads and short circuits. The terminals feature aluminum material, ensuring durability and conductivity.
With a maximum interrupting capacity of 65 kAIC at 240 VAC and 35 kAIC at 480 VAC, it is built to manage substantial fault conditions effectively. The KD3125 is rated for operation in environments where temperatures reach up to 40°C, accommodating a variety of installation scenarios.
This circuit breaker is equipped for both line and load connections, increasing its versatility in applications requiring secure and reliable electrical control.
