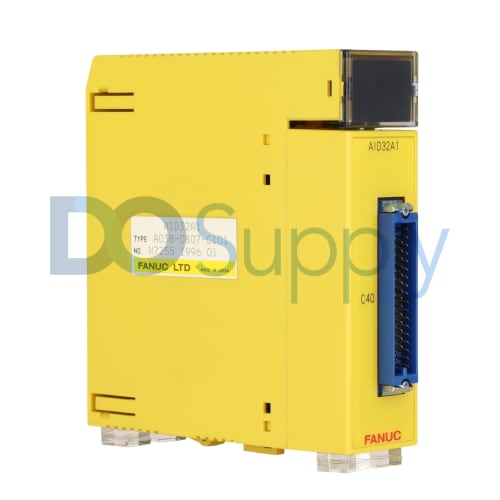

FANUC A03B A03B-0807-C101

Product image is representative; revision or series may vary. Contact us to request a specific version.

A03B-0807-C101

|
Need a Specific Revision?

The A03B-0807-C101 is a DC input module from FANUC's A03B series, designed for high-efficiency signal processing. Capable of handling 32 input points, it ensures quick responses in operations.

Out of stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for A03B-0807-C101

ManufacturerFANUC
Product TypeDC Input Module
Product LineA03B
Part NumberA03B-0807-C101
Weight0.56 lbs (0.26 kg)
Number of Input Points32 points
Rated Voltage24 Volts DC
Response Time20 milliseconds
Ambient Operating Temperature0 to 45°C (non-condensing environment)
Humidity Tolerance75% to 95% relative humidity (non-condensing environment)
Storage Temperature-20 to 60°C (non-condensing environment)
External Connection TypeConnector A (HONDA MR Connector)
Number of Connector Pins50-pin connector
Vibration Resistance0.5G or less
Request a Repair

The FANUC A03B-0807-C101 is a sophisticated DC input module that facilitates efficient connectivity for various industrial applications. This module supports up to 32 input points, ensuring versatile signal processing capabilities. It operates at a rated voltage of 24 Volts DC, delivering reliable power for accurate data transmission. Designed for fast response, the module reacts in just 20 milliseconds, promoting seamless operation within automated systems.

This component is designed to operate in a range of environmental conditions, with an operational temperature threshold between 0 °C and 45°C in non-condensing environments. Additionally, it is capable of functioning in high humidity conditions, withstanding relative humidity levels from 75% to 95%. The A03B-0807-C101 also features a storage temperature range of-20 °C to 60°C, ensuring stable performance under varied conditions.

Weighing 0.5 pounds (0.23 kilograms), this module features a dimensions of 5.25 inches in height, 5.25 inches in width, and 1.5 inches in depth (133.35 mm x 133.35 mm x 38.1 mm), making it compact and suitable for tight installations. It is equipped with a 50-pin connector for external connections, specifically the HONDA MR Connector type, simplifying integration with other devices. The module maintains a vibration resistance rating of 0.5G or less, protecting its internal components during operation. The insulation type is non-insulated, aligning with industrial guidelines for effective signal processing in diverse working environments.
