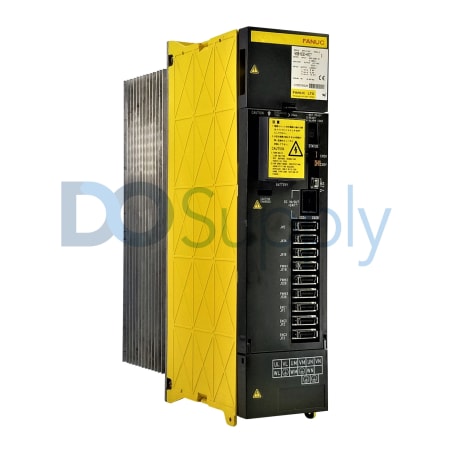

Product image is representative; revision or series may vary. Contact us to request a specific version.
A06B-6080-H307
The FANUC A06B-6080-H307 functions as a servo amplifier designed for CNC systems. Equipped with a PWM interface, this drive ensures precise control of triple-axis motion, operating effectively at a frequency of 50/60 Hz.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for A06B-6080-H307
| Manufacturer | FANUC |
|---|---|
| Product Type | Servo Amplifier (Servo Drive) |
| Product Line | A06B |
| Part Number | A06B-6080-H307 |
| Weight | 19.00 lbs (8.62 kg) |
| Application | CNC Systems |
| Frequency | 50/60 Hz |
| Cooling Method | Air Cooled |
| Control Type | PWM Interface |
| Mounting | Vertical/Wall-mounted |
| Protection Features | Overload, Overcurrent, Overvoltage Protection |
| Axis | Triple axis drive |
| Rated Voltage | 283-325 V |
| Operating Temperature | 0°C to 55°C |
| Rated Power | 4.35 kW |
| Rated Current | 5.9-12.5 A |
The A06B-6080-H307 from FANUC is classified as a servo amplifier critical for CNC system applications. This device operates at a frequency of 50/60 Hz and ensures efficient performance with a rated power output of 4.35 kW. It supports voltage inputs within the range of 283 to 325 Volts. The rated current for this unit varies, functioning effectively between 5.9 and 12.5 A.
Weighing 9.34 kg, the A06B-6080-H307 amplifier benefits from a vertical or wall-mounted design, which aids in space efficiency during installation. It's cooled via an air-cooling system, which enhances reliability during prolonged usage. Safety features include protection against overload, overcurrent, and overvoltage, thus ensuring the durability of both the amplifier and the connected systems.
This drive model is a triple-axis drive, providing precise motion control necessary for intricate applications. With an operating temperature range of 0°C to 55°C, it is suited for various industrial environments and maintains robust performance under specified conditions.
