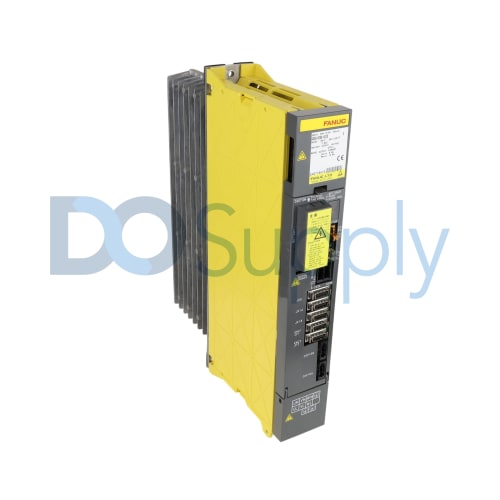

FANUC A06B A06B-6096-H205

Product image is representative; revision or series may vary. Contact us to request a specific version.

A06B-6096-H205

|
Need a Specific Revision?

The FANUC A06B-6096-H205 is a servo amplifier designed for precise motor control. This unit operates within a 200 to 230 volts AC voltage range and supports input frequencies of either 50 or 60 Hertz.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for A06B-6096-H205

ManufacturerFANUC
Product LineA06B
Part NumberA06B-6096-H205
Weight15.00 lbs (6.80 kg)
ProductServo Amplifier
Input Voltage200-230V AC
Input Frequency50/60 Hertz
Analog Control InputSupported
Digital Control InputSupported
Operating Temperature0 to 40 degrees Celsius
Maximum Vibration5G
Maximum Altitude1000 Meters Above Sea Level
Overcurrent ProtectionSupported
Overvoltage ProtectionSupported
Thermal ProtectionSupported
LED Status IndicatorsIncluded
L-Axis Output Current5.9 Amps
M-Axis Output Current12.5 Amps
Approximate Dimensions200 x 75 x 235 mm
Request a Repair

The FANUC A06B-6096-H205 is a specialized servo amplifier suited for critical applications requiring accurate control. It accepts an input voltage from 200 to 230 volts AC and operates with 50 or 60 Hertz input frequencies. The amplifier can handle analog and digital control inputs, allowing flexibility in various setups.

This model operates safely within a 0 to 40 degrees Celsius temperature range. It is designed to withstand maximum vibrations of 5G, ensuring reliable operation in demanding environments. Additionally, the amplifier can function at altitudes reaching 1000 meters above sea level.

Protection features include overcurrent, overvoltage, and thermal safeguards, ensuring the unit operates within safe limits. It also includes LED status indicators for easy monitoring of operational conditions. The output current specifications denote 5.9 Amps for the L-Axis and 12.5 Amps for the M-Axis, ensuring sufficient power for motors.

With approximate 200 x 75 x 235 mm dimensions, this unit is compact, facilitating installation in tight spaces. The design reinforces its application across various industrial contexts where dependable performance is paramount.
