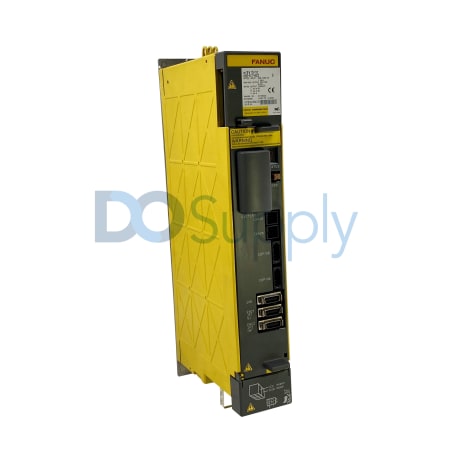

FANUC A06B A06B-6117-H202

Product image is representative; revision or series may vary. Contact us to request a specific version.

A06B-6117-H202

|
Need a Specific Revision?

The A06B-6117-H202, produced by FANUC, is a servo amplifier module designed for precise control applications. It accommodates a wide output frequency range and is engineered for reliable operation under varying environmental conditions.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for A06B-6117-H202

ManufacturerFANUC
Product LineA06B
Part NumberA06B-6117-H202
Weight11.00 lbs (4.99 kg)
TypeServo Amplifier Module
Input Voltage283-339 VDC
Rated Input Power0.32 kW
Input Frequency50/60 Hz
Output Voltage200-240 VAC
Rated Output Current1.5 A (L-axis), 3 A (M-axis)
Output Frequency Range0.1 - 800 Hz
Min. Ambient Operating Temp.0°C
Max. Ambient Operating Temp.55°C
Ambient Humidity90% RH or less (No condensation)
Request a Repair

The FANUC A06B-6117-H202 is a highly functional servo amplifier module built for diverse motion control applications. The device operates with an input voltage ranging from 283 to 339 VDC, suitable for various electrical systems.

With a power output capability of 0.32 kW, it is structured to handle servo applications efficiently. The output voltage is specified within the 200 to 240 VAC range, covering different operational needs. Users can expect flexibility in operation, as the module supports an output frequency range from 0.1 to 800 Hz.

This module is designed to work effectively in tough environments. Its specified ambient temperature range allows for operation between 0°C and 55°C. Additionally, it can function in conditions of 90% relative humidity or lower, ensuring that no condensation alters its performance. This amplifier's rated output current is 1.5 A for the L-axis and 3 A for the M-axis, making it suitable for multi-axis control applications. Overall, the A06B-6117-H202 module is reliable, robust, and adaptable for advanced motion control tasks.
