IC670CHS102

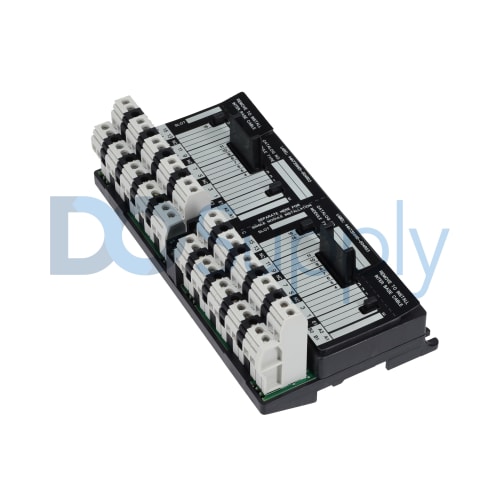

The IC670CHS102, a product from GE Fanuc Emerson's Field Control series, functions as a field control I/O terminal block. It comprises a box-style design, ensuring convenient access to wiring connections. The device boasts a total of 37 screw connection points, which enhances its utility in various applications requiring secure connections.

For installation, this terminal block is designed to be mounted directly onto a 35 mm DIN rail. It supports multiple terminal groups, specifically groups A, B, and E, which provide flexibility in configuration. In terms of environmental specifications, the IP20 rating indicates a basic level of protection against solid objects but not against liquids. The operational temperature range spans from 0°C to a maximum of 60°C, ensuring reliable function in standard industrial conditions.

Additionally, the IC670CHS102 can be stored efficiently in environments ranging from -40°C to 85°C, asserting its versatility across different conditions. It is designed to operate within a relative humidity range of 5% to 95% without condensation, making it suitable for diverse environments while maintaining performance integrity.
