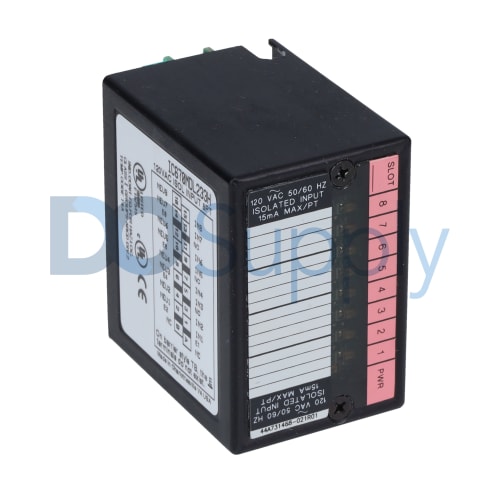

IC670MDL233

The IC670MDL233 input module is designed and produced by GE Fanuc and it features 120 Volts AC isolated inputs. This Field Control module has 8 discrete inputs and it has a frequency of 50 to 60 Hertz. The module requires bus interface power and the attached input devices are powered by an internal power supply. The module has a "PWR" LED for indicating the condition of the backplane power and there are dedicated LED indicators for the on and off status of the inputs. The IC670MDL233 input module has an input voltage range of 0 to 132 Volts AC and it responds within 10 to 20 milliseconds. The off-state response time is 20 to 40 milliseconds. The IC670MDL233 input module has a typical impedance of 10K and an on-state current of 5 to 15 milliamps. Also, the module has an off-state current of 0 to 2.5 milliamps.

The on-state voltage of the IC670MDL233 input module is 70 to 120 Volts AC while the off-state voltage is 0 to 20 Volts AC. As far as the isolation characteristics are concerned, the isolation voltage of the unit is 250 Volts AC for continuous work and 1500 Volts AC for 1 minute. The IC670MDL233 input module offers filtering of the input signal due to the functionality of the internal parts. Also, the module has special isolators that enable isolation between different components of the module. The data buffer of the IC670MDL233 module contains data from all 8 inputs and the featured circuit LED indicators display the status of inputs. The module has a maximum bus interface current draw of 40 milliamps.
