IC670ALG320

Revisions: -CCA1 -JCA1 C J JD K L
Description: The IC670ALG320 is an 4-Point Analog Current / Voltage Source Output Module from the Field control series of GE Fanuc. This module has Four (4) single-ended output channels configurable for 0-20 mA / 4-20 mA and 0-10 VDC output channels with resolution of 12 bits and 1 LSB linearity and all ranges and outputs. It requires an external power supply ranging 20-29 VDC, 24 VDC typical.
In Stock Ships Today
Request a quote for IC670ALG320

Description: The IC670ALG320 is an 4-Point Analog Current / Voltage Source Output Module from the Field control series of GE Fanuc. This module has Four (4) single-ended output channels configurable for 0-20 mA / 4-20 mA and 0-10 VDC output channels with resolution of 12 bits and 1 LSB linearity and all ranges and outputs. It requires an external power supply ranging 20-29 VDC, 24 VDC typical.

Preowned

Includes a 1-Year DO Supply warranty.

DO Supply is not an authorized distributor for GE Fanuc.

top legal disclaimer
disclaimer
credit cards
better business bureau
Revisions: -CCA1 -JCA1 C J JD K L

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via DHL, UPS, Fedex, and TNT
Repairs: We offer repair service for the IC670ALG320.
Exchange: Exchange credit for your defective unit available.
Conditions: We sell preowned surplus and refurbished parts.

To speak to a sales representative for pricing & lead time:


Rated 4.6 with 17 reviews

    Technical Specifications for IC670ALG320

BrandGE Fanuc
SeriesField Control
ManufacturerGE Fanuc
Manufacturer GE Fanuc
Part NumberIC670ALG330
Series Field I/O control
Wiring configuration Single-ended
DescriptionAnalog output module
Product Description 4-Point Analog Current / Voltage Source Output Module
Output signal, nominal 0-20 mA / 4-20 mA; 0-10 VDC
Current4-20 mA
No of Channels Four (4) Current / Voltage Source outputs
Analog resolution4.0 µA @ 4-20 mA; 50 µA @ 0-20 mA; 0-10 VDC @ 2.5 mV
Voltage0-10 Volts
Output signals 0-20 mA; 4-20 mA; 0-10 VDC; 0-12.5 VDC
ADC Conversion resolution12 bits
Output Data4 words
Isolation1500 VAC for 1 minute, 250 VAC continuous
External Power supply 20-29 VDC, 5 % maximum ripple
Isolation to Ground and Logic1500 Volts AC
Conversion time @ 1MHz clock 60 Microseconds per channel, typical
Nominal Supply voltage24 VDC
Digital Resolution12 bits, typical
Analog resolution 4.0 µA @ 4-20 mA; 5.0 µA @ 0-20 mA; 2.5 mV @ -10 VDC; 0-12.5 VDC @ 3.125 mV
Current input Stand-by: 80 mA, typical: Operating: 180 mA, maximum
Linearity1 LSB resolution value
Current Drawn from BIU power supply 51 mA, maximum
Input TypesIsolated and Differential
Temperature coefficient +/-.002% of value per degree C, typical, +/-.005% of value per degree C, maximum
Module Power Dissipation1.4 Watts, minimum; 4.3 Watts, maximum
Input Current: Standby: 80 mA Operating: 180 mA (including loop current),
Ground to Logic Isolation1500 VAC for 1 minute; 250 VAC, continuous
Product Lifecycle StatusDiscontinued/Obsolete
Output groupingSingle group
Output wiring Single-ended
BrandGE Fanuc
SeriesField Control
ManufacturerGE Fanuc
Manufacturer GE Fanuc
Part NumberIC670ALG330
Series Field I/O control
Wiring configuration Single-ended
DescriptionAnalog output module
Product Description 4-Point Analog Current / Voltage Source Output Module
Output signal, nominal 0-20 mA / 4-20 mA; 0-10 VDC
Current4-20 mA
No of Channels Four (4) Current / Voltage Source outputs
Analog resolution4.0 µA @ 4-20 mA; 50 µA @ 0-20 mA; 0-10 VDC @ 2.5 mV
Voltage0-10 Volts
Output signals 0-20 mA; 4-20 mA; 0-10 VDC; 0-12.5 VDC
ADC Conversion resolution12 bits
Output Data4 words
Isolation1500 VAC for 1 minute, 250 VAC continuous
External Power supply 20-29 VDC, 5 % maximum ripple
Isolation to Ground and Logic1500 Volts AC
Conversion time @ 1MHz clock 60 Microseconds per channel, typical
Nominal Supply voltage24 VDC
Digital Resolution12 bits, typical
Analog resolution 4.0 µA @ 4-20 mA; 5.0 µA @ 0-20 mA; 2.5 mV @ -10 VDC; 0-12.5 VDC @ 3.125 mV
Current input Stand-by: 80 mA, typical: Operating: 180 mA, maximum
Linearity1 LSB resolution value
Current Drawn from BIU power supply 51 mA, maximum
Input TypesIsolated and Differential
Temperature coefficient +/-.002% of value per degree C, typical, +/-.005% of value per degree C, maximum
Module Power Dissipation1.4 Watts, minimum; 4.3 Watts, maximum
Input Current: Standby: 80 mA Operating: 180 mA (including loop current),
Ground to Logic Isolation1500 VAC for 1 minute; 250 VAC, continuous
Product Lifecycle StatusDiscontinued/Obsolete
Output groupingSingle group
Output wiring Single-ended
s

About IC670ALG320

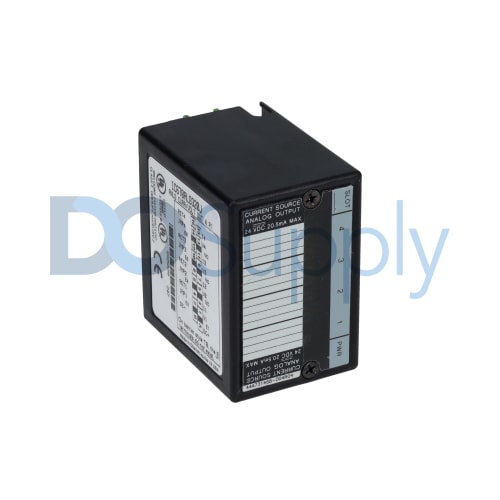

The IC670ALG320 is an analog output module that is part of GE Fanuc’s Field Control I/O series. This module is typically used for actuating control devices such as modulating control valves, dampers, louvers, positioners and similar devices. It may also be used for signal retransmission for connection to panel meters, signal isolators, signal splitters, external single and multi-loop controllers and data loggers.

The IC670ALG320 is specifically a current and voltage sourcing output module. It has a built-in EMI filter Analog to Digital Converter (ADC) circuit to every channel of the module. This ADC has conversion resolution of 12-bits, typical and linearity of 1 LSB resolution on all ranges and output signals. At 0-20 mA, the module’s typical analog resolution is 5.0 micro Amperes and 4.0 micro Amperes at 4-20 mA range while at 0-10 VDC, the analog resolution is 2.5 mV.

This module features a single group of outputs with isolation to ground and logic rated 1500 VAC for 1 minute and 250 VAC, continuous. This module requires an external power supply voltage of 20-29 VDC with 5% maximum ripple. It has a stand-by input current of 80 mA and operating current requirement of 180 mA. The module’s power dissipation is minimum of 1.5 Watts and maximum of 4.3 Watt while the module’s current draw from the Bus Interface Unit (BU) power supply is maximum of 51 mA.

For noise immunity, this module is recommended to be used with instrumentation grade shielded twisted or 3-pair twisted wire. The shield wire should be connected at the enclosure’s grounding bar, nearest to the module.

The IC670ALG320 output module is an GE Fanuc analog output module. It comes with a group of 4 current/voltage outputs. It supports a current range between 4 and 20 milliamps and a voltage range between 0 and 10 Volts. The current and voltage range can also be changed by using an additional jumper on the terminal block of the I/O. The module can be easily scaled to match different application demands by making changes in the configuration settings. The power supply of the module can also be used to power the bus interface unit. It can also be used for isolated transducers and analog inputs (isolated and differential). The IC670ALG320 output module has an LED on the front that shows the field and backplane power status for the module.

The IC670ALG320 output module uses 4 words for analog output data. The output modules help to process the analog values from the host or processor into the current output. The module provides options for keying. For scaling, the module uses the INT unit on the HHM configuration that responds to the actual desired output. The isolation to ground and logic for the module is 1500 Volts AC for a time period of 1 minute and it is 250 Volts AC for a continuous time period. The digital resolution of the output module is 12 bits. The IC670ALG320 output module is designed with open architecture and it should be protected from water splashes. It should be installed in a clean place that contains no dust, dirt, or harmful emissions.

FAQ for IC670ALG320

1. What are the analog output signals delivered by the IC670ALG320?


The IC670ALG320 delivers 0-20 mA; 4-20 mA; 0-10 VDC and 0-12.5 VDC.

2. What is the recommended mounting of the IC670ALG320?


The IC670ALG320 assembly is mounted to a DIN rail.

3. What is the digital resolution of the IC670ALG320?


The IC670ALG320 has digital resolution of 12 bits.

1. What is the digital output resolution of the IC670ALG320?


The IC670ALG320 has digital output resolution of 12-bits.

2. How many output channels does the IC670ALG320 have?


The IC670ALG320 has Four (4) Voltage / Current sourcing output channels.

3. What is the power supply requirement of the IC670ALG320?


The IC670ALG320 requires an input supply voltage range of 20-29 VDC.

Technical Description of IC670ALG320

The IC670ALG320 is a Field Control I/O module that is manufactured by GE Fanuc. This module is a Current / Voltage source analog output module featuring Four (4) analog output channels delivering 0-20 mA; 4-20 mA; 0-10 VDC and 0-12.5 VDC signals. This module requires an external 24 VDC supply voltage with isolation to ground and logic of 1500 VAC for 1 minute, 250 VAC continuous. This module has digital resolution of 12 bits and analog resolution of 4.0 µA @ 4-20 mA; 5.0 µA @ 0-20 mA; 2.5 mV @ -10 VDC and 0-12.5 VDC @ 3.125 mV.

Repair Services for IC670ALG320

Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote

Our highly skilled technicians can repair your IC670ALG320. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Revisions for IC670ALG320

Please refer to the manual for more information about the IC670ALG320 such as the wiring diagrams, data sheets and migration or obsolescence details.

Revision Part # Also Known as Availability
IC670ALG320-CCA1
IC670ALG320-CCA1, Series CCA1, Rev CCA1 Request Quote
IC670ALG320-JCA1
IC670ALG320-JCA1, Series JCA1, Rev JCA1 Request Quote
IC670ALG320C
IC670ALG320-C, Series C, Rev C Request Quote
IC670ALG320J
IC670ALG320-J, Series J, Rev J Request Quote
IC670ALG320JD
IC670ALG320-JD, Series JD, Rev JD Request Quote
IC670ALG320K
IC670ALG320-K, Series K, Rev K Request Quote
IC670ALG320L
IC670ALG320-L, Series L, Rev L Request Quote
Common misspellings:
  • 1C670ALG320
  • IC67oALG320
  • IC670A1G320
  • IC670ALG32o
  • IC670ALG320

Reviews for IC670ALG320

Product Review

"The IC670ALG320 is an analog output module from the Field I/O control family. This module has selectable output channels, configurable for current and voltage signals specifically, 0-20 mA; 4-20 mA; 0-10 VDC and 0-12.5 VDC. In terms of practicality, configurable output channels is ideal as it provides flexibility to more signal types however, it may cost much higher compared to a dedicated current or voltage module. " -DO Supply Tech

Product Review

"The IC670ALG320 is a GE Fanuc Field control I/O. This module is an analog output voltage / current module operating in sourcing mode with Four (4) output channels which is lesser compared to the output channels available to the IC670ALG330 output module. " -DO Supply Tech

Dimensions For IC670ALG320

Size
Input Type
Panel Cutout Height in mm
Panel Cutout Width in mm
Terminal Height in mm
Terminal Width in mm
Terminal Overall Depth in mm
Terminal Mounted Depth in mm

Dimensions For IC670ALG320

Resolutions For IC670ALG320
