IC687BEM731

Revisions: AA AB L P S T

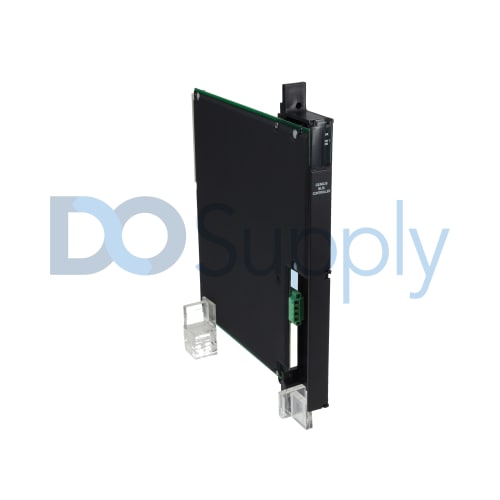

Description: The GE Fanuc Automation IC687BEM731 WME bus controller operates with a bus voltage of 5 Volts and a current of 1.3 Amps. It has 1 built-in handheld monitor port.
In Stock Ships Today
Request a quote for IC687BEM731

Description:

The GE Fanuc Automation IC687BEM731 WME bus controller operates with a bus voltage of 5 Volts and a current of 1.3 Amps. It has 1 built-in handheld monitor port.



top legal disclaimer
disclaimer
credit cards
better business bureau
Revisions: AA AB L P S T

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via DHL, UPS, Fedex, and TNT
Repairs: We offer repair service for the IC687BEM731.
Exchange: Exchange credit for your defective unit available.

To Speak to a sales representative for pricing & lead time:

phone

International
919-205-4392

Rated 5 with 10 reviews

    Technical Specifications for IC687BEM731

BrandGE Fanuc
SeriesRx7i PACsystem
Part NumberIC687BEM731
EquipmentBus controller
TypeVME
Current1.3 Amps
Voltage5V Bus
LocationAny
SpaceSingle-slot
RedundancySupported
Built-in Serial Ports1 (Handheld monitor port)
SoftwareHandheld Monitor
Temperature0 to 60 degrees Celsius
BrandGE Fanuc
SeriesRx7i PACsystem
Part NumberIC687BEM731
EquipmentBus controller
TypeVME
Current1.3 Amps
Voltage5V Bus
LocationAny
SpaceSingle-slot
RedundancySupported
Built-in Serial Ports1 (Handheld monitor port)
SoftwareHandheld Monitor
Temperature0 to 60 degrees Celsius
s

About IC687BEM731

The IC687BEM731 controller is a WME bus controller that has been designed and manufactured by GE Fanuc Automation and included in the RX7i PACsystem series. This bus controller is meant to be used with different equipment from this series, and it also supports system redundancy. This redundancy means that critical information is stored in a device that is connected to the whole system. A constant backup of the relevant information to the process is made in this second device and it can be used whenever necessary as the main device. The GE Fanuc Automation IC687BEM731 WME bus controller does not include discrete points, programmer effective data rate measurements, or effective data rate measurements This controller occupies a single slot. The operating temperature range allowed for this controller goes from 0 to 60 degrees Celsius.


The GE Fanuc Automation IC687BEM731 WME bus controller includes one handheld monitor port which works as a built-in serial port and it operates with a current rating of 1.3 Amps. This bus controller does not provide isolation. The GE Fanuc Automation IC687BEM731 WME bus controller can be installed in any industrial location and several connections are supported by this module including daisy-chain connections, shielded twisted pair cable connections, and other cable connections. This module provides interfaces to up to 31 devices and each one of them needs to be installed separately. The main purpose of a bus controller is to monitor the voltage and temperature of different devices, especially those that have been configured specifically to be monitored by it.

Repair Services for IC687BEM731

Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote

Our highly skilled technicians can repair your IC687BEM731. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Revisions for IC687BEM731

Please refer to the manual for more information about the IC687BEM731 such as the wiring diagrams, data sheets, firmware information and migration or obsolescence details.

Revision Part # Also Known as Availability
IC687BEM731AA
IC687BEM731-AA, Series AA, Rev AA Request Quote
IC687BEM731AB
IC687BEM731-AB, Series AB, Rev AB Request Quote
IC687BEM731L
IC687BEM731-L, Series L, Rev L Request Quote
IC687BEM731P
IC687BEM731-P, Series P, Rev P Request Quote
IC687BEM731S
IC687BEM731-S, Series S, Rev S Request Quote
IC687BEM731T
IC687BEM731-T, Series T, Rev T Request Quote
