IC697VAL132

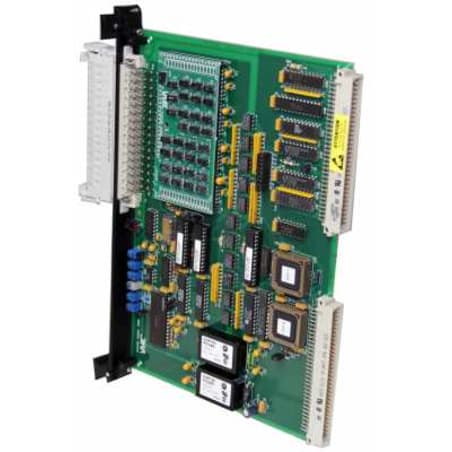

The IC697VAL132 is an input module within GE Fanuc Emerson's RX7i PACSystem series that specializes in converting analog signals to digital formats. It supports various input currents, making it suitable for diverse applications.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for IC697VAL132
| Manufacturer | GE Fanuc Emerson |
|---|---|
| Product Line | Rx7i PACsystem |
| Part Number | IC697VAL132 |
| Weight | 3.00 lbs (1.36 kg) |
| Module Type | Input Module |
| Input Type | Analog-to-Digital Converter, Current |
| Number of Differential Channels | 16 |
| Number of Single-Ended Channels | 31 |
| Current Resolution | 12 Bits |
| Analog Input Current | 0 mA to 20 mA, 4 mA to 20 mA, or 5 mA to 25 mA |
| Isolation | 1500V RMS (any input to the backplane) |
| Minimum Impedance | 10 Mohm (line-to-common and line-to-line) |
| Maximum Required Current from 5V Bus | 2.5A |
Within the RX7i PACSystem series, the IC697VAL132 input module operates as an analog-to-digital converter, focusing on current inputs. It comprises 16 differential channels alongside 31 single-ended channels, ensuring versatility in measurement options. Each channel offers a current resolution of 12 bits, allowing for precise data interpretation.
The module accommodates a range of input currents, specifically 0 mA to 20 mA, 4 mA to 20 mA, and 5 mA to 25 mA, enabling it to interface with various sensors and devices in an industrial setting. A significant feature is its isolation level, rated at 1500V RMS between any input and the backplane. This high level of isolation is crucial for protecting the system from electrical noise and surges.
For optimal performance, the IC697VAL132 has a minimum impedance of 10 Mohm for both line-to-common and line-to-line configurations. It requires a maximum current draw of 2.5A from the 5V bus, ensuring it operates efficiently within the PACSystems architecture. The module is also compatible with the Series 90-70 product line, allowing for integration into existing systems.
