IC200CHS101

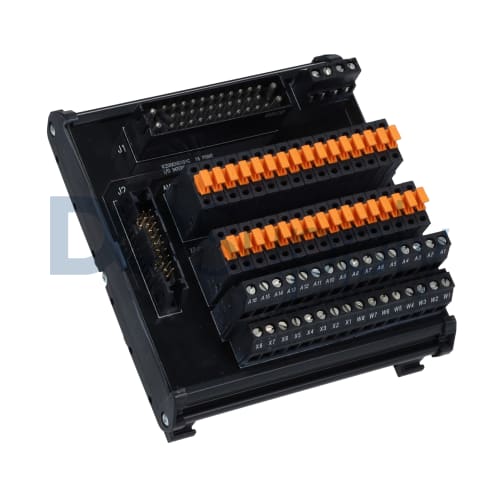

The GE Fanuc Emerson IC200CHS101, part of the Versamax series, consists of disconnect-style interposing I/O terminals that offer robust utility for industrial applications. This module has been engineered to manage an array of wire sizes effectively. For solid copper wires, it can accommodate sizes ranging from 0.2 to 4.0 mm². Stranded copper wire connections are also supported, with size compatibility from 0.2 to 2.5 mm².

This interposing I/O module features a total of 36 box-style terminals, arranged to allow optimal space usage with 2 inches of vertical spacing and 1 inch of horizontal spacing. Each terminal secures wire connections with an appropriate torque specification ranging from 0.5 to 0.6 Nm, creating a reliable and stable connection. Furthermore, it supports dual-wire capability, which permits a maximum of two wires per terminal, enhancing its versatility in wiring configurations.

The input/output configuration is designed around 16 distinct I/O points, catering to various operational requirements. A J1 connector interface allows it to interface with an I/O carrier, while an additional J2 connector is available for expanding connectivity options through an expansion base. It includes mechanical isolation for signal integrity, and is classified under pollution degree 2, indicating readiness for typical industrial environments. Overall, the IC200CHS101 offers a comprehensive solution for managing interposing I/O needs in automation applications.
