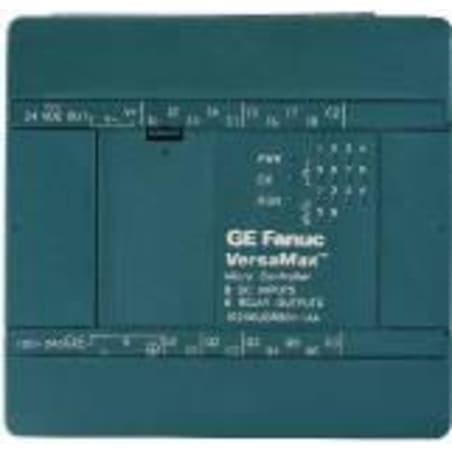

GE Fanuc Emerson Versamax IC200UDR002

Product image is representative; revision or series may vary. Contact us to request a specific version.

IC200UDR002

|
Need a Specific Revision?

The IC200UDR002 module is part of GE Fanuc Emerson's Versamax series known for its micro PLC functionality. It features a total of eight inputs and six outputs, supporting 24V DC logic levels.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for IC200UDR002

ManufacturerGE Fanuc Emerson
Product LineVersamax
Part NumberIC200UDR002
Weight2.00 lbs (0.91 kg)
SeriesVersamax Micro PLC
ProductMicro PLC Module
Number of Inputs8 Inputs
Number of Outputs6 Outputs
Input Type24V DC Positive/Negative Logic Inputs
Output TypeNormally-Open 2-Amp Relay Outputs
High-Speed CountersSupported
High-Speed Counter Options1 Type A and 1 Type B High-Speed Counter, 4 Type A High-Speed Counter
Input Power Supply Rating4W
Rated Input Voltage24V DC
Input Voltage Range0 to 30V DC
Relay Output Operating Voltage5 to 30V DC or 5 to 250V AC
Input Resistance2.8 kiloohms
High-Speed Counter I/O Count Registers16 Bits
Request a Repair

The IC200UDR002 is a micro PLC module from the Versamax series by GE Fanuc Emerson. Designed to handle specific automation tasks, it includes eight input channels and six output channels. This module accepts positive and negative logic inputs rated at 24V DC, making it suitable for a range of control systems. The outputs consist of normally-open relay configurations, allowing for a maximum current of 2 amps.

Additionally, high-speed counting functionalities are supported, including a configuration of one Type A counter, one Type B counter, and four Type A high-speed counters, enabling the module to track rapid events. The input power supply requirement is rated at 4 watts, and the module operates within a voltage specification of 24V DC, with a permissible input voltage range extending from 0 to 30V DC.

For output operations, the relay can handle voltages between 5 to 30V DC or from 5 to 250V AC, providing versatility in connecting various devices. The input resistance is around 2.8 kiloohms, contributing to signal integrity. The high-speed counter functionalities utilize 16-bit count registers for precise event tracking, making the IC200UDR002 a reliable component in implementing automation controls.
