HE693THM449

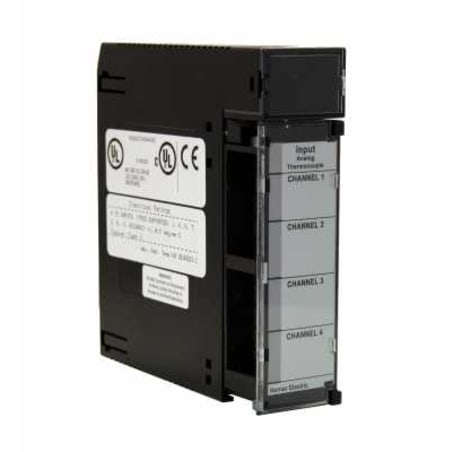

The HE693THM449 model is a specialized input module designed by Horner Electric for thermocouple applications. With four channels, it allows for connection to various thermocouple types.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for HE693THM449
| Manufacturer | Horner Electric |
|---|---|
| Product Type | Thermocouple Input Module |
| Product Line | PLC I/O |
| Part Number | HE693THM449 |
| Weight | 0.56 lbs (0.26 kg) |
| Storage Temperature | -40 to 85 °C |
| Humidity | 5% to 95% non-condensing |
| Channel-to-Bus Isolation | 1000VDC |
| Input Impedance | >20MΩ |
| Maximum Safe Overload | ±35V |
| Number of Channels | 4 |
| Thermocouple Types | J, K, N, T, E, R, S |
| Temperature Range | J: -210 to 760°C, K: -270 to 1372°C, N: -270 to 1300°C, T: -270 to 400°C, E: -270 to 1000°C, R: 0 to 1768°C, S: 0 to 1768°C |
| Resolution | 0.5°C |
| Accuracy | ±0.5°C typical (Type J) |
| Power Consumption | 70mA @ 5VDC, 60mA @ 24V Relay |
| Operating Temperature | 0 to 60 °C |
The Horner Electric HE693THM449 is an input module tailored for thermocouple use, featuring four channels for flexible sensor connectivity. It accommodates a variety of thermocouple types, including J, K, N, T, E, R, and S, each catering to specific temperature ranges for accurate calculations.
With a resolution of 0.5°C and a typical accuracy of ±0.5°C, particularly for Type J thermocouples, the module ensures precise temperature readings. In terms of electrical characteristics, the HE693THM449 provides robust isolation of 1000VDC between channels and the bus, contributing to operational integrity in potentially hostile electrical environments.
The module can function within an operational temperature range of 0 to 60 °C. It also withstands storage conditions from -40 to 85 °C with a humidity tolerance of 5% to 95% without condensation. Input impedance exceeds 20MΩ, and the maximum safe overload is rated at ±35V, ensuring protection against input voltage variations. The power requirements include 70mA at 5VDC and 60mA at 24V relay, making it efficient for integration within control systems.
