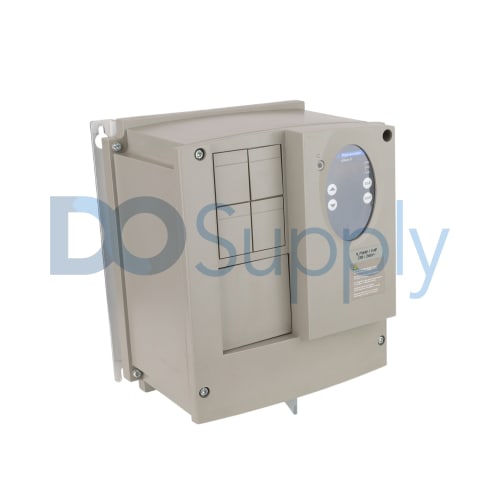

Product image is representative; revision or series may vary. Contact us to request a specific version.
ATV31C075M2
The ATV31C075M2, part of Schneider Electric's Altivar series, functions as a variable speed drive designed for efficient motor control. Its compact, enclosed design integrates an EMC filter, facilitating compliance with electromagnetic compatibility standards while managing power demands effectively.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for ATV31C075M2
| Manufacturer | Schneider Electric |
|---|---|
| Product Line | Altivar |
| Part Number | ATV31C075M2 |
| EAN | 3389110587562 |
| Weight | 5.00 lbs (2.27 kg) |
| Description of Module | Variable Speed Drive |
| Enclosed | Yes |
| EMC Filter | Integrated |
| Supply Voltage | 200 to 240 VAC |
| Number of Phases | 1-phase |
| Supply Frequency | 50/60 Hz |
| Power Output | 0.75 kW (1 HP) |
| Rated Current | 7.5 A at 240 V, 8.9 A at 200 V |
| Apparent Power | 1.8 kVA |
| Maximum Line Short Circuit Current | 1 KAIC |
| Nominal Output Current | 4.8 A at 4 kHz |
| Maximum Transient Current | 7.2 A for 60 s |
| Power Dissipation | 60 W at nominal load |
| Output Frequency | 0.5 to 500 Hz |
The ATV31C075M2, developed by Schneider Electric, represents a sophisticated solution in the form of a variable speed drive. This module is enclosed and equipped with an integrated EMC filter, allowing for effective performance in environments that require adherence to electromagnetic compatibility regulations. Operating within a voltage range of 200 to 240 VAC, this device functions flawlessly on a single-phase supply at a frequency of 50/60 Hz.
It delivers a power output of 0.75 kW, which is equivalent to 1 HP. The current ratings are specified at 7.5 A when using 240 V and 8.9 A at 200 V. With an apparent power of 1.8 kVA, the drive ensures adequate power supply for applications demanding precise control. The module can handle nominal output currents of 4.8 A at a frequency of 4 kHz, while permitting a maximum transient current of 7.2 A for a duration of 60 seconds.
Additionally, at nominal loads, the power dissipation is calculated at 60 W, showcasing efficient energy management capabilities. Users can configure the output frequency to vary from 0.5 Hz up to 500 Hz, enabling versatile applications across different operational requirements. Maximum line short circuit current ratings reach up to 1 KAIC, ensuring robust protection and safety in critical environments.
