The Schneider Electric Modicon 984 series is a modular programmable logic controller (PLC) series applied mainly in industrial automation and process control applications. It accommodates a variety of I/O configurations and communication protocols to provide seamless integration within industrial networks such as Modbus, Modbus Plus, and Ethernet. With models equipped with 32K words of memory and fast processor cycles, the Modicon 984 system can handle highly complex control tasks. Its rugged design, in combination with reliable performance, allows it to be deployed in manufacturing, utilities, and material handling industries.
Browse available units in our catalog of Modicon 984.
This PLC module features 16 input points and is designed with a single point per common configuration. It operates effectively in ambient temperatures ranging from 0 to 60 degrees Celsius. The module
Featuring a configuration of 32 outputs, the AS-B806-032 operates efficiently in specific material handling, packaging, and textile machine applications. It functions within an operating temperature r
This input module operates within a voltage range of 18 to 30 Vdc and can withstand a maximum continuous input voltage of 30 Vdc. It features an ON condition resistance range of 8 to 11 kΩ, whereas th
Operating within a temperature range of -20 to +85°C, the AS-M680-116 memory cartridge supports up to 5.0 A of current. It provides a power output of 120W with an efficiency rating of 85%, making it a
This output terminal strip provides 20 connection pins and is specifically designed for use with Modicon 984 series programmable logic controllers (PLCs). It operates effectively within a temperature

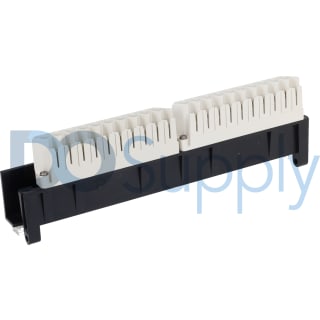

With a low-density terminal design, the AS-8534-000 connector incorporates 20 pins. It is specifically intended for MODICON 984 Series and 800-Series I/O systems, ensuring effective compatibility. The
This I/O module supports four discrete digital inputs with optical isolation. It is rack-mounted and provides a typical input current of 8 mA per input. The operating temperature ranges from 0°C to 60
This module includes six auxiliary inputs and six outputs, allowing for robust functionality with one grouping. Power consumption is rated at 115 VA, and there is no internal fusing.
This unit is compatible with Modicon 984 chassis types, specifically 984A, 984B, and 984X. It operates efficiently within an ambient temperature range of 0 to 40 degrees Celsius and requires a single
This executive cartridge functions within operational temperature limits from 0 to 40 degrees Celsius and tolerates humidity levels up to 80% relative humidity without condensation. It is appropriate
