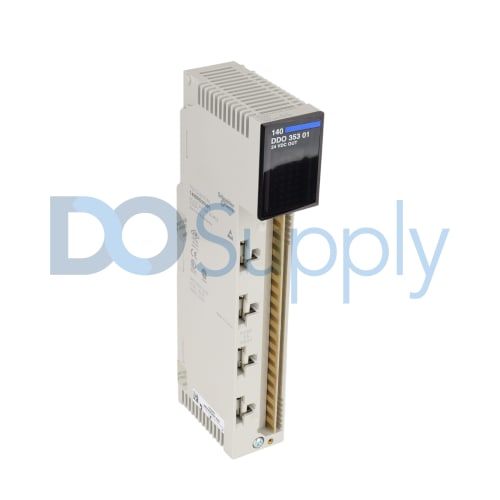

Schneider Electric Modicon 140DDO35301

Product image is representative; revision or series may vary. Contact us to request a specific version.

140DDO35301

|
Need a Specific Revision?

The Schneider Electric 140DDO35301 is a discrete output module designed for efficient control in automation systems. With 32 discrete outputs arranged in four groups of eight, it operates at a 24 V DC voltage and offers a maximum load current of 16 A per module.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for 140DDO35301

ManufacturerSchneider Electric
Product LineModicon
Part Number140DDO35301
UPC785901236238
Weight0.25 lbs (0.11 kg)
ProductDiscrete Output Module
Discrete Output Number32
Group of Channels4 groups of 8
Output LogicPositive Logic
Addressing Requirement2 output words
Output Voltage Rating24 V
Voltage TypeDC
Absolute Max. Voltage50 V
Max. Load Current16 A Per Module
Surge Current2 A
Max. Leakage Current1 mA at 24 V
Isolation between Groups500 Vrms
Power Dissipation5 W
Bus Current Requirement330 mA
Request a Repair

The Schneider Electric 140DDO35301 module functions as a discrete output module, integral to automation processes. This unit is composed of 32 outputs, efficiently sorted into four groups, each containing eight outputs. It operates on positive logic, ensuring straightforward integration within control systems.

Utilizing a 24 V DC output voltage, the module can handle a maximum load of 16 A. It is worth noting that the absolute maximum voltage it can withstand is 50 V. The design also features a surge current capacity of 2 A and a maximum leakage current of just 1 mA at 24 V. Additionally, it provides an isolation rating of 500 Vrms between groups, enhancing safety and reliability in multi-channel systems.

In terms of power efficiency, the 140DDO35301 dissipates 5 W and requires a bus current of 330 mA to function correctly. With a weight of 0.45 kg, this module is compact yet powerful, making it suitable for a variety of applications that require discrete outputs in industrial settings.
