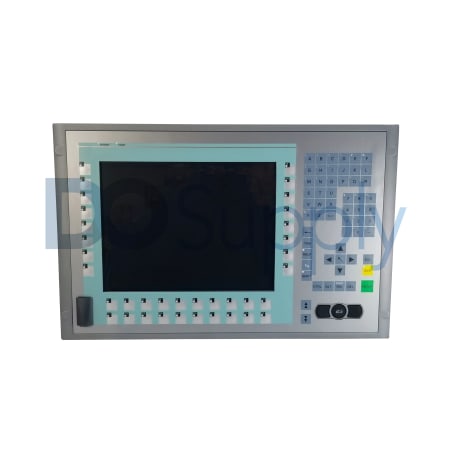

Siemens SIMATIC 6AV7801-0AA10-1AC0

Product image is representative; revision or series may vary. Contact us to request a specific version.

6AV7801-0AA10-1AC0

|
Need a Specific Revision?

The Siemens 6AV7801-0AA10-1AC0 serves as an operator panel well-suited for industrial environments. Featuring a resolution of 800 x 600 pixels, it is equipped with a 24V DC power supply for efficient operation.

Out of stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for 6AV7801-0AA10-1AC0

ManufacturerSiemens
Product TypeOperator Panel
Product LineSIMATIC
Part Number6AV7801-0AA10-1AC0
Weight15.00 lbs (6.80 kg)
Safety FeaturesOvervoltage protection, Undervoltage protection, Reverse polarity protection
Protection ClassIP65 (front), IP20 (rear)
Operating Temperature0°C to 50°C
CoolingPassive cooling
Expansion Slots2x PCI
USB Ports4x USB 2.0
Serial Port1x COM1
Ethernet2x 10/100/1000 Mbit/s
Front USB InterfaceYes
Power Supply24V DC
Storage80 GB SATA HDD
Memory512 MB DDR266 SDRAM
Resolution800 x 600 pixels
Request a Repair

The Siemens 6AV7801-0AA10-1AC0 operator panel is engineered to perform reliably in diverse industrial applications. With a resolution of 800 x 600 pixels, it displays clear visuals for user interaction. The panel is powered by a 24V DC supply, accommodating typical industrial standards.

The unit’s memory is structured with 512 MB DDR266 SDRAM, which supports operational requirements effectively. Storage is managed by an 80 GB SATA hard disk drive, providing adequate capacity for data.

Users benefit from various connectivity options, including two PCI expansion slots for future enhancements. The panel is equipped with four USB 2.0 ports, along with a front USB interface for easy access. Additionally, it includes a single COM1 serial port and dual Ethernet ports capable of 10/100/1000 Mbit/s communication.

Incorporating robust safety features, the panel includes overvoltage and undervoltage protection to safeguard device functionality, as well as reverse polarity protection. The protection classes of IP65 for the front and IP20 for the rear enhance its durability in the working environment.

The Siemens 6AV7801-0AA10-1AC0 operates efficiently within a temperature range of 0°C to 50°C, utilizing passive cooling to maintain optimal performance. This operator panel delivers a balance of functionality and protection for demanding industrial tasks.
