Siemens SIMATIC 6ES7331-7PF01-0AB0

Product image is representative; revision or series may vary. Contact us to request a specific version.

6ES7331-7PF01-0AB0

|
Need a Specific Revision?

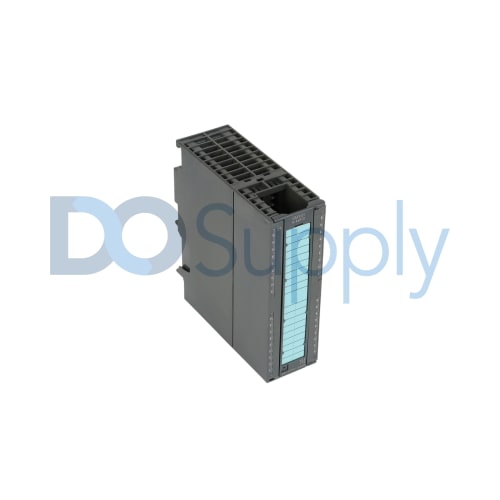

The Siemens 6ES7331-7PF01-0AB0 is an isolated analog input module specifically designed for use with S7-300 PLC systems. This module can accommodate eight input channels tailored for resistance and RTD measurements, offering compatibility with various sensor types, including resistance thermometers and resistors.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for 6ES7331-7PF01-0AB0

ManufacturerSiemens
Product TypeIsolated Analog Input Module for S7-300 PLC
Product LineSIMATIC
Part Number6ES7331-7PF01-0AB0
UPC662643177916
Weight0.38 lbs (0.17 kg)
SeriesI/O Modules
Input Channels8 channels dedicated to resistance and RTD measurements
Supported Sensor TypesResistance thermometers (Pt, Ni, Cu) and resistors (0-150/300/600 Ω)
Isolation Voltage500 V DC tested between channels and backplane/power supply
Resolution16-bit two’s complement with overrange capability
Conversion TimeConfigurable: 10 ms (≤4 ch), 80 ms (8 ch), 190 ms (>5 ch) per module cycle
Interference Suppression50 Hz, 60 Hz, and 400 Hz noise rejection
Cable RequirementsShielded cables up to 200 m maximum length
Wiring Configurations2-wire, 3-wire, or 4-wire connection for resistance measurement
Operational Accuracy (Full Range)±0.1% for resistors; ±1 K for RTDs
Basic Accuracy (at 25°C)±0.05% for resistors; ±0.5 K for RTDs
Diagnostic FeaturesConfigurable alarms (limit, diagnostic, hardware interrupt) per channel
Channel Grouping2-channel groups with internal isolation
Power Consumption24 V DC supply; 240 mA max from L+, 100 mA from backplane
Physical Dimensions (W x H x D)40 mm x 125 mm x 120 mm
Request a Repair

The Siemens 6ES7331-7PF01-0AB0 module functions as an isolated analog input interface intended for S7-300 PLC systems. It offers the capability of measuring eight different inputs geared towards resistance and RTD sensors. Capable of interfacing with resistance thermometers constructed from various materials such as Platinum, Nickel, and Copper, as well as resistors that operate within the range of 0 to 600 Ω, this module is adaptable for various applications.

A key specification includes an isolation voltage strength of 500 V DC, which has been verified between the inputs and the backplane or power supply for safety. With a resolution of 16-bit in two’s complement format, the data conversion further boasts a configurable processing time, allowing users to optimize performance based on the desired number of channels active during operation.

For managing noise interference, the module provides suppression capabilities for commonly encountered frequencies, namely 50 Hz, 60 Hz, and 400 Hz. Regarding wiring flexibility, the device supports multiple configurations for resistance measurement, permitting 2-wire, 3-wire, or 4-wire connections depending on the application.

In terms of performance metrics, the device achieves an operational accuracy of ±0.1% for resistors and ±1 K for RTDs. Basic accuracy at an ambient temperature of 25°C is rated at ±0.05% for resistors and ±0.5 K for RTDs. The module also incorporates diagnostic functionalities with configurable alarms on each channel, monitoring for limits, connectivity disturbances, and hardware interruptions.

Power requirements include a 24 V DC supply where it draws a maximum of 240 mA from L+ and 100 mA from the backplane. Physically, its dimensions measure 40 mm in width, 125 mm in height, and 120 mm in depth, making it suitable for installation in various panel configurations.
