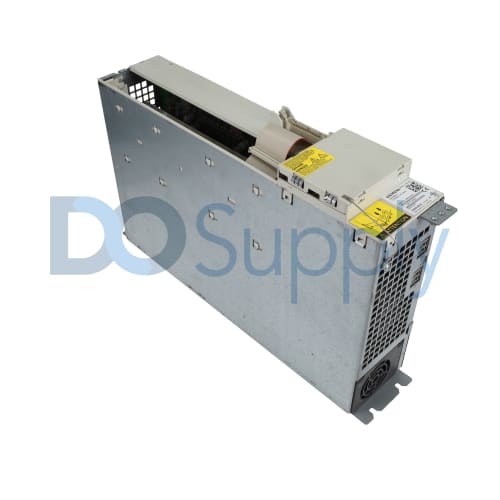

Siemens SIMODRIVE 6SN1123-1AB00-0CA3

Product image is representative; revision or series may vary. Contact us to request a specific version.

6SN1123-1AB00-0CA3

|
Need a Specific Revision?

The Siemens 6SN1123-1AB00-0CA3 is a power module used in SIMODRIVE 611 systems. It is specifically designed for motor control within CNC systems and can manage two axes with efficiency.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for 6SN1123-1AB00-0CA3

ManufacturerSiemens
Product TypeSIMODRIVE 611 Power Module
Product LineSIMODRIVE
Part Number6SN1123-1AB00-0CA3
UPC662643256178
Weight15.00 lbs (6.80 kg)
Input Voltage380-480 V AC
Current Rating50 A (Feed=18 A, Main Spindle=24 A)
Output Voltage0-600 V DC
CoolingInternal heat dissipation
Operating Temperature Range0°C to 45°C
ApplicationCNC systems, motor control
Axis2-axis
Spare PartYes
Request a Repair

The 6SN1123-1AB00-0CA3 power module from Siemens is integral to the SIMODRIVE 611 series, specializing in controlling motors within CNC machinery. It operates with an input voltage ranging from 380 to 480 V AC, accommodating various power sources. Designed for high performance, this module has a substantial current rating of 50 A, which is divided into two segments: 18 A for feed and 24 A for the main spindle. The output voltage it delivers can reach up to 600 V DC, providing the necessary power for precise motor operations.

Internal heat dissipation ensures that the unit runs efficiently without risk of overheating, a crucial feature for maintaining performance in demanding environments. The operating temperature is suitable for typical industrial settings, ranging from 0°C to 45°C. With a weight of 3.78 kg, the compact design allows for convenient integration into existing systems.

It is tailored for applications requiring control over two axes, making it versatile for a needs of CNC systems. As a spare part, the 6SN1123-1AB00-0CA3 provides necessary support for replacement or upgrades in operational setups.
