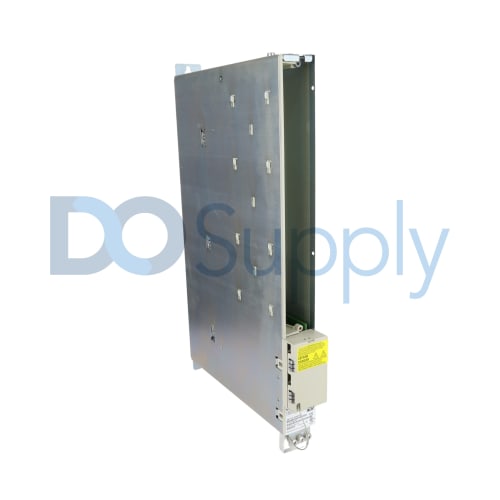

Siemens SIMODRIVE 6SN1123-1AB00-0HA1

Product image is representative; revision or series may vary. Contact us to request a specific version.

6SN1123-1AB00-0HA1

|
Need a Specific Revision?

The Siemens 6SN1123-1AB00-0HA1 is a dual-axis power module designed for SIMODRIVE systems. This module is suitable for use in CNC systems and motor control applications, providing a flexible output voltage range of 0 to 600 V DC.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for 6SN1123-1AB00-0HA1

ManufacturerSiemens
Product TypeSIMODRIVE 611 Power Module
Product LineSIMODRIVE
Part Number6SN1123-1AB00-0HA1
EAN4025515014959
Weight11.00 lbs (4.99 kg)
Axis2-axis
Spare PartYes
Output Voltage0-600 V DC
Current Rating8 A (Feedrate=3 A, Main Spindle=3 A)
Operating Temperature Range0°C to 45°C
CoolingInternal heat dissipation
Input Voltage380-480 V AC
ApplicationCNC systems, motor control
Request a Repair

Siemens' part number 6SN1123-1AB00-0HA1 is classified as a power module within the SIMODRIVE 611 series, specifically engineered for dual-axis applications. This module is pivotal in CNC and motor control settings, delivering precise power management. It accommodates output voltage levels ranging from 0 up to 600 V DC, which allows for a significant degree of flexibility in various control scenarios.

The 6SN1123-1AB00-0HA1 maintains a maximum current rating of 8 A, which includes specific ratings for different functions: 3 A for main spindle operations and 3 A designated for feedrate applications. Its design ensures that it can handle operational demands efficiently. The module operates effectively in an ambient temperature range of 0°C to 45°C, which is optimal for a variety of environments.

For cooling, this unit utilizes internal heat dissipation, allowing it to maintain performance without requiring external cooling equipment. The required input voltage for functionality is between 380 and 480 V AC. Weighing in at 4.54 kg, the module is manageable for installation and maintenance tasks. As a spare part, it provides a reliable solution for replacing existing modules in industrial setups.
