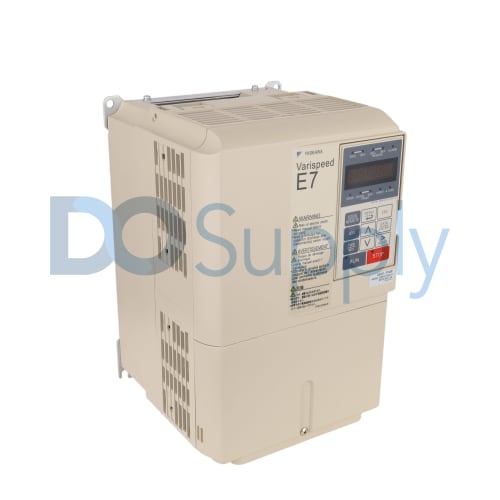

Yaskawa E7 Series CIMR-E7U4011

Product image is representative; revision or series may vary. Contact us to request a specific version.

CIMR-E7U4011

|
Need a Specific Revision?

The CIMR-E7U4011 is a variable torque frequency inverter manufactured by Yaskawa, designed for reliable performance in industrial applications. It operates within a supply voltage range of 380 to 480 Volts AC, providing flexibility for various setups.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for CIMR-E7U4011

ManufacturerYaskawa
Product TypeVariable Torque Frequency Inverter
Product LineE7 Series
Part NumberCIMR-E7U4011
Weight13.00 lbs (5.90 kg)
Supply Voltage Rating380 to 480 Volts AC
Rated Output Current27 Amperes
Rated Apparent Power21 kilovolt-amperes
Input Frequency50 to 60 Hertz
Output Voltage Rating0 to 480 Volts AC
Output Frequency0 to 120 Hertz
Input Current Rating33 Amperes
Protection RatingIP20 (NEMA 1)
Rated Phase3-phase
Ambient Operating Temperature-10 to 40°C (in a non-condensing environment)
Storage Temperature-20 to 60°C (in a non-condensing environment)
Humidity Tolerance95% relative humidity or less (without condensation)
Installation Altitude3,280 feet (1,000 meters) above sea level
Request a Repair

The Yaskawa CIMR-E7U4011 is categorized as a variable torque frequency inverter. It features a supply voltage rating that spans from 380 to 480 Volts AC. This inverter is adept at delivering a rated output current of 27 Amperes and operates at a rated apparent power of 21 kilovolt-amperes.

It accommodates a permissible input frequency range of 50 to 60 Hertz and can output voltage levels from 0 to 480 Volts AC. Its design allows for an output frequency varying from 0 to 120 Hertz. The inverter exhibits an input current rating of 33 Amperes and is rated for three-phase connections.

Constructed with an IP20 (NEMA 1) protection rating, this device can withstand environments with up to 95% humidity, as long as condensation is not present. The inverter weighs 13.22 pounds (6 kilograms) and is designed to function within an ambient temperature range of -10 to 40°C. For storage, it can endure temperatures between -20 to 60°C. Furthermore, this model is suitable for installation at altitudes of up to 3,280 feet (1,000 meters) above sea level. This enables its use in a variety of settings without performance loss.
