The Yaskawa E7 Series is a line of variable torque AC drives designed specifically for commercial HVAC and building automation applications. It includes standard E7 drives plus configurable versions (E7C), bypass models (E7L, E7B), and engineered/custom units (E7E) for special requirements. Power ratings range from ½ to 500 HP, across 208 240V and 480V three phase inputs. These drives are used in fans, pumps, blowers, air handlers and chillers to provide energy savings, precise speed control, motor protection and integration with building automation systems.
Browse available units in our catalog of E7 Series.
Complying with UL specifications, this drive operates within an input voltage range of 380 to 480 VAC and supports an input current of 9 A. Its rated output capacity stands at 5.8 kVA, making it suita
This AC drive operates under 3-phase power with an input voltage of 480 V. It is rated for a maximum output of 7.5 hp at an input current of 12.5 A. The CIMR-E7U45P5 features a NEMA1 enclosure, ensuri
This unit supports an ambient temperature range from -10 to 40°C, making it suitable for diverse environments. With a maximum rated output current of 27 Amperes and a rated apparent power of 21 kilovo
This AC drive can operate within a frequency range of 0 to 120 Hz and is rated for temperatures from -10°C to 40°C. It can withstand humidity levels of up to 95% without condensation. The enclosure is
This control board operates effectively within a temperature range of 0 to 40 degrees Celsius and has a storage temperature rating of up to 50 degrees Celsius. Supporting moisture levels of 80% RH for

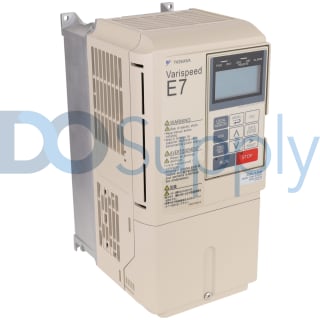

The Yaskawa CIMR-E7U22P2 drive features input specifications that allow for voltages between 200 and 240 Volts AC. It is designed to output voltage levels from 0 to 240 Volts AC, with frequencies adju
This drive is ideally mounted on walls and is contained within a NEMA-1 enclosure. It features forced air cooling systems to maintain optimal operating conditions. Designed for a temperature range of
This device operates at a control voltage of 100/110 VAC and has a coil power consumption of 6 VA. Its maximum operating voltage is rated at 600 VAC, allowing it to handle considerable electrical load
This drive is capable of handling input voltages of 240 VAC and operates at a rated power of 18 kVA. It accepts input currents of up to 53 A. The output voltage can range from 0 to 240 V AC, with an o
This drive has a significant output voltage capacity of up to 240 volts AC and can achieve a maximum output frequency of 120 Hertz. With a rated output capacity of 12 kilovolt-amperes and an output cu
