Product image is representative; revision or series may vary. Contact us to request a specific version.

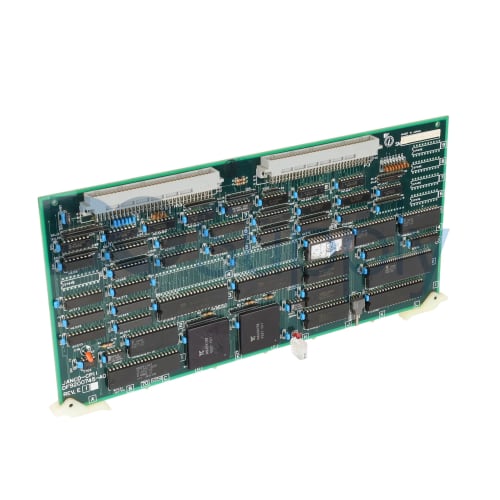

JANCD-CP11
The JANCD-CP11 from Yaskawa is a specialized PC board designed for use in robotics systems. It operates at an input voltage of 24 VDC and features both digital I/O and Ethernet interfaces, making it suitable for various industrial applications.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for JANCD-CP11
| Manufacturer | Yaskawa |
|---|---|
| Product Type | PC Board / Circuit Board |
| Product Line | Motoman |
| Part Number | JANCD-CP11 |
| Weight | 10.00 lbs (4.54 kg) |
| Input Voltage | 24 VDC |
| Interface | Digital I/O, Ethernet |
| Application | Robotics ERC Main CPU Board |
| Connector Type | 40-Pin Connector |
| Clock Speed | 200 MHz |
| Operating Temperature | 0°C to 50°C |
| Frequency Range | 20 MHz |
| Signal Integrity | High-speed Digital Signals |
| Power Consumption | 15 W |
| Storage Temperature | -10°C to 70°C |
The Yaskawa JANCD-CP11, classified as a PC board or circuit board, is engineered specifically for robotics applications, playing a critical role as the ERC main CPU board. This component requires a nominal input voltage of 24 VDC. It incorporates a digital I/O interface alongside Ethernet connectivity for seamless integration within various systems. A notable feature is the 40-pin connector that facilitates easy interfacing with other hardware components.
Within the performance specifications, the JANCD-CP11 boasts a clock speed of 200 MHz, ensuring efficient processing capabilities. Operating temperature conditions are delineated between 0°C and 50°C, while the board can endure temperatures as low as -10°C and as high as 70°C during storage. The board has a compact weight of 0.37 kg, contributing to the overall efficiency of the installation within robotic setups.
This board is adept at handling high-speed digital signals, characterized by a frequency range reaching up to 20 MHz. The power consumption is rated at 15 W, which reflects the operational demands of the board in active use. Overall, the JANCD-CP11 serves a vital function in the robotics sector, enabling precise control and interfacing for automation systems.
