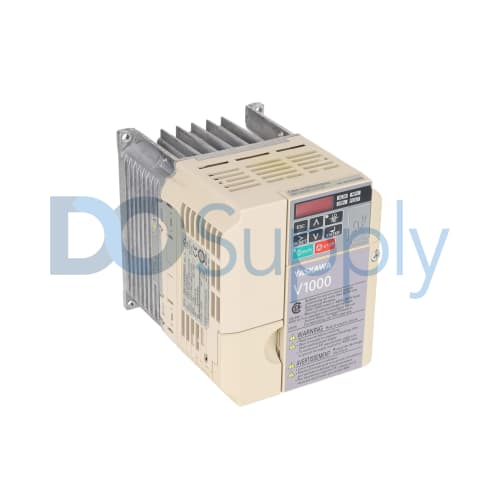

Yaskawa V1000 CIMR-VU4A0004BAA

Product image is representative; revision or series may vary. Contact us to request a specific version.

CIMR-VU4A0004BAA

|
Need a Specific Revision?

The Yaskawa CIMR-VU4A0004BAA is an AC drive designed for optimal performance in clean indoor environments. This unit supports a voltage range of 380 to 480V AC with a current rating of 4.1/3.4 Amps and is suitable for 1 horsepower applications.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for CIMR-VU4A0004BAA

ManufacturerYaskawa
Product LineV1000
Part NumberCIMR-VU4A0004BAA
Weight3.00 lbs (1.36 kg)
ProductAC Drive
ChassisOpen Chassis
Voltage Type3-Phase AC
Voltage Range380-480V AC
Current Ratings4.1/3.4 Amps
Output Power1 Horsepower
Operating Temperature0 to 40 degrees Celsius
Operating HumidityUp to 80% without condensation
Operating AltitudeUp to 1000 meters above sea level
Storage Temperature0 to 50 degrees Celsius
Storage HumidityUp to 80% without condensation
Storage AltitudeUp to 1000 meters above sea level
EnvironmentClean indoor environment with no corrosive chemicals
Request a Repair

The Yaskawa part number CIMR-VU4A0004BAA represents an AC drive within the V1000 series, tailored for clean indoor operations. This unit houses an open chassis design, optimizing ventilation, and minimizing overheating risks. Operating with a 3-phase AC voltage type, it accommodates input voltage values ranging between 380 and 480 volts AC.

With a capability of delivering 1 horsepower, the CIMR-VU4A0004BAA maintains current ratings at 4.1 Amps and 3.4 Amps, making it suitable for various industrial applications. The drive operates efficiently across a temperature spectrum from 0 to 40 degrees Celsius while supporting humidity levels as high as 80% without condensation, ensuring consistent functionality in various conditions.

Designed for installation at altitudes up to 1000 meters above sea level, both during operation and storage, this drive retains its performance even in elevated locations. When not in use, it can be safely stored at temperatures up to 50 degrees Celsius, with the same humidity tolerance. It is crucial to note that this product is intended for clean indoor environments free of corrosive chemicals, ensuring longevity and reliability in performance.
