This controller manages up to 24 Ethernet nodes and can support eight local I/O modules. Task management is robust, allowing for 32 continuous tasks with the flexibility to run 1000 programs per task. The device is equipped with two Ethernet ports and one USB port, offering diverse communication cap
This power supply module delivers a maximum output of 75 watts while operating in temperatures between 0 to 60 degrees Celsius. It can manage a maximum inrush current of 30 amps and features a continuous isolation voltage of 250 volts for reliable operation.
With support for various communication protocols, including Ethernet, DeviceNet, ControlNet, and Remote I/O, this controller is equipped for diverse networking needs. The 1756-L85E features a USB port with a transfer speed of 12 Mbps and an Ethernet port that can operate at 10, 100, or 1000 Mbps, en

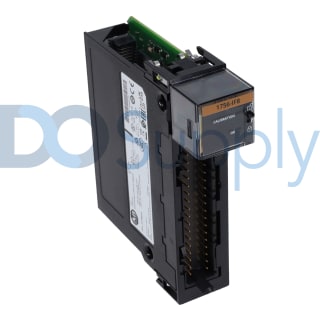

This input module accommodates a nominal operating input current range between 0 and 20 mA, with a full module range extending up to 21 mA. It features panel mounting tabs and DIN rail latches for secure installation. Status LEDs provide quick visual feedback during operation, while the bus lever in
This redundancy module is engineered for maximum efficiency, with a power dissipation capability of 6 watts and thermal output of 21 BTU per hour. It fits into any chassis slot and can accommodate a cable length of up to 10 meters. The unit operates effectively at temperatures between 0°C and 60°C,
The 1734-OE2V module features a total of two outputs and can deliver a current load of 3 mA on its voltage output. It converts digital signals to analog within a signed integer data format. Additionally, this module includes status indicators for user convenience. Screw torque for secure terminal ba
With eight single-ended inputs, four differential inputs, and two high-speed differential inputs, this module provides versatile signal acquisition. It operates with a current range of 0 to 20 mA and can handle voltage inputs of -10 to 10V, 0 to 10V, or 0 to 5V. Current draw is rated at 150 mA for 5
This output module operates within an extensive temperature range from 0 to 60 degrees Celsius while being capable of storage in environments as low as -40 degrees Celsius and as high as 85 degrees Celsius. It draws 55 mA of current at 5V and 195 mA at 24V. This unit allows for the use of an externa

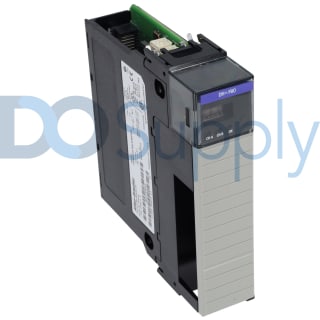

As a dual-channel communication module, the 1756-DHRIO facilitates communication at rates of 57.6 Kbps, 115.2 Kbps, or 230.4 Kbps. It allows for up to 32 messages per Data Highway Plus module and supports connections to Remote I/O scanners. Each RIO channel can handle 32 RIO logic rack connections a

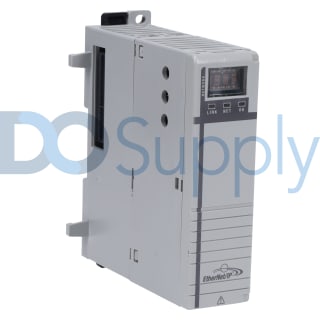

This Ethernet/IP module operates efficiently at Ethernet speeds of 10/100 Mbps and enables up to 128 Logix and 64 TCP/IP connections. It has a power consumption rating of 4.34 watts with a dissipation of 4.38 watts. The module occupies a single slot and supports both DIN rail and panel mounting opti

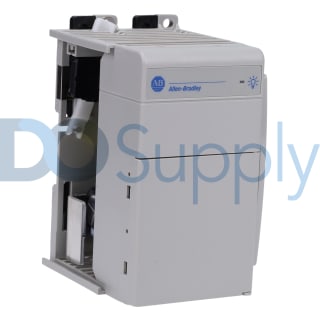

This module accepts an input voltage ranging from 19.2 to 31.2V DC and features a power consumption of 100 VA at the nominal voltage. Delivering a current capacity of 4 Amps at 5V and 2 Amps at 24V, this power supply supports a maximum inrush current of 30 Amps when operating at 31.2V DC. It can be

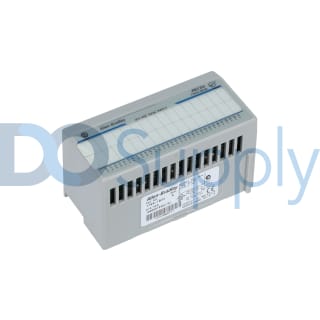

This input module is capable of handling current sinking inputs and maintains a nominal on-state voltage of 24V DC. The module's input impedance is rated at 22.2 kiloohms, while the minimum operational current is 2 mA, rising to a nominal current of 4.1 mA at 24V DC and a maximum of 6 mA. For off-st
