The Allen-Bradley 1336 capacitors are a family of spare capacitors for the 1336 Compact, Force, PLUS, PLUS II, REGEN, and Impact adjustable frequency AC drives. The 1336 Capacitors are replacement capacitor kits comprising individual capacitors, capacitor banks, capacitor assemblies, and fan capacitors. The 1336 capacitors (versions C1 to Cx, or C1 to Cxx) serve as replacement capacitors for 230 Volts AC, 460 Volts AC, and 575 Volts AC drives with 7.5 Horsepower to 250 Horsepower drive ratings. They are also available in 30 to 50 Amps current ratings. The 1336 capacitors are available in 1, 2, 4, and 6-bus capacitors assemblies, and the fan capacitors come as single capacitor kits (CHB1). The 1336 bus capacitor banks are located on either the lower-left corner of the main chassis in the 1336 B075 to B125, C075 to C125, and B075 to B150 compact drive models or the upper left corners of the main chassis in the 1336 PLUS, PLUS II, Impact, and Force compact drive models.
Although different models have slightly different capacitor bus bar configurations, and all 1336 capacitor assembly kits have similar bus capacitor assembly configurations. A bus capacitor bank consists of bus capacitor bars, a bus capacitor assembly bracket, a snubber resistor holder bus capacitor standoff, and a bus capacitor holder. Some models have high voltage guards that provide protective plastic coverings for both the capacitor bank and the power module assembly. It is recommended that the bus capacitors be tested each time a module is replaced to ensure optimum working conditions. Testing the 1336 capacitors requires checking for voltage equality across every capacitor, and if the voltage is unequal, it is recommended that the capacitors be replaced. The 1336 capacitors are installed close to the drive’s main chassis, and they are available for every drive frame and enclosure size.
Browse available units in our catalog of 1336 Capacitors.
This capacitor features a frame size categorized as G Frame, offering a tolerance range of -10% to +50%. It can be utilized in systems that resonate with the 1336 PLUS, PLUS II, IMPACT, and FORCE mode
This capacitor incorporates two terminals and is built with a non-conductive dielectric. Thermal protection is provided by an internal thermostat, ensuring safe operation. It serves a vital role in DC
This component features a capacitance of 6000 µF and is made with aluminum electrolytic dielectric material. It operates at a voltage rating of 230/460 VAC and can handle DC bus currents, confirming i
Crafted for 460 VAC operation, this power capacitor ensures smooth DC filtering while offering integrated leakage protection. It provides overvoltage protection, mounted internally within the drive sy

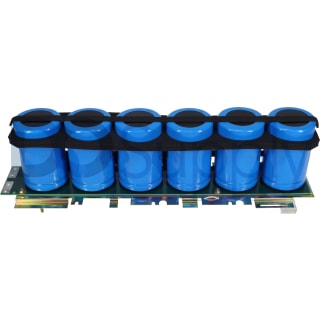

The bus capacitor includes six individual bus caps per assembly, ensuring efficient power distribution. Its operating temperature range extends from a minimum of 0°C to a maximum of 40°C, and it remai
This replacement capacitor is designed for panel mounting in an open style. It is classified under Class B insulation and operates within a frequency range of 50/60 Hz. The unit features an electrolyt
This capacitor assembly includes four bus capacitors and is intended for use with PLUS, PLUS II, FORCE, and IMPACT series drives that utilize Frame B. The assembly requires one kit per drive and can f
Designed specifically for the 1336F drive, this bus capacitor has a cylindrical shape, blue coloring, and features two terminals. It operates efficiently in temperatures up to 85 °C and supports humid
This adjustable frequency drive operates within an output frequency range of 0 to 400 Hz, utilizing a sine-coded PWM control method. It boasts an overload capacity of 150% of rated torque for one minu
Designed for variable torque applications, the 1336-CAP-SP13A supports output kilowatt ratings between 150 and 250 HP. It connects via screw terminals and can handle peak currents of 200 to 300 A. Wit
