The Allen-Bradley 1336 PLUS drives are a family of microprocessor-based AC drives with sensorless vector control that are designed to provide control for 3-phase motors in critical applications where accurate torque and speed control is necessary. The 1336 PLUS drive series offers easy-to-use and cost-effective motor control solutions to applications with even the tightest speed requirements, and they come with built-in protection features that help to improve performance and save maintenance costs caused by unscheduled downtimes. The 1336 PLUS drives have A1, A2, A3, A4, B1/B2, C, D, E, G, and G frames with input ratings from 200 to 600 Volts AC and 0.37 to 448 kilowatts (0.5 to 600 Horsepower). All 1336 PLUS drives have both variable and constant torque capability, and each drive is sized to 115% of the full load Amps for variable torque applications, and 150% of the full load Amps for constant torque applications.
The 1336 PLUS drives employ the Pulse Width Modulation (PWM) control with programmable carrier frequencies from 2 to 10 KiloHertz. Depending on the application type, the operators can choose between the standard Volts per Hertz control method, which offers customizable Volts per Hertz curve and it is suitable for centrifugal and HVAC applications, and the sensorless vector control (SVC), which provides tighter speed control even under varying loads, higher starting torque, and lower speed operation than other control methods. The 1336 PLUS drives offer easy-to-use human-machine interface module options, communication options (single-point remote I/O, RS-232/422, DF1, DH-485, and DeviceNet networks), and the control interface card option with or without an encoder interface. This drive series features easy-to-read display interface options that support multiple languages for easy configuration, diagnostics, and troubleshooting processes. The 1336 PLUS drive series features drives with IP 00 (Open), IP 20, IP 54, and IP 65 enclosures, and they have a non-derating operating temperature range of 0 to 40 degrees Celsius.
Browse available units in our catalog of 1336 PLUS Drives.
This drive supports a three-phase power configuration and offers output frequencies ranging from 0 to 400 Hz. The operational input frequencies are between 50 Hz and 60 Hz. It employs sensorless vecto
This adjustable frequency drive features an IP20 (NEMA 1) rated enclosure and supports voltage outputs from 0 up to the input voltage. The PWM method utilized is sine-coded, with a programmable carrie

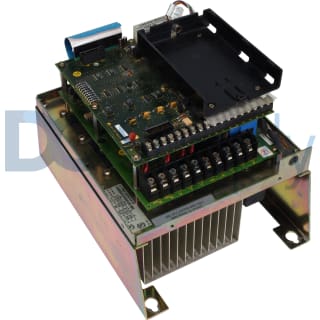

This drive features an open IP00 enclosure and excellent operational efficiency at 97.50%. It is capable of controlling motor torque variably or constantly, as needed. The output frequency can range f
This drive supports an operating frequency range of 47 to 63 Hertz. With a current rating of 159 Amperes and a nominal bus voltage of 648 Volts DC, it is designed for demanding applications. Additiona
This device features an open type enclosure and has an IP00 protection rating, making it best suited for indoor environments. The drive is designed for operation in English and supports storage and op
This drive supports a maximum efficiency of 97.50%. It features a frequency tolerance between 48 to 62 Hz and includes a nominal bus voltage of 648V DC. The operating temperature range is 0 to 50 degr
This adjustable frequency drive presents an output frequency capability of up to 400 Hz, and it offers an output voltage range from 0V to the rated voltage. The drive can function correctly in environ
This drive features an IP20-rated enclosure, making it suitable for indoor applications. The integrated human interface module allows for programming and control with an analog plot feature. The drive
This adjustable frequency drive operates within an output frequency range of 0 to 400 Hz. The enclosure is rated as IP00, indicating it is an open-style unit. It is designed to function effectively in
This adjustable frequency drive has an IP20 rating and is classified under NEMA 1 enclosure standards. The device includes a Programmable Interface Module (HIM) that offers digital potentiometer funct
