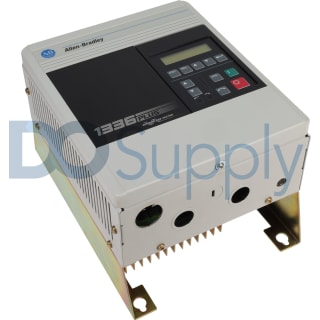

The Allen-Bradley 1336 PLUS drives are a family of microprocessor-based AC drives with sensorless vector control that are designed to provide control for 3-phase motors in critical applications where accurate torque and speed control is necessary. The 1336 PLUS drive series offers easy-to-use and cost-effective motor control solutions to applications with even the tightest speed requirements, and they come with built-in protection features that help to improve performance and save maintenance costs caused by unscheduled downtimes. The 1336 PLUS drives have A1, A2, A3, A4, B1/B2, C, D, E, G, and G frames with input ratings from 200 to 600 Volts AC and 0.37 to 448 kilowatts (0.5 to 600 Horsepower). All 1336 PLUS drives have both variable and constant torque capability, and each drive is sized to 115% of the full load Amps for variable torque applications, and 150% of the full load Amps for constant torque applications.
The 1336 PLUS drives employ the Pulse Width Modulation (PWM) control with programmable carrier frequencies from 2 to 10 KiloHertz. Depending on the application type, the operators can choose between the standard Volts per Hertz control method, which offers customizable Volts per Hertz curve and it is suitable for centrifugal and HVAC applications, and the sensorless vector control (SVC), which provides tighter speed control even under varying loads, higher starting torque, and lower speed operation than other control methods. The 1336 PLUS drives offer easy-to-use human-machine interface module options, communication options (single-point remote I/O, RS-232/422, DF1, DH-485, and DeviceNet networks), and the control interface card option with or without an encoder interface. This drive series features easy-to-read display interface options that support multiple languages for easy configuration, diagnostics, and troubleshooting processes. The 1336 PLUS drive series features drives with IP 00 (Open), IP 20, IP 54, and IP 65 enclosures, and they have a non-derating operating temperature range of 0 to 40 degrees Celsius.
Browse available units in our catalog of 1336 PLUS Drives.
This sensorless vector drive functions with an input frequency of 50 to 60 Hz and maintains a 3-phase input configuration. It supports an output frequency spanning from 0 to 400 Hz, enabling a wide ra
This drive is designed to withstand an IP20 enclosure rating according to NEMA specifications. It operates effectively within a temperature range of 0°C to 40°C and can be stored safely between -40°C
Capable of operating under both constant and variable torque conditions, this drive supports sensorless vector control with complete tuning options. It features two independently programmable accelera
This AC drive features a variable torque output kVA capacity of 38 kVA and a constant torque output kVA of 36 kVA. It has an enclosure rated IP20, which aligns with NEMA 1 standards. The device utiliz
This adjustable frequency drive operates efficiently with an enclosure rated at IP00. It accepts input frequency tolerances of 48 to 62 Hz and provides output frequencies ranging from 0 to 400 Hz. Add
This model is enclosed in a NEMA 1 type enclosure and has an IP20 protection rating. It has a control interface operating at 115 VAC and supports humidity levels from 5% to 95% in non-condensing condi
This drive operates at a high efficiency of 97.50% with the capability to output frequencies ranging from 0 to 400 Hz. It includes an HMI with a digital potentiometer for straightforward programming.
This adjustable frequency AC drive features a NEMA 1 enclosure type and has a temperature operating range from 0°C to 40°C, while it can withstand storage temperatures as low as -40°C and up to 70°C.
Operating at 500 to 600 VAC, this drive can deliver 7.5 horsepower with a rated output current of 10 A. It functions across an input frequency range of 48 to 62 Hz and has an output frequency that can
This adjustable frequency drive operates at ratings of 200 to 240 volts AC and delivers a maximum horsepower of 10 HP. The unit features an IP20 rating, suitable for indoor use, and includes a NEMA 1
