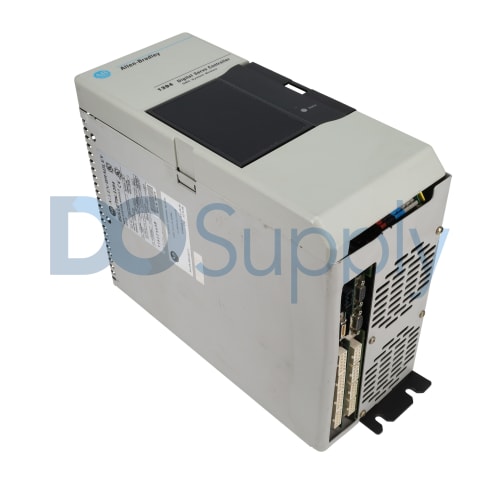

Allen Bradley Bulletin 1394 1394-SJT05-C

Product image is representative; revision or series may vary. Contact us to request a specific version.

1394-SJT05-C

|
Need a Specific Revision?

The 1394-SJT05-C GMC system module from Allen Bradley is designed for high performance in automation environments. It features a current rating of 6.5 amperes and operates within an input voltage range of 360 to 480 VAC, making it suitable for various industrial applications.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 1394-SJT05-C

ManufacturerAllen Bradley
Product TypeGMC System Module
Product LineBulletin 1394
Part Number1394-SJT05-C
Weight26.00 lbs (11.79 kg)
UPC7450001352357
Current6.5 Amperes
Input Voltage Range360–480 VAC
Phase3 Phase
Frequency Rating50/60 Hz
Nominal DC Bus Output Voltage530/680 VDC
Peak Output Power28 kW
Efficiency99 %
Static Gain4.9 rms A/mV
Relative Humidity (Non-Condensing)5–95 %
Supported AxesUp to 4 axes
Shock Resistance15 G
Vibration1 G
Operating Temperature0–50 °C
View as PDF
Request a Repair

The Allen Bradley 1394-SJT05-C is a GMC system module tailored for advanced industrial applications. This module has a current capacity of 6.5 amperes and manages input voltages within the range of 360 to 480 VAC. Designed specifically for three-phase connections, it supports frequencies of 50/60 Hz.

Output capabilities include a nominal DC bus voltage of either 530 VDC or 680 VDC and a peak power output reaching 28 kW, indicating substantial performance potential. An impressive efficiency rating of 99% ensures minimal energy waste.

The static gain is quantified at 4.9 rms A/mV, contributing to the module's overall performance. With a relative humidity tolerance of 5% to 95% (non-condensing), it is suitable for diverse environmental conditions. This module also supports operation with up to four axes for multi-axis applications.

Robust in design, it withstands shock levels of 15 G and vibrations of 1 G, allowing for reliable functionality even in demanding environments. The operational temperature range spans 0 to 50 °C, making it versatile for standard industrial use. This combination of features makes the 1394-SJT05-C GMC system module a reliable choice for a variety of control and automation systems.

Revision Part #Also known as
1394-SJT05-C Ser A1394-SJT05-C/A, Series A, Rev A
1394-SJT05-C Ser B1394-SJT05-C/B, Series B, Rev B
1394-SJT05-CX1394-SJT05-C/X, Series X, Rev X
Don't see your particular revision? Contact us now.
