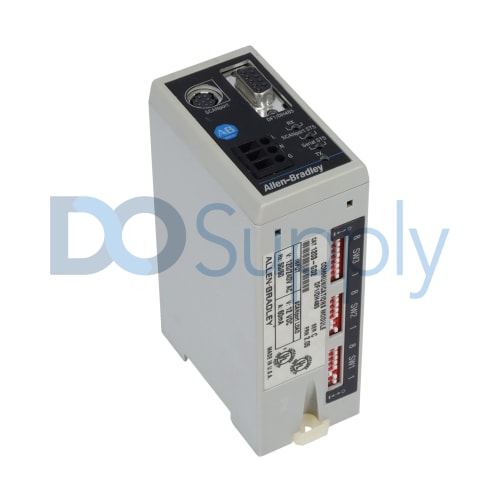

Description: The Allen-Bradley 1203-GD2 Serial Communications Module has an input voltage of 85-264 volts AC (1-Phase), and an input frequency of 45-63 Hertz. The 1203-GD2 also has a maximum input current of 35 milliamps. With respect to the SCANport load of the 1203-GD2, its load is 60 milliamps DC. The 1203-GD2 has baud rates of 110, 300, 600, 1200, 2400, 4800, 9600, and 19.2K.
Rated 4.8 with 6 reviews
top legal disclaimer
top legal disclaimer

credit cards accepted
better business bureau

In Stock Ships Today

Submit RFQ for 1203-GD2

Add more parts to quote

Description:

The Allen-Bradley 1203-GD2 Serial Communications Module has an input voltage of 85-264 volts AC (1-Phase), and an input frequency of 45-63 Hertz. The 1203-GD2 also has a maximum input current of 35 milliamps. With respect to the SCANport load of the 1203-GD2, its load is 60 milliamps DC. The 1203-GD2 has baud rates of 110, 300, 600, 1200, 2400, 4800, 9600, and 19.2K.



Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via DHL, UPS, Fedex, and TNT
Repairs: We offer repair service for the 1203-GD2.
Exchange: Exchange credit for your defective unit available.

To Speak to a sales representative for pricing & lead time:

phone

International
919-205-4392

Rated 4.8 with 6 reviews

    Technical Specifications for 1203-GD2

BrandAllen Bradley / Rockwell Automation
SeriesPanelview 300
Part Number1203-GD2
Operating Temp.0 to 50 Degrees (C)
Storage Temp.-40 to 85 Degrees (C)
Relative Humidity0 to 95% (non-condensing)
Input Voltage85 to 264V AC (1-Phase)
Input Frequency45 to 63 Hz
Input Current35mA max.
SCANport Load60mA DC
Baud Rates110, 300, 600, 1200, 2400, 4800, 9600, 19.2K
ChecksumBCC or CRC
Width1.8 in.
Height3.0 in.
Depth4.8 in.
UPC10662468286241
BrandAllen Bradley / Rockwell Automation
SeriesPanelview 300
Part Number1203-GD2
Operating Temp.0 to 50 Degrees (C)
Storage Temp.-40 to 85 Degrees (C)
Relative Humidity0 to 95% (non-condensing)
Input Voltage85 to 264V AC (1-Phase)
Input Frequency45 to 63 Hz
Input Current35mA max.
SCANport Load60mA DC
Baud Rates110, 300, 600, 1200, 2400, 4800, 9600, 19.2K
ChecksumBCC or CRC
Width1.8 in.
Height3.0 in.
Depth4.8 in.
UPC10662468286241
s

About 1203-GD2

The 1203-GD2 Serial Communications Module is an interface device designed to deliver a digital link between serial communications devices and all devices that use SCANport technology. It is available in both open and enclosed configurations and is compatible with the following Allen-Bradley devices: 1336 PLUS, 1336 FORCE, 1305 MicroDrive, SMC, and SMP. It is intended for use with devices that communicate via RS232, RS422, or RS485 hardware standards (using the DF1 protocol), and the module contains three DIP switches as follows: SW1, SW2, and SW3. Switches have the option of being set to either ON or OFF. The communications module can be set up with three mounting configurations, as follows: open style board factory installed in a drive, open style board as a separate kit, or enclosed style for panel mount or DIN rail mount.

The module has the following environmental, electrical, communications, and dimension specifications: For environmental specifications, the module must be kept within the operating temperature range of 0 to 50 Degrees (C), within the storage temperature range of -40 to 85 Degrees (C), and within the relative humidity range of 0 to 95% (non-condensing). With respect to electrical specifications, the module has an input voltage of 85 to 264V AC (1-Phase), an input frequency of 45 to 63 Hz, and an input current maximum of 35mA. The SCANport load is 60mA DC. For communications specifications, the 1203-GD2 has baud rates of 110, 300, 600, 1200, 2400, 4800, 9600, and 19.2K. The dimensions of the module are 1.8 x 3.0 x 4.8 in.
