1762-OB32T

Revisions: Ser A

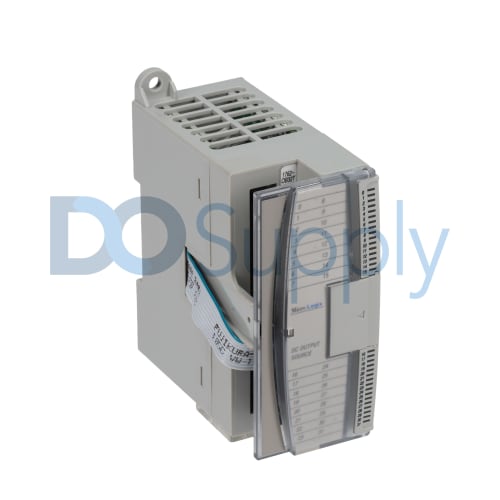

Description: The Allen-Bradley 1762-OB32T is a MicroLogix high-density Solod-sated output module. This module features Thirty-Two (32) channels in Two (2) isolated output groups of Sixteen (16) channels each group. It delivers an output voltage range of 10.2-26.4 VDC with nominal output of 24VDC. It has module has isolation rating of 1200V AC for 2 s or 1697V DC for 2 s. This module support source wiring configuration.
In Stock Ships Today
Request a quote for 1762-OB32T

Description: The Allen-Bradley 1762-OB32T is a MicroLogix high-density Solod-sated output module. This module features Thirty-Two (32) channels in Two (2) isolated output groups of Sixteen (16) channels each group. It delivers an output voltage range of 10.2-26.4 VDC with nominal output of 24VDC. It has module has isolation rating of 1200V AC for 2 s or 1697V DC for 2 s. This module support source wiring configuration.

DO Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with DO Supply's 1-year warranty

Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

disclaimer
credit cards
better business bureau
Revisions: Ser A

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via UPS, DHL, and TNT
Repairs: We offer repair service for the 1762-OB32T.
Exchange: Exchange credit for your defective unit available.
Conditions: We sell preowned surplus and refurbished parts.

To speak to a sales representative for pricing & lead time:


Rated 4.4 with 11 reviews

    Technical Specifications for 1762-OB32T

ManufacturerRockwell Automation
Module TypeSolid State output module
Minimum On-state current1 mA
Surge current2.0 A (Repeatable every 2 s @ 60 °C (140 °F) for 10 ms
Output current rating per module4.0 A @ 60 °C (140 °F)
Output current rating per group2.0 A @ 60 °C (140 °F)
Output current rating per channel0.5 A @ 60 °C (140 °F)
Output voltage range10.2-26.4 VDC
Nominal Output voltage24VDC
Channels per group:Sixteen (16) channels
No. of groupsTwo (2) Output groups
No. of OutputsThirty-Two (32) ouputs
BrandAllen-Bradley
SeriesMicroLogix
Part Number/Catalog No.1762-OB32T
Product TypeSource Output Module
Outputs32
Input Power24V DC
Operating Voltage Range10.2-26.4V DC
Heat Dissipation3.4 Watts
Wire Size22, 24, and 26 AWG
UPC10612598849922
ManufacturerRockwell Automation
Module TypeSolid State output module
Minimum On-state current1 mA
Surge current2.0 A (Repeatable every 2 s @ 60 °C (140 °F) for 10 ms
Output current rating per module4.0 A @ 60 °C (140 °F)
Output current rating per group2.0 A @ 60 °C (140 °F)
Output current rating per channel0.5 A @ 60 °C (140 °F)
Output voltage range10.2-26.4 VDC
Nominal Output voltage24VDC
Channels per group:Sixteen (16) channels
No. of groupsTwo (2) Output groups
No. of OutputsThirty-Two (32) ouputs
BrandAllen-Bradley
SeriesMicroLogix
Part Number/Catalog No.1762-OB32T
Product TypeSource Output Module
Outputs32
Input Power24V DC
Operating Voltage Range10.2-26.4V DC
Heat Dissipation3.4 Watts
Wire Size22, 24, and 26 AWG
UPC10612598849922
s

About 1762-OB32T

The Allen-Bradley 1762-0B32T is a MicroLogix controller compatible module. This module features Thirty-Two (32) solid-state output channels that delivers a nominal output voltage of 24VDC and output voltage range of 10.2-26.4 VDC. This module can be used to energize electrical loads as well as AC loads with interposing circuitry in between. Typical electrical loads wired to this module are Indicating lights, sounding devices, solenoid actuated devices and small DC motors.

The 1762-OB32T comes with individually isolated output groups. It has Two (2) output groups which is composed of Sixteen (16) channels per group. The module has an isolation rating of 1200V AC for 2 s or 1697V DC for 2 s. and 75V DC working voltage based on IEC Class 2 reinforced insulation. The module’s signal delay is identified at 0.5 ms turn On delay and 4.0 ms Turn-off delay for resistive loads. It has a maximum Off-state leakage current of 0.1 mA @ 26.4V DC and On-state voltage drop of 0.3V DC @ 0.5 A. The module’s maximum Continuous current per point is 0.5 A @ 60 °C (140 °F) while the maximum Continuous current per common is 2.0 A @ 60 °C (140 °F). The module’s maximum continuous output current per module is 4.0 A @ 60 °C (140 °F). The moduel’s surge current is rated at 2.0 A which is Repeatable every 2 s @ 60 °C (140 °F) for 10 ms). The module’s minimum load current is 1 mA.



The continuous current per point, common, and module are all different. At 60 degrees Celsius, those continuous currents are 0.5 Amps, 2 Amps, and 4 Amps. The maximum surge current of the 1762-0B32T is 2.0 Amps (repeatable every 2 s at 60 degrees Celsius (140 degrees Fahrenheit) for 10 milliseconds). The 1762-0B32T is designed to be used in a Pollution Degree 2 industrial environment at altitudes as high as 6562 feet without derating. The 1762-0B32T must be mounted in an enclosure designed to prevent injury. The enclosure must have flame-retardant properties to minimize the spread of fire, complying with a flame spread rating of 5VA, V2, V1, V0 (or equivalent) if non-metallic. The interior of the 1762-0B32T’s enclosure is accessible only by a tool.

FAQ for 1762-OB32T

How many outputs does the 1762-OB32T have?


The 1762-OB32T has 32 outputs on it.

What are the dimensions of the 1762-OB32T?


The dimensions of the 1762-OB32T are 90 x 40.4 x 87 mm (3.54 x 1.59 x 3.43 in.).

What is the weight of the 1762-OB32T Allen Bradley MicroLogix Solid State 24V DC Source Output Module?


The 1762-OB32T weighs 200 g (7.05 oz).

What is the price of a 1762-OB32T Allen Bradley MicroLogix Solid State 24V DC Source Output Module?


Submit quote request, send us an email, or call 800-730-0292 for our best price.

Does DO Supply offer repair services for the 1762-OB32T Allen Bradley MicroLogix Solid State 24V DC Source Output Module?


Yes, DO Supply offers repair services for a variety of Allen-Bradley products, such as the 1762-OB32T. For more information or to request a repair quote, please click here.

What is the recommended wire size for termination of signal wires to the module?


Allen-Bradley recommended wire size are 22, 24, 26 AWG solid or stranded copper wire rated at 90 °C (194 °F).

What is the backplane current draw of the 1762-OB32T?


The 1762-OB32T has backplane current draw of 175 mA @ 5V DC and 0 mA @ 24V DC.

What is the output voltage of the 1762-OB32T?


The 1762-OB32T has a noutput voltage range of 10.2-26.4 VDC.

Technical Description of 1762-OB32T

The Allen-Bradley 1762-0B32T is a solid-state 24 Volts DC source output module with 32 outputs. This module has an operating voltage of 10.2 to 26.4 Volts DC.

Repair Services for 1762-OB32T

Type Lead Time Price Action
Repair Service 2-4 weeks $372cartAdd to Cart

Our highly skilled technicians can repair your 1762-OB32T. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Revisions for 1762-OB32T

Please refer to the manual for more information about the 1762-OB32T such as the wiring diagrams, data sheets and migration or obsolescence details.

Revision Part # Also Known as Availability
1762-OB32T Ser A
1762-OB32T/A, Series A, Rev A Request Quote
Common misspellings:
  • l762-OB32T
  • 1762-0B32T
  • 1762-O832T
  • 1762OB32T

Reviews for 1762-OB32T

Internal Review

"The 1762-OB32T is a Thirty-Two (32) channels solid-state output channel that is part of the MicroLogix controller family. This module presents a distinct advantage of generating low noise and efficient switching compared to relay output module such as the 1762-OW16. Since this module has solid state output channels, the switching times are far more faster and silent which is ideal in environments where low noise must be generated by the device. " -DO Supply Tech

Dimensions For 1762-OB32T

Size
